Evaporator Fan
The unit uses a fan motor to pull air over the
evaporator coil and circulate it throughout the unit.
1. To access the evaporator fan motor, open and
remove freezer door (press release clips forward
on door glides to disengage door).
2. Remove ice maker (see Access Ice Maker
Module, Motor and support section). Remove
evaporator fan cover and screws. Remove
screws securing back wall.
3. Disconnect wiring and remove back wall.
Evaporator fan is now accessible.
The freezer section evaporator fan is a 120
VAC motor and can be tested from the High
Voltage Board. (Refer to High Voltage board
access).
With the main power switch OFF, remove the
Yellow wire from E2 on the HV board. Using
an Ohm reading, Apply one lead to
the yellow wire and the other to Neutral (E9).
The resistance should be approximately
30.3 ohms.
When the fan relay is energized, Line voltage
is sent to E2 and then to the Freezer fan
motor. If voltage is present and no fan
movement, replace fan motor.
4. Reverse procedure to reinstall.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.

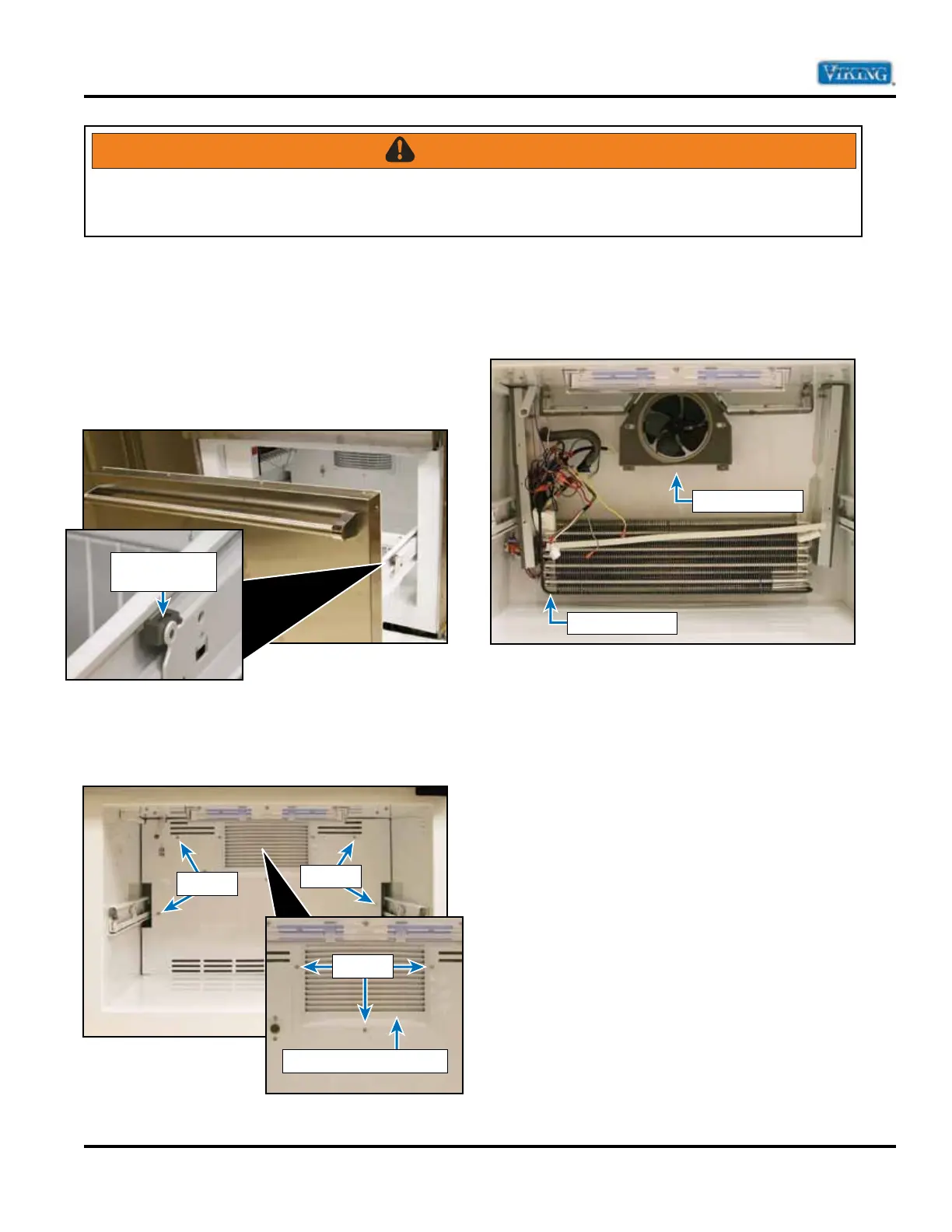

Freezer Door
Release Clip
Screws
Screws
Screws
Evaporator Fan Cover
Evaporator Fan
Defrost Heater
Service Diagnostics and Procedures–Disassembly
