To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
WARNING!
Disassembly
©2012 Viking Preferred Service 25
The 30” unit uses a fan motor to pull air over
the evaporator coil and circulate it throughout
the unit.
The 36” unit uses two fan motors to pull
air over the evaporator coil and circulate it
throughout the unit.

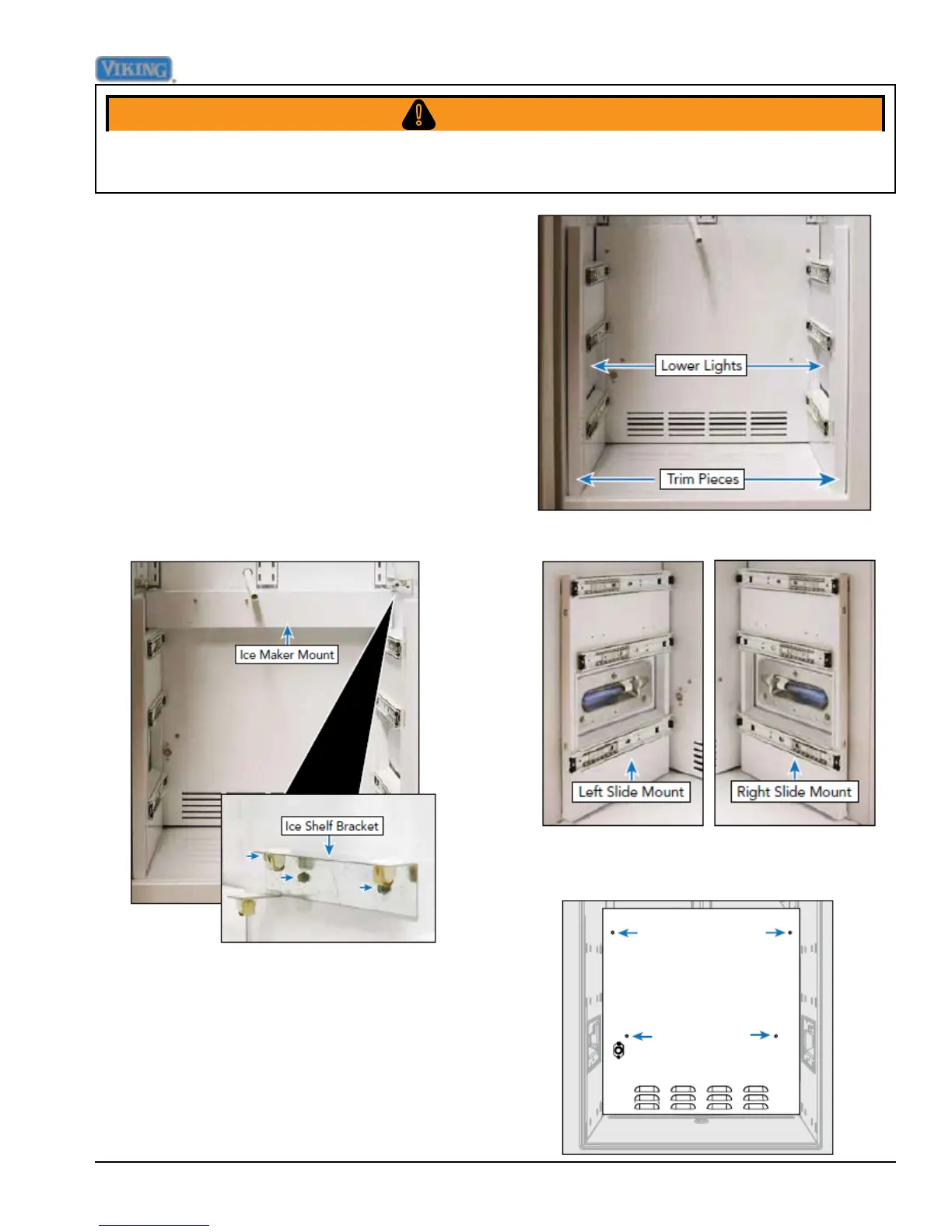

Freezer Fan
Note: The trim pieces and slide mounts
have a clip attached that engages in a
catch. To remove assembly, disengage clip
from catch.
1. To access the freezer fan,
remove all shelves, drawers,
and ice maker (see Ice Maker
section).
2. Remove lower light covers (see
lower light section) and left and
right trim pieces.
3. Remove left and right slide mounts.
4. Remove screws, remove rear cover, and
disconnect wiring.
30” Unit
