14
7509 - 7509/D Tab
EN
Secondary ID code configuration
Conguration of the secondary identication code is only required when more than one indoor station is to be called
simultaneously using the same push button or call code. Theindoor stations that are to ring simultaneously must be
associated with the same group. The “master” indoor station is congured rst by means of the “ID code conguration”
procedure described above, while the additional indoor stations in the group are congured with the secondary ID
code.
The maximum number of indoor stations that can be associated with the same group without using the SaveProg
software is 3 plus a master station.

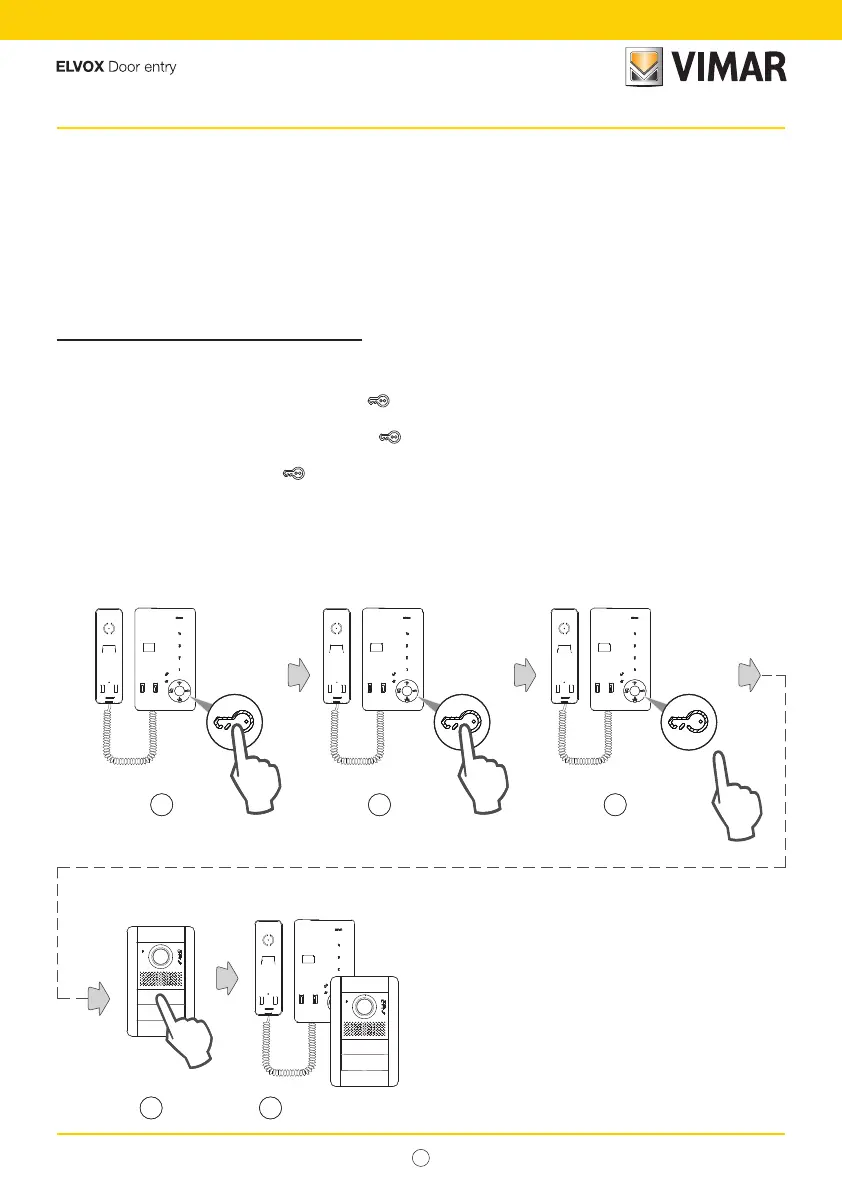

Conguration procedure (“Simplied” mode):
Raise the handset and bring it to your ear to listen to the sound feedback emitted by the entryphone during
the conguration phase.
1. Press and hold down the lock release button “
” for 6 s.
When the time runs out the indoor station will emit a “beep” (0.5 s).
1a. Continue holding down the lock release button “
”.
After 2 s more the indoor station emits two “beep” in sequence apart (duration 0.5 s).
2. Release the lock release button “ ”. When the button is released the communication will be signalled by a “beep”
with a di󰀨erent frequency.
3. Press the button on the MASTER outdoor station you wish to receive the call from, corresponding to the “master”
indoor station. (*)
4. The secondary ID code is associated with the indoor station and communication is ended. An acoustic signal
conrms the operation was successful. (**)
beep
beep
1
> 6 s
beep
+ 2 s
1a
2
beep
beep
1
> 6 s
beep
+ 2 s
1a
2
BEEP
BEEP
*
3
**
4
BEEP
BEEP
*
3
**
4
