1. Product characteristics.
Control unit for governing gear motors for swing gates at 230/120 VAC with maximum power of 300+300W equipped with built-in receiver at 433 MHz.
The control unit enables:
- customizing the space and speed of deceleration in both opening and closing phases.
- input diagnostics via LED.
2. Technical data.
Control panel SW230.T / SW230.T.120
Power supply 230 VAC 50 Hz - 120 VAC 50/60Hz
Type of use Residential and apartment blocks
Frequency of use 50%
Operating temperature -20°C / +50°C
Accessories power supply 24 VDC - 350 mA max (cumulated with the other 24VDC outputs)
Flashing light output 230/120 VAC - 25 W max
Gate open warning light output 24 VDC 2W max
Second Radio Channel Output 24 VDC - 350 mA max (cumulated with the other 24VDC outputs)
Protection fuse for 24 VDC outputs Delayed fuse T1 A
Protection fuse for 230 VAC line Quick-acting fuse F5 A
Protection fuse for 120 VAC line Quick-acting fuse F6.3 A

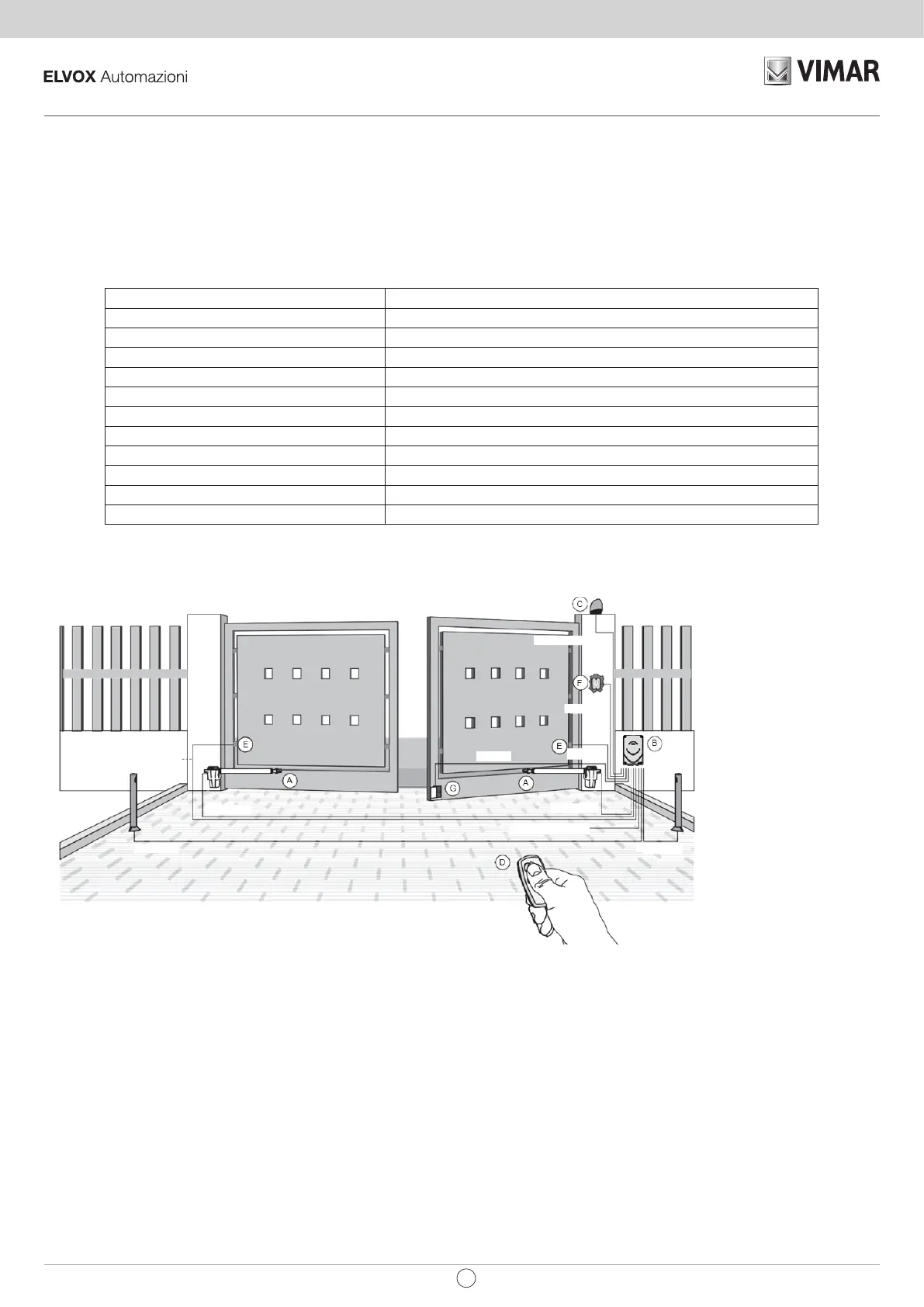

3. Preparing the wiring.
Key
A - Linear actuator
B - Control unit
C - Flashing lamp
D - Remote control
E - Pair of photocells
F - Selector
G - Electrical lock
Legenda
A - Attuatore lineare
B - Centralina di comando
C - Lampeggiante
D - Radiocomando
E - Coppia di fotocellule
F - Selettore
G - Elettroserratura
230 Vac 3x1,5 mm
2
2x0,5mm
2
2x0,5mm
2
3x0,5mm
2
2x1mm
2
2x1mm
2
+ RG59
4x1,5mm
2
4x0,5mm
2
4x1,5mm
2
4x0,5mm
2
