Vimar SW230.T - Electrical Wiring

5. Electrical wiring.
Description of terminals.
Terminal block M1
Terminal number Board marking Description
1 SEQ Push button (N.O.) for opening and closing (sequential or start)
2 STOP Push button (N.C.) for stop
3 PED Push button (N.O.) for pedestrian opening
4 SCL Input (N.C.) for closing safety devices (reopening)
5 SOP Input (N.C.) for opening and closing safety devices (momentary stop)
6 COM Common inputs and indicator light (negative)
7 +AS Positive for 24 VDC accessories power supply
8 -AS Negative for 24 VDC accessories power supply
9 +WL Positive for indicator light 24V 2W max
10 COM Common inputs and indicator light (negative)
11 +LOCK 12 VDC positive (possible 12 VAC 15W max electrical lock)
12 -LOCK 12 VDC negative (possible 12 VAC 15W max electrical lock)
13 P.IN Programmable input (N.C.)
14 +P.OUT 24 VDC positive programmable output
Terminal block M2
15 Input for earth connection
16 L Input for 230/120 V 50Hz line (PHASE)
17 N Input for 230/120 V 50Hz line (NEUTRAL)
18 FL Flashing lamp 230/120 V 50Hz 25W max (NEUTRAL)
19 FL Flashing lamp 230/120 V 50Hz 25W max (PHASE)
20 M1COM Common motor 1 winding input
21 M1CL Motor 1 closing direction input
22 M1OP Motor 1 opening direction input
23 M2COM Common motor 2 winding input
24 M2CL Motor 2 closing direction input
25 M2OP Motor 2 opening direction input

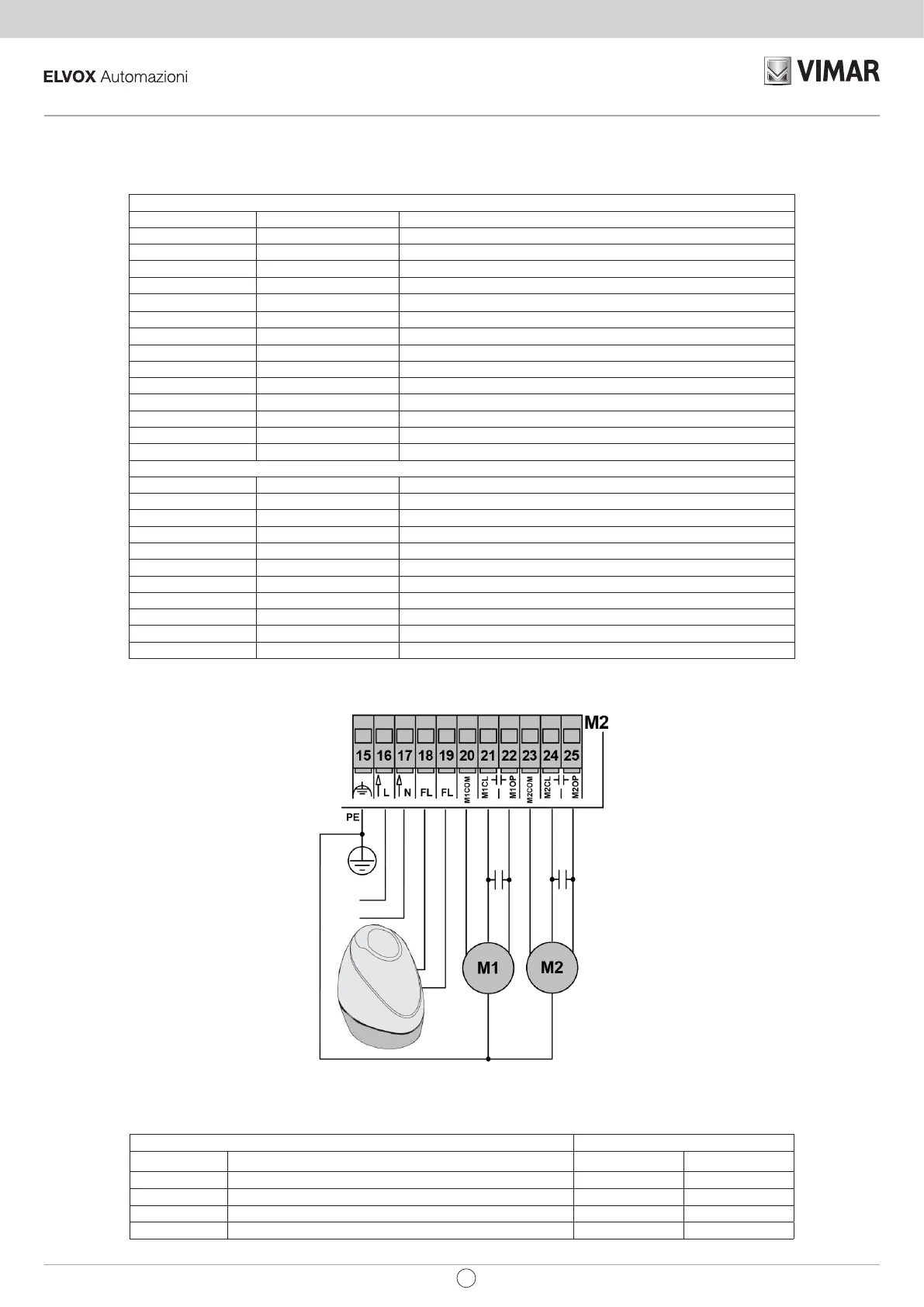

Wiring for power supply line, ashing lamp and electric motors.
CLOSING
Capacitor Capacitor
EARTH
230/120 VAC
PHASE
NEUTRAL
NEUTRAL FLASHING
PHASE FLASHING
COMMON MOTOR COMMON MOTOR
CLOSING
OPENING OPENING
The actuators are already tted with an electrical cable connected to the motor. This cable is 0.8 m long and must be connected in a specic junction
box mounted on the pillar, if the control unit cannot be reached directly.
Function of the actuator cables Terminal on board
Colour Description Motor 1 Motor 2
Yellow-Green Earth connection 15 PE 15 PE
Grey Common 20 M1COM 23 M2COM
Brown Motion 2 (Door closing movement, rod extension) 21 M1CL 24 M2CL
Black Motion 1 (Door opening movement, rod withdrawal) 22 M1OP 25 M2OP
23
SW230.T / SW230.T.120
EN
