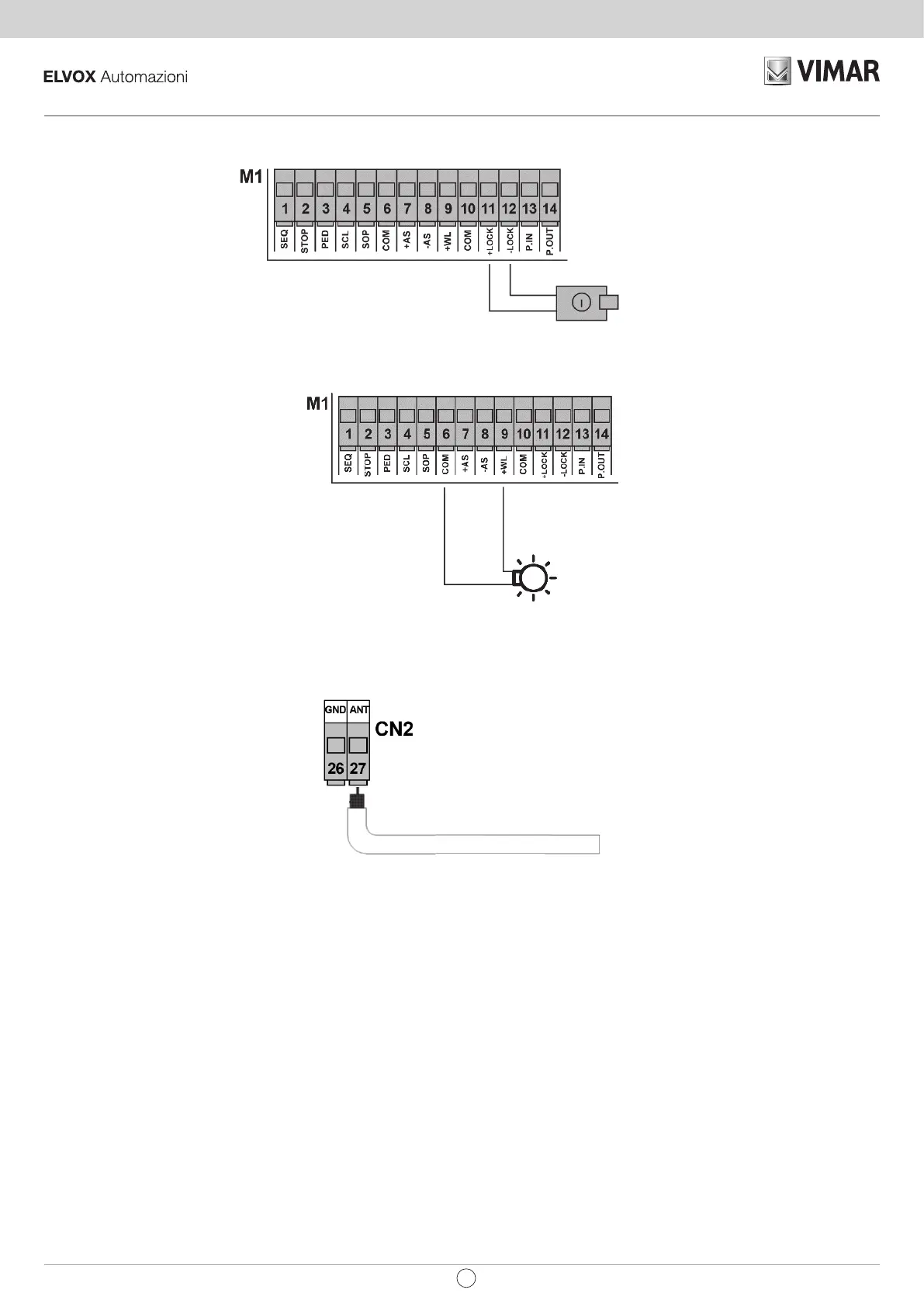

Connecting the electric lock.
Electrical lock 12VAC 15VA
Connecting the Gate open Warning Light.
Antenna connection.
A 17 cm rigid wire is supplied, which acts as an antenna and should be wired to terminal 27 ANT.
27
SW230.T / SW230.T.120
EN
