The project engineering is separated into 3 parts:
• Project engineering of the CPU
• Project engineering of the plugged modules
• Project engineering of the PG/OP channel
• Start the hardware configurator from Siemens with a new project and
insert a profile rail from the hardware catalog.
• Place the following Siemens CPU at slot 2:
CPU 313C-2DP (6ES7 313-6CF03-0AB0 V2.0)
DI DO DIO AI AO
CPU 313SC
Module
DI16/DO16
Slot
Count
CPU 313C-2 DP
DP
1
2
X2
2.2
2.4
3
The modules at the bus are configured with the following approach:
• Include your System 300 modules at the bus in the plugged sequence
starting with slot 4.
• Parameterize the CPU res. the modules where appropriate. The
parameter window opens by a double click on the according module.
CPU 313SC
DI DO DIO AI AO
4
5
6
7
8
9
10
DI
DO
DIO
AI
AO
Module
DI16/DO16
Slot
Count
CPU 313C-2 DP
DP
1
2
X2
2.2
2.4
3

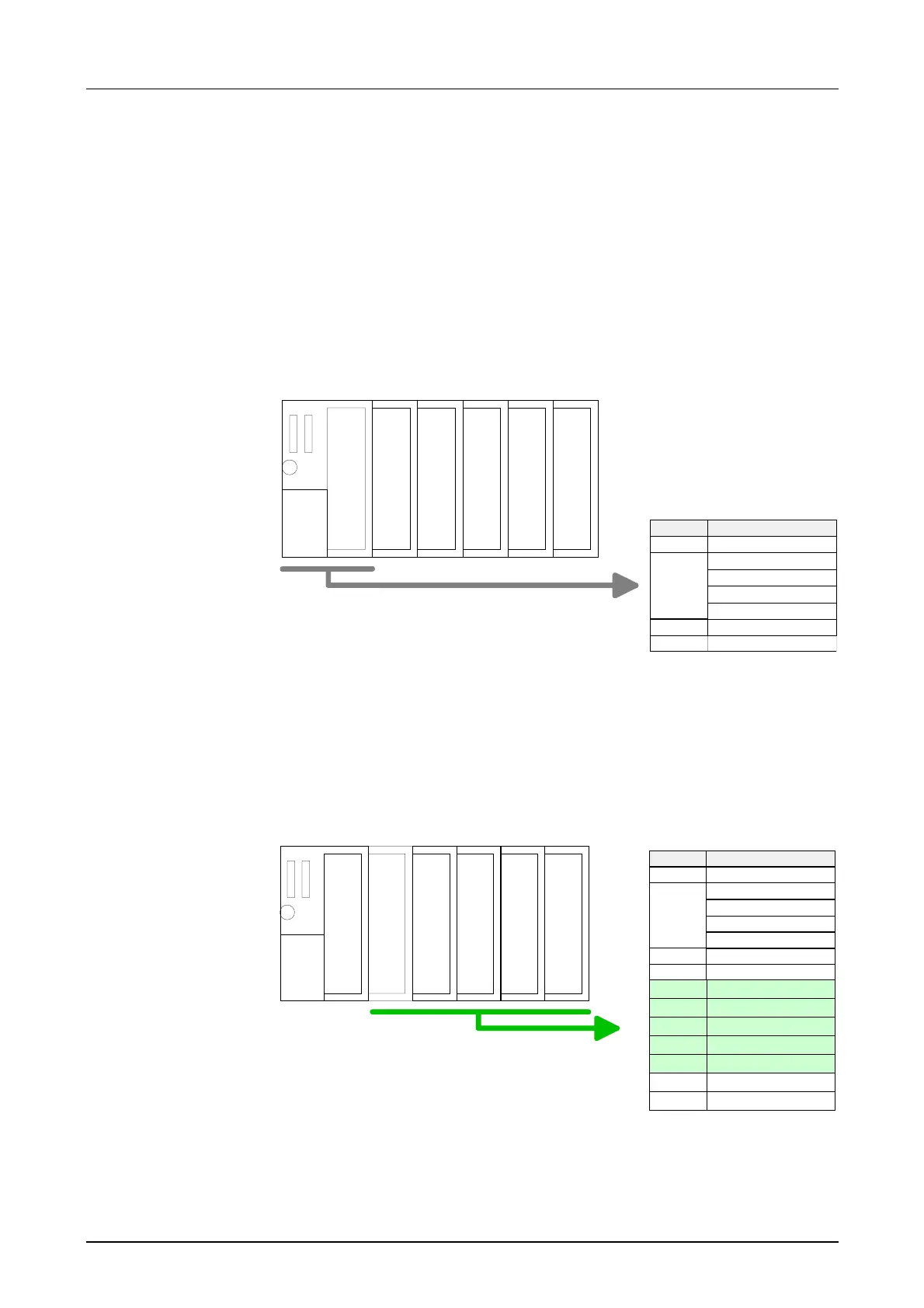

Steps of the
project
engineering
Project
engineering CPU
as CPU 313C-2DP
Configuring of the
modules at the
bus
