Manual VIPA System 300V Chapter 6 Deployment CPU 31x with TCP/IP
HB130E - CPU - Rev. 11/50 6-51

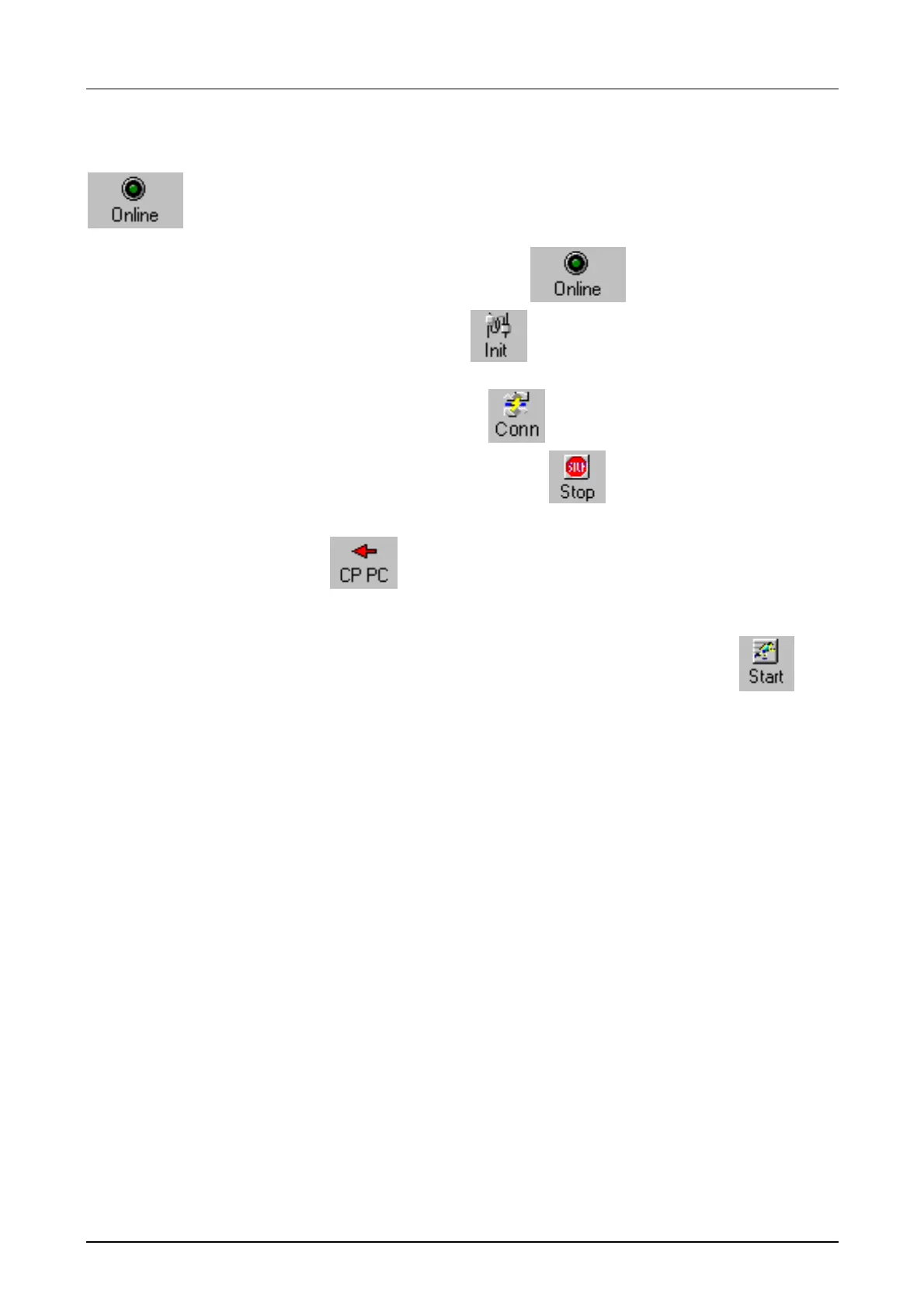

The transfer via Ethernet is proceeded in the online function as follows
when this is the first project:
• Connect the CPU with the Ethernet.
• Turn on the power supply of your CPU. After app. 30s, the CP has been
booted.
• Activate the online functions via
.
• Set "IP-Protocol" under
and give the IP address 172.16.192.11.
Every CPU 31xNET from VIPA is delivered with this IP address.
• Establish a connection via
.
• Set your CP in software STOP via
.
• Choose the station "CPU 31xNET" network window.
• With
the transfer into the CP starts. If you get a NCS file
request, you missed the last step! Select it now and start the transfer
again.
• As soon as the transfer is finished, you reboot the CP with
. This
takes about 20s.
Now the CP is on the Network, with the assigned IP address.
