Viscount Concerto III - Operating Manual

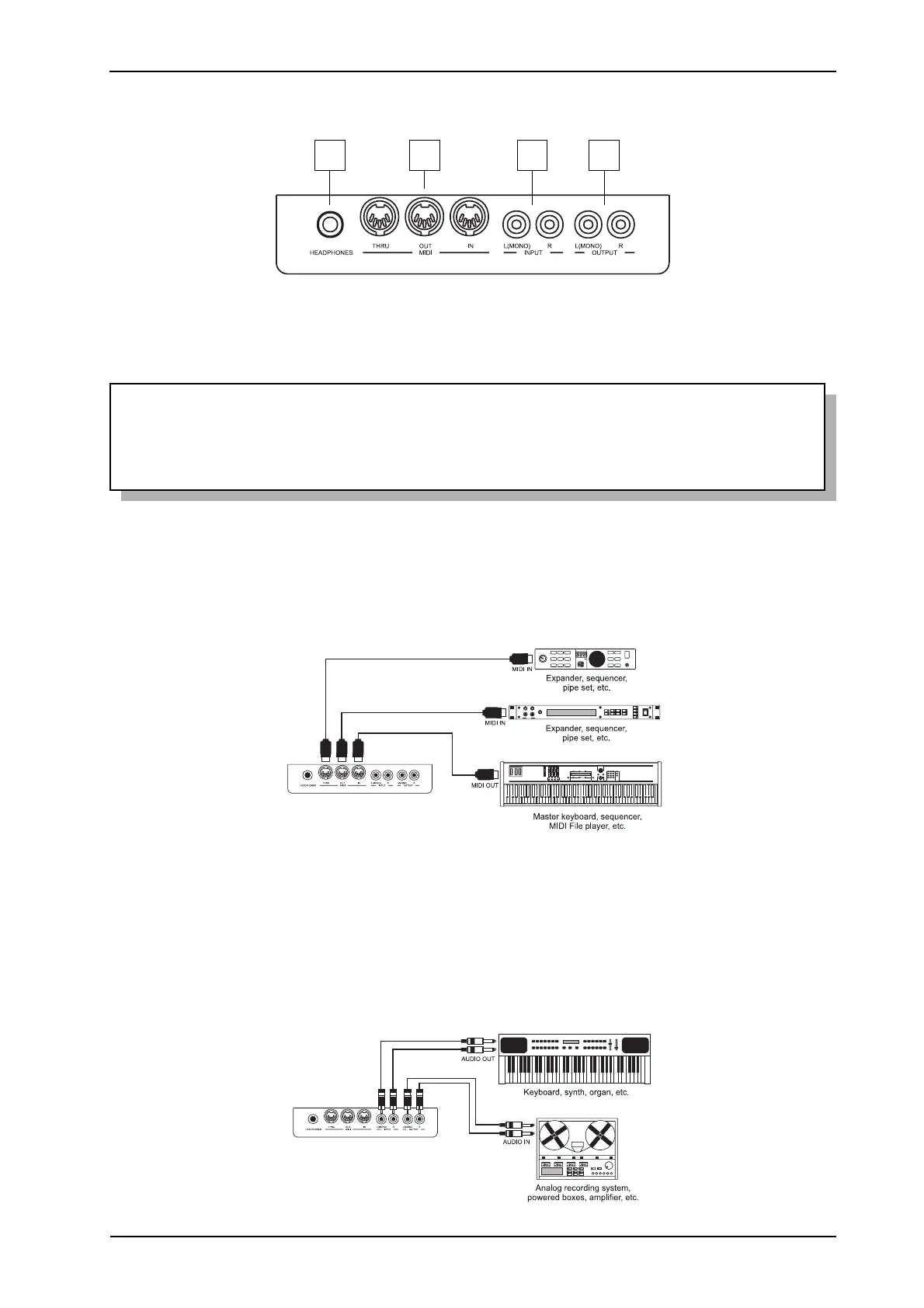

2.5 THE CONNECTIONS UNDERNEATH THE MANUALS
34 35 36 37
34. [HEADPHONES] connector: Jack socket to which a headphone set can be connected.
With headphones connected, the organ’s internal amplification is cut off.
N.B.:
To obtain the best results from the [HEADPHONES] output, phones with impedance of at
least 16 Ω should be used.
35. [MIDI] connectors: five-pin DIN connectors for connection of instruments with MIDI interface.
The [IN] connector allows receipt of MIDI messages generated by remote MIDI sources, the
[OUT] connector transmits the MIDI messages generated by the Concerto III, and the [THRU]
connector transmits exactly the data received at the [IN] connector.
36. [INPUT] connectors: RCA input connectors which allow other instruments to be played using
the organ’s internal amplification. If the source is monophonic use the L(MONO) connector
only.
37. [OUTPUT] connectors: RCA connectors for output of the unamplified signal, for connection
of optional amplified speakers, remote amplification systems or recording systems. To use a
monophonic signal, connect to the [L/(MONO)] connector only.
