APPENDIX A: Transducer Connector Wiring Techniques

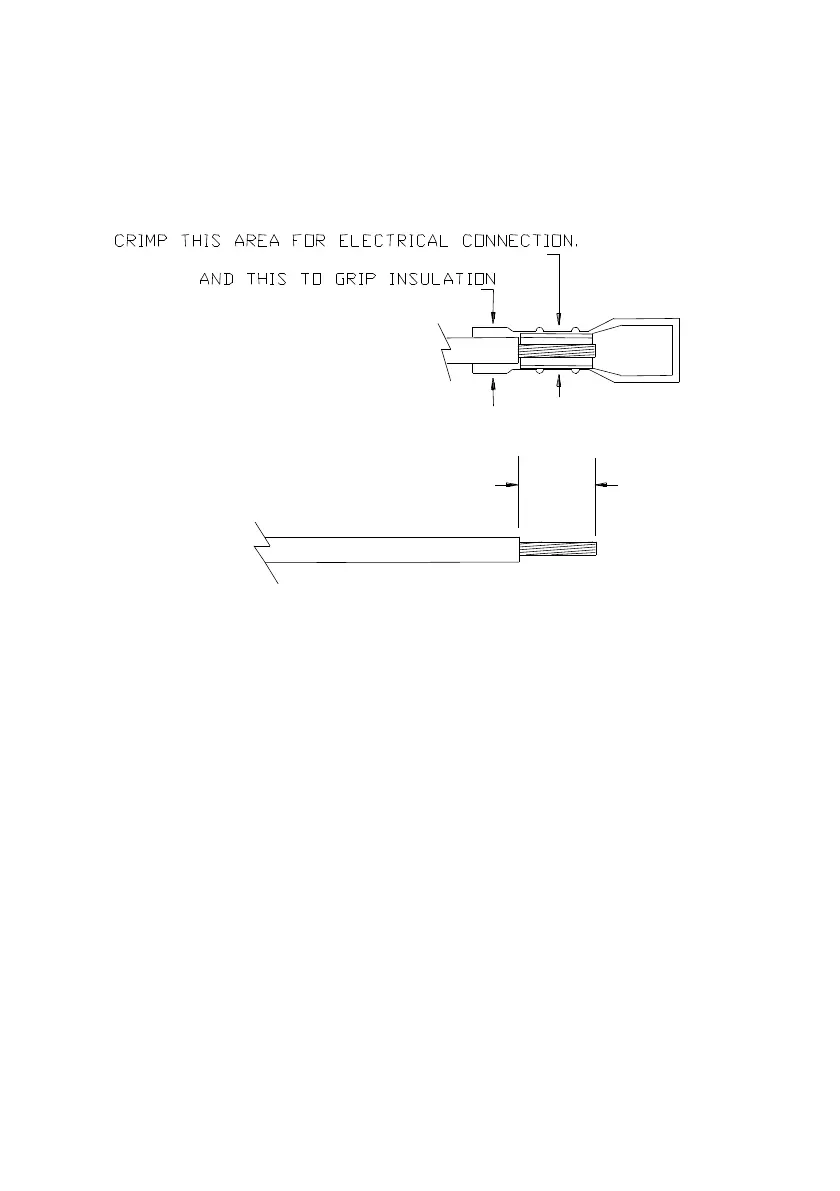

Lug Terminal Wiring Technique
Notes:
1. Only use the recommended crimping tool or equivalent.
See APPENDIX G for Lug Terminal crimp tool.
2. FULLY insert wire so it goes slightly beyond metal barrel
(look inside to insure this relationship).
3. Insure wires are secure after crimping by pulling on them.
IMPORTANT:
Wire should be stripped to 3/8 inch.
3/8 “
