4. POWERMASTER-30 G2 INSTALLATION
D-304762 PowerMaster-10/30 G2 Installer's Guide 25
3. Insert the power cable through the desired wiring
channel (A). Route it to the power supply unit (E) and
remove the safety cover (D). Connect the 2 wires of
the power cable to the power supply terminal block
(F) with a screwdriver. Fasten the screws tightly.
Fasten the power cable by its clamp (B or C) and
close the safety cover (D).
4. Connect the power supply output cable (G) to the
power connector (H) in the front panel.
E.
Power supply unit
F. Power supply terminal block
G. Power supply output cable
H. Power connector
(*) Do not route wiring in this area, to enable proper
closure of the control panel.
I. Cable clamp.
Figure 4.10a – Power Connection For Internal Power Supply

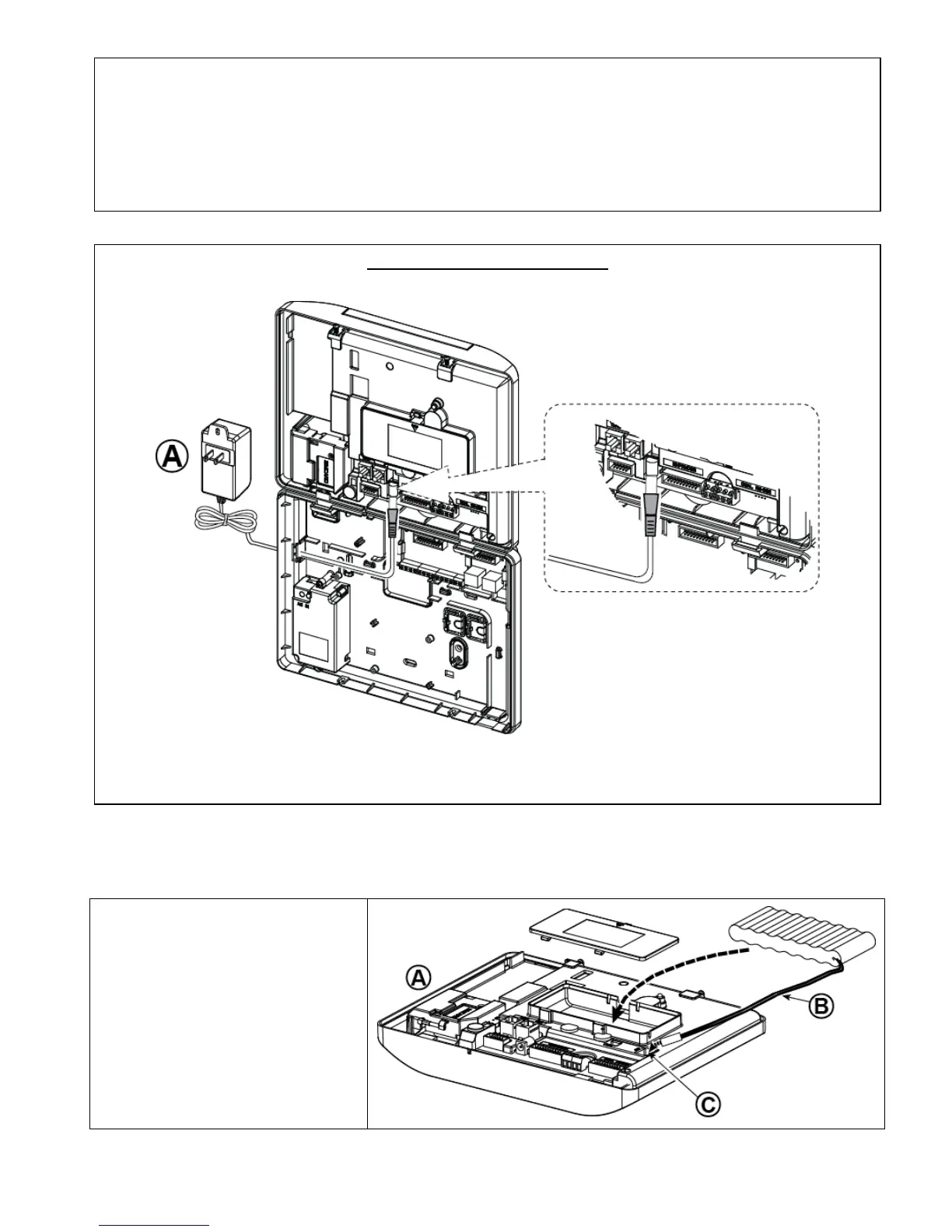

EXTERNAL POWER CONNECTION
Connect the power adaptor to the front panel power connector.
A. Power supply manufacturer LEADER ELECTRONICS. For UL installations, model no. MU15-R125120-A1, p/n
MU15-R1125-A00S. For ULC installations, model no. MU15- R125120-A1, p/n MU15-R1125-A01S.
Figure 4.10b – External Power Connection
4.11 Battery Insertion
Open battery compartment cover.
Insert one 6-battery pack or 8-battery
pack and connect its connector as
shown in Figure 4.11.
A. Front unit
B. Battery cable
C. Battery cable connector
Figure 4.11 – Battery Insertion

Visonic PowerMaster-10 G2 Specifications

General

Model	PowerMaster-10 G2
Category	Security System
Wireless Technology	PowerG
Remote Control	Yes
Event Log	1000 events
Communication	GSM, PSTN, IP
Frequency	868 MHz
Type	Wireless
Operating Temperature	-10°C to +55°C
Humidity	Up to 85% non-condensing
