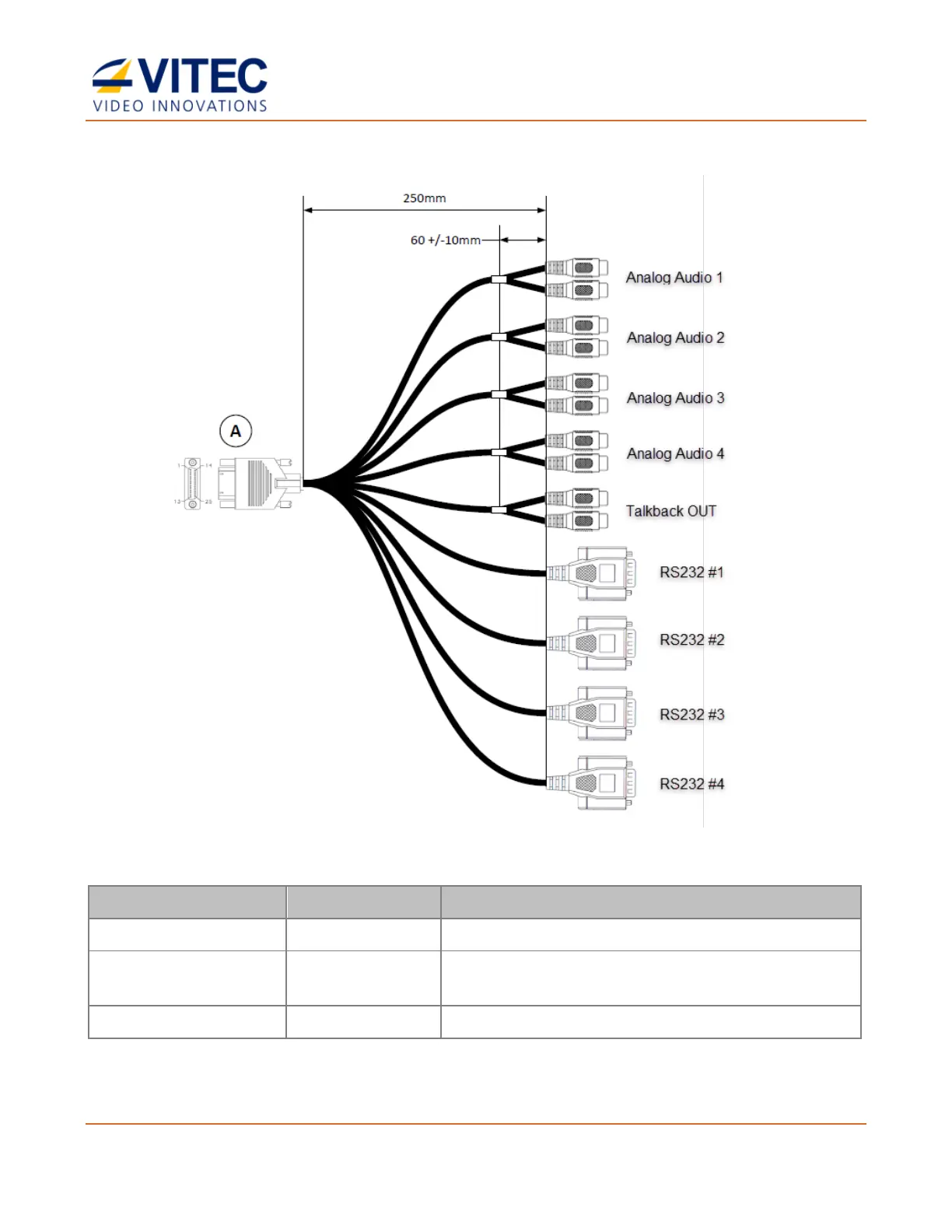

MGW Diamond Breakout Cable
Connector Label
Connectors
Description
Analog Audio [1..4]
RCA Female
Unbalanced Stereo Analog Audio inputs (line level)
Talkback OUT
RCA Female
Unbalanced Stereo Analog Audio output for
Talkback (line level)
RS232 #[1..4]
DB9
Serial for KLV/STANAG data ingest
