Vitec Multimedia MGW Diamond User Manual

MGW Diamond Multi-Channel HEVC and H.264 Portable Encoder
User Manual, Version 1.6 10

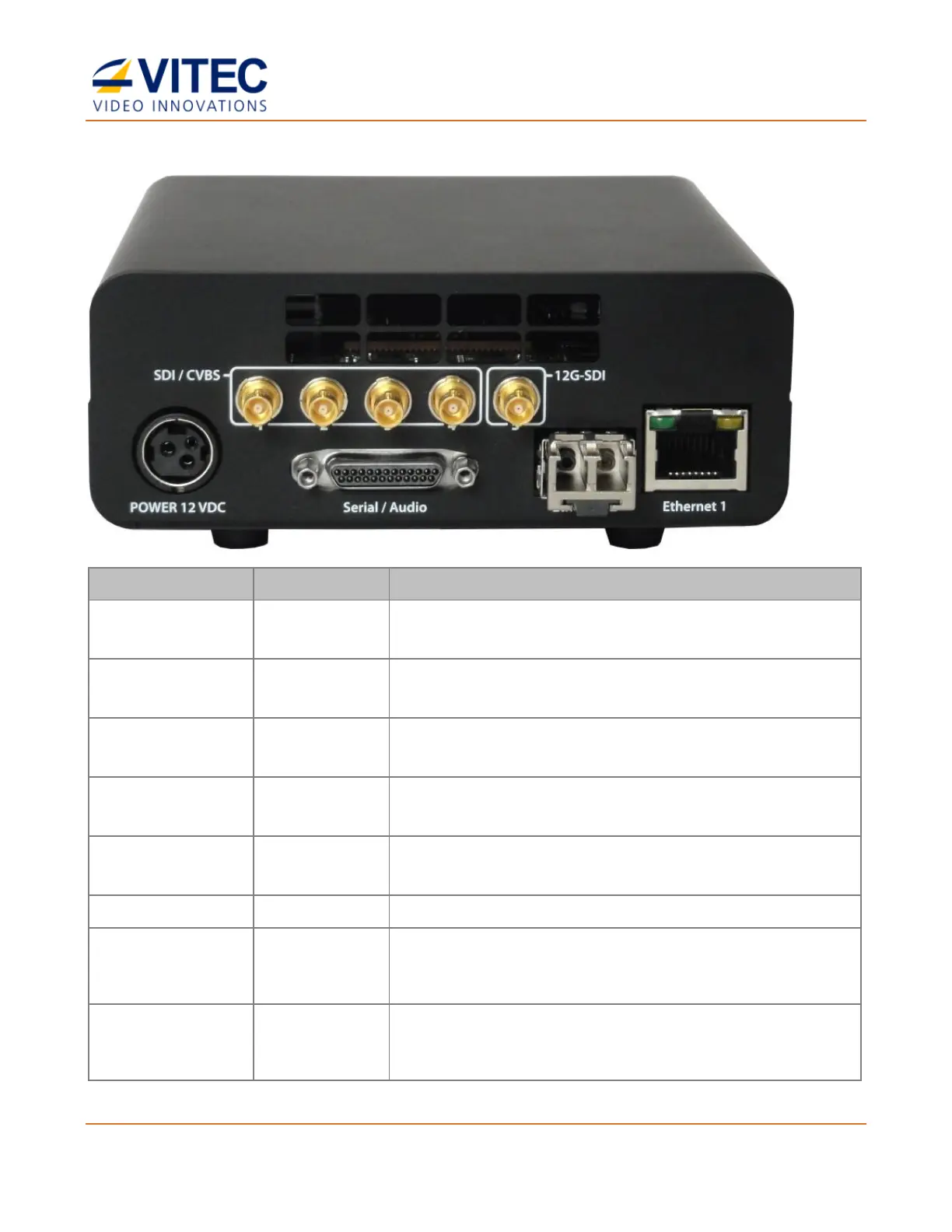

MGW Diamond Encoder Rear Panel
Label
Connectors
Description
SDI/CVBS 1
BNC
SDI input (3G/HD/SD) or Composite input.
3G-SDI is compliant with SMPTE 425-A
SDI/CVBS 2
BNC
SDI input (3G/HD/SD) or Composite input.
3G-SDI is compliant with SMPTE 425-A
SDI/CVBS 3
BNC
SDI input (3G/HD/SD) or Composite input.
3G-SDI is compliant with SMPTE 425-A
SDI/CVBS 4
BNC
SDI input (3G/HD/SD) or Composite input.
3G-SDI is compliant with SMPTE 425-A
12G-SDI
(Not enabled)
BNC
SDI input (12G/3G/HD/SD) input.
12G-SDI is compliant with SMPTE 2082
Ethernet 1
RJ-45
Gigabit Ethernet for streaming and management.
Ethernet 2
SFP Cage
Gigabit Ethernet port for either RJ45 or Fiber connectivity
over SFP. Contact VITEC technical support or your sales
representative for a list of compatible SFP adaptor.
Serial/Audio
(not enabled)
Multi-pin
connector
Breakout cable for unbalanced audio inputs (x4 stereo),
KLV/STANAG serial data ingest (x4 RS232), and Talkback
audio.
