MGW Diamond Multi-Channel HEVC and H.264 Portable Encoder
User Manual, Version 1.6 27
The Channels Page
The Channel section provides a one-page view dedicated to channel configuration. The
configuration is designed in three main categories:
• Source - select the input video and audio sources to be used for the channel.
• Processing - set the encoding video and audio parameters for the channel as required by
the application.
• Target - Define the transport characteristics of the output stream.
• Each main channel (one to four) can be split into a primary and a secondary channel. The
maximal encoding resolution of the primary and secondary channel is 1080p60.

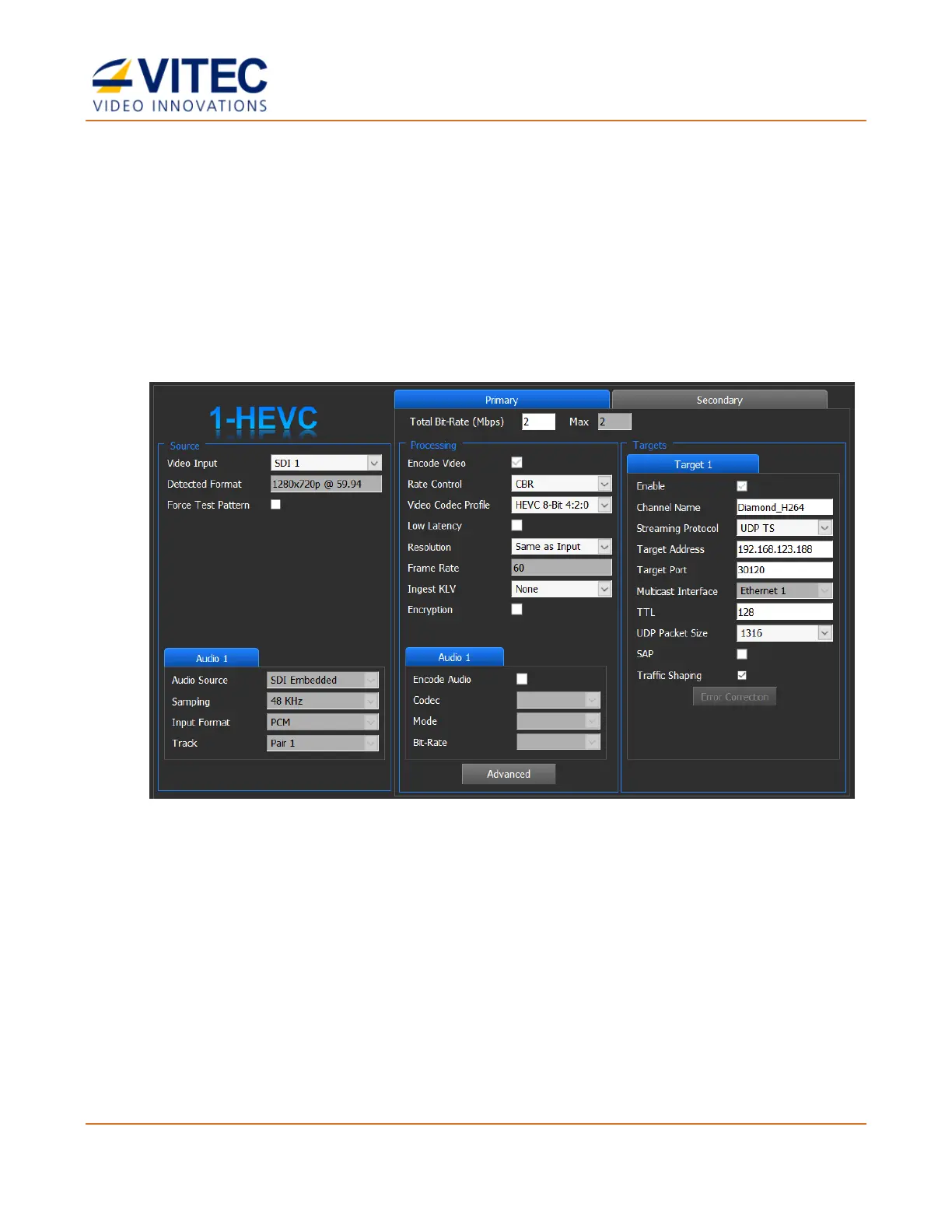

Figure 4-3: The Channels page
