MGW Diamond Multi-Channel HEVC and H.264 Portable Encoder
User Manual, Version 1.6 23
The Dashboard Page
The Dashboard page is the main page displaying the appliance's view and displays network
information for both network interfaces as well as an overall traffic summary.

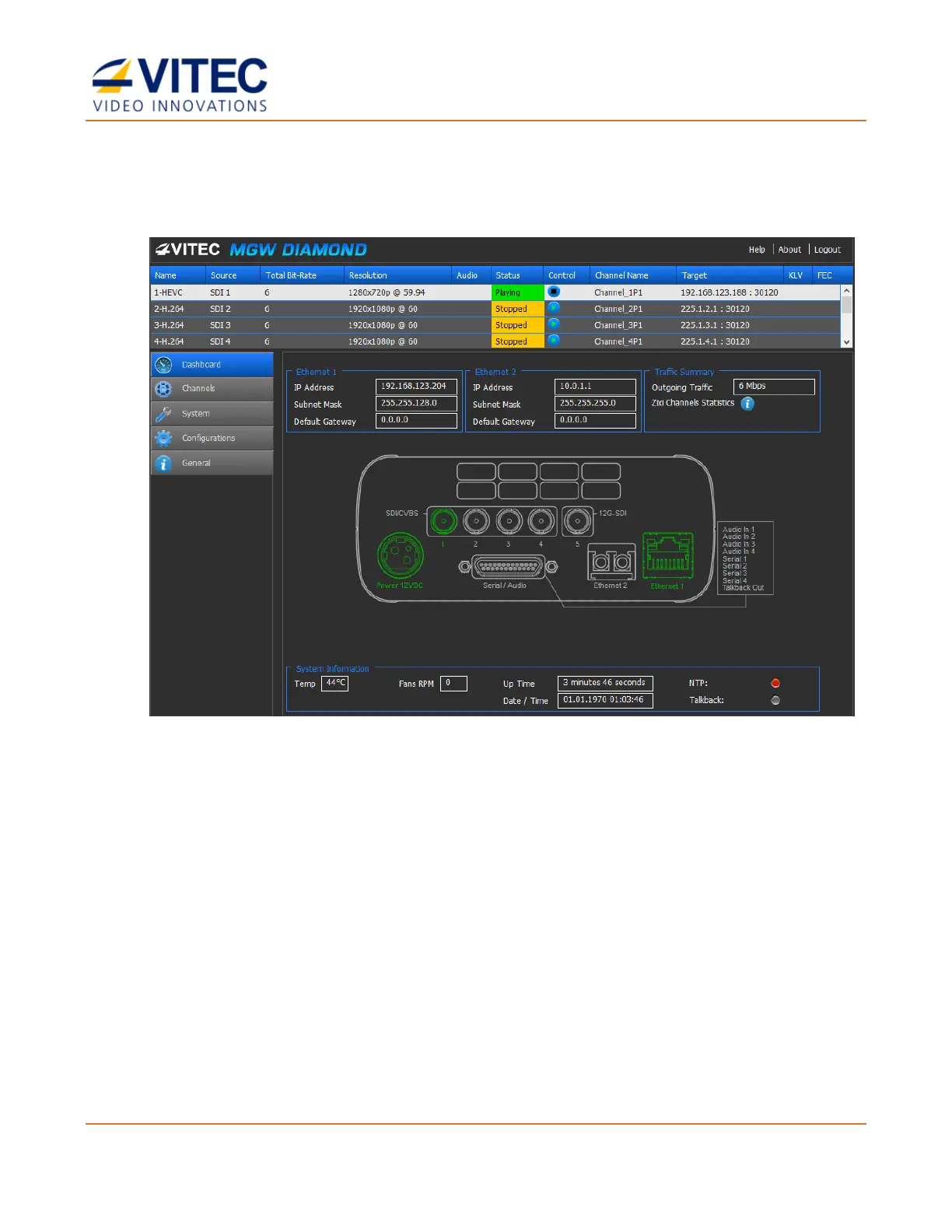

Figure 4-2: The Dashboard page
Active interfaces appear in green. Idle or disconnected interfaces appear gray (see figure above).
