3.3 Installation Example

Mechanically the Adept Validator is mounted in two ways:

1. Onto a pole with a cradle.

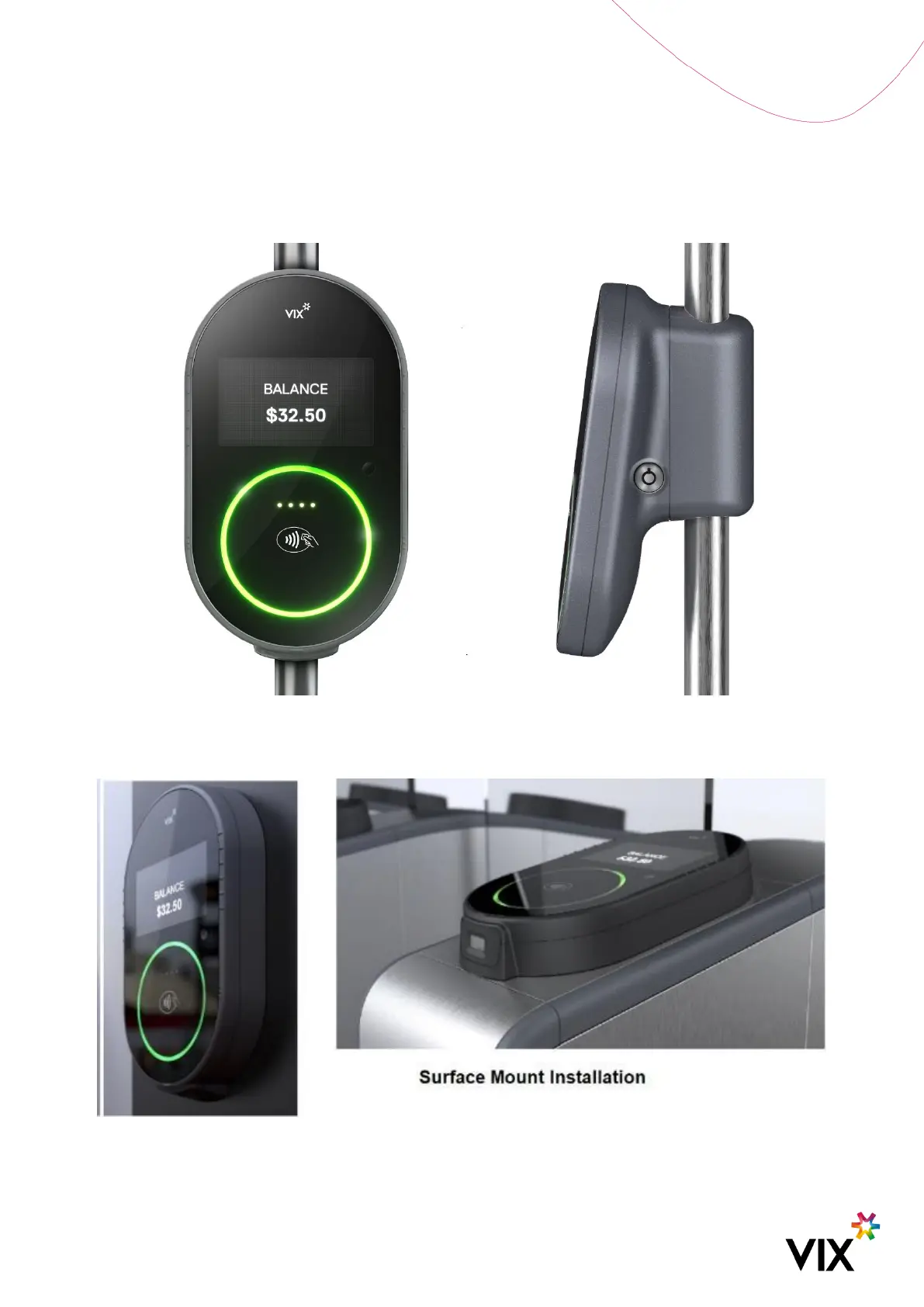

Figure 3: Picture of a Pole-Mounted Adept Validator

2. Onto a surface (e.g. Gates at train stations or TVMs (ticket vending machine)).

Figure 4: Picture of a Surface-Mounted Adept Validator

Refer to 6.7 for the details of the cut-out required on the surface.
