To prepare for installation, the cradle has to be disassembled into the below three main parts – cradle front, cradle
rear and external cover, by following steps 2 to 4 in section 6.6.

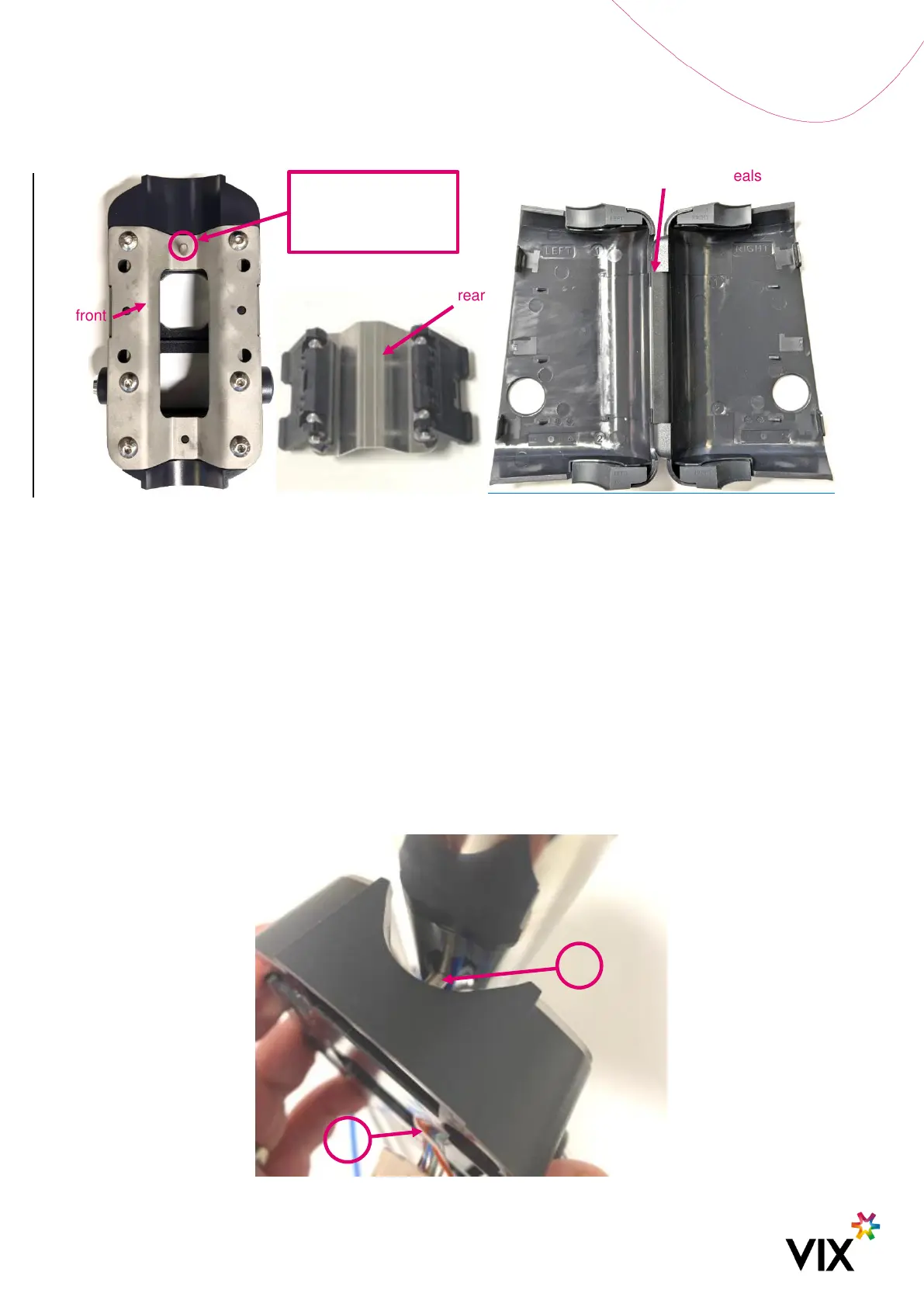

Figure 16: 3 Cradle Main Parts
The cradle plates are manufactured from 304 Stainless Steel and anodised aluminium. Check that the plates have
no corners or sharp edges that may present a hazard to operators or installers.
6.3 Cradle Mounting Instructions
1. Carefully bring out the connectors and cables from the pole cut-out. Ensure there is sufficient slack for the
Adept Validator connection and mounting.
2. Hold the cradle front with the locating pin aligning with the locating hole on the mounting pole, feed the
cables through the cradle front centre aperture.
3. Fit the cradle front to the pole, by inserting the locating pin into the locating hole. Hold the cradle front on
the pole until the next step is complete.
