DPU-00084

Revision 2.3

Page 25 of 39

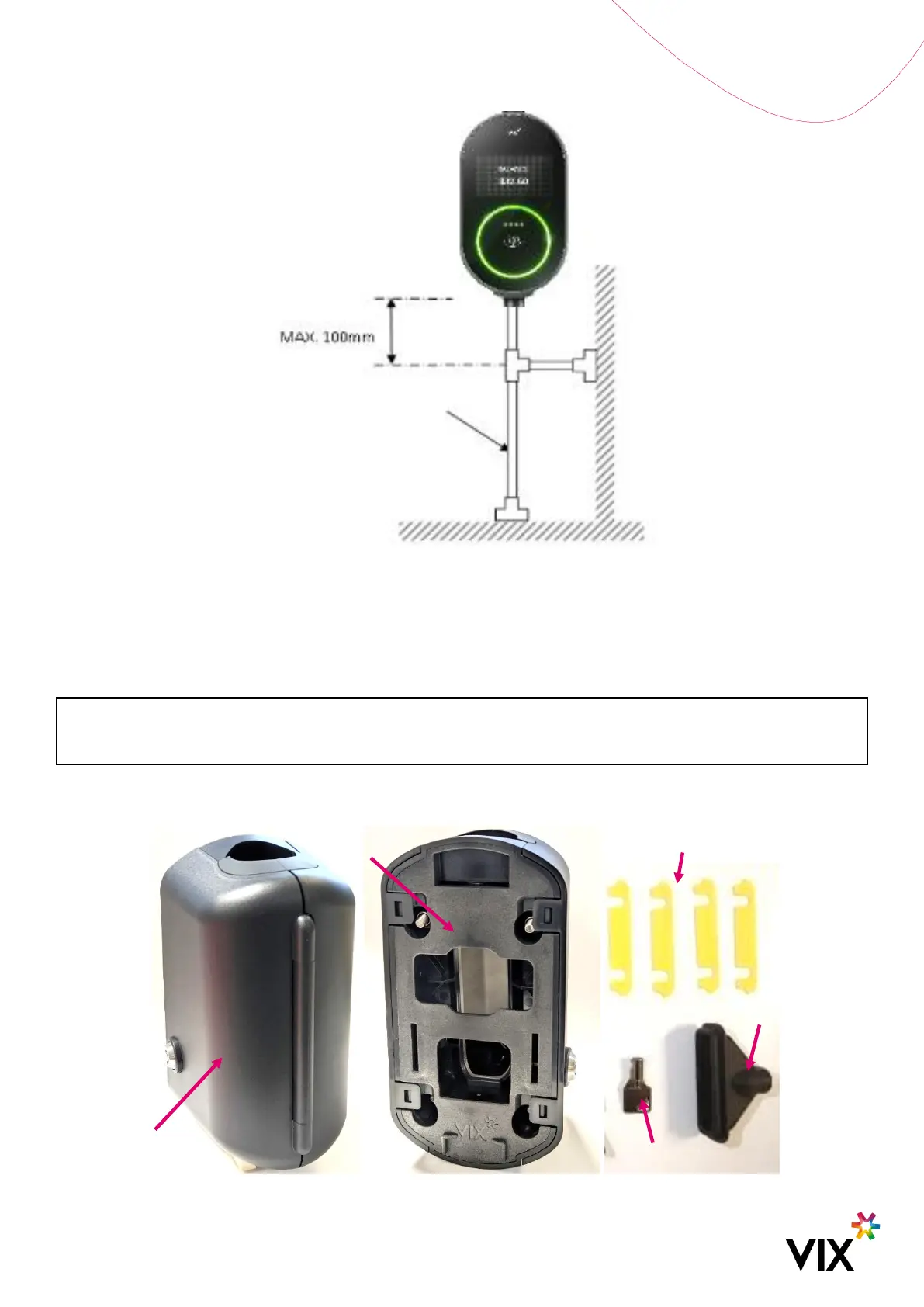

Figure 14: Adept Validator Preferred Pole Mounting Bracing

6.2 Cradle Kit

The cradle components are delivered as a kit (CRADLE-ADEPT-x-Ryy) designed for a standard 32mm pole.

Note: If a different diameter pole is to be used, the size needs to be informed to VIX prior to order so that

available accessories could be recommended. For a 30mm or 35mm pole, extra parts could be

obtained from VIX to suit: CRADLE-KIT-30 or CRADLE-KIT-35.

The cradle kit comes with the below 4 components.

Figure 15: Assure Adept Validator Cradle Kit

Cradle –

Front View

Cradle –

Rear View

Additional Shims for a firm fit

Protective Rubber Boot

Cradle Unlock Key
