Figure 17: Cradle Front Placement

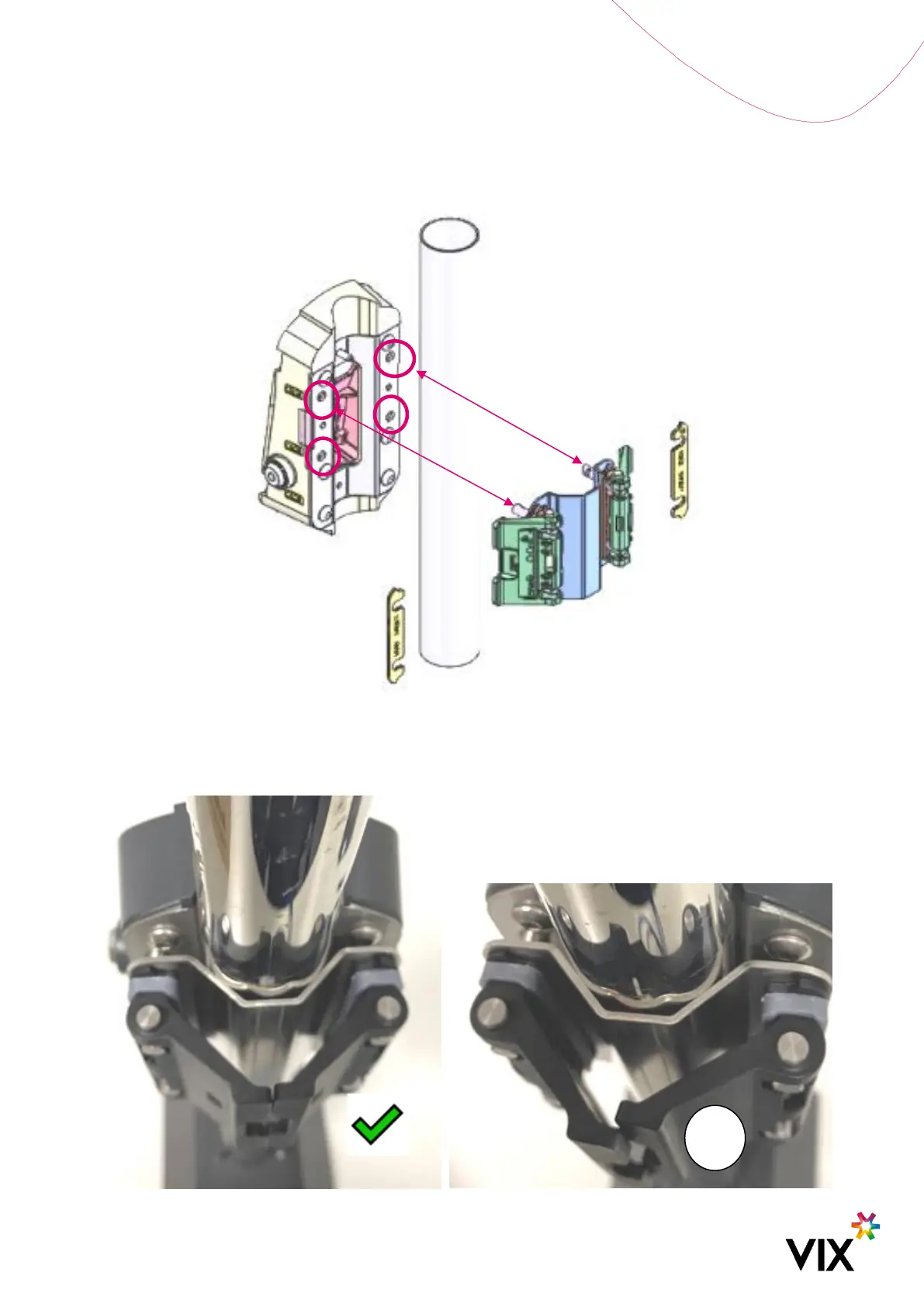

4. Insert the 4 pins on the cradle rear into the 4 holes on the cradle front. Press the 2 halves together, they

should lock into place with a click.

Figure 18: Joining Cradle Front and Cradle Rear

5. Close both cradle mount flaps until they meet evenly, this locks the cradle to the pole (They should not

overlap).
