DPU-00084
Revision 2.3
Page
39
of
39
Appendix C
Pole Cut-
out

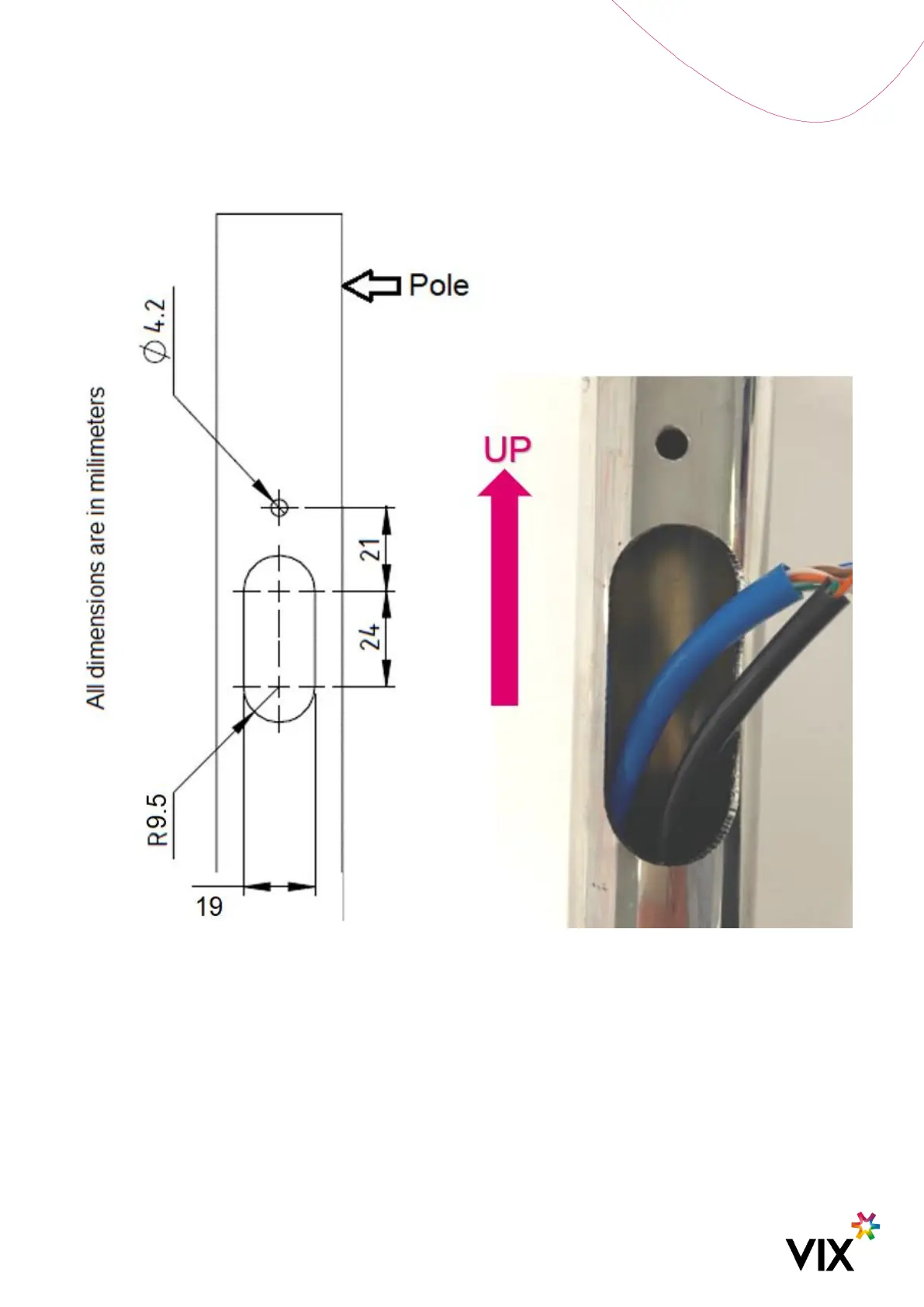

Recommended cut-
out for the p
ole is shown below.
Figure
39
: Pole Cut-
out
38
Table of Contents
Table of Contents
4
Safety Precautions
7
Warnings and Cautions
7
EMC and Safety Standards Applied
7
FCC RF Radiation Exposure Statement
7
FCC Compliance Statement
8
ISED Compliance Statement
8
Safety
9
Introduction
10
Purpose
10
Scope
10
Figure 1: Picture of Adept Validator
10
References
11
Glossary/Acronyms
11
Table 1: Valid Devices
11
Table 2: Terminology
11
Installation Overview
12
System Architecture
12
Power Supply
12
Figure 2: Adept Validator Typical System Architecture
12
Table 3: Power Supply Specification
12
Installation Example
13
Figure 3: Picture of a Pole-Mounted Adept Validator
13
Figure 4: Picture of a Surface-Mounted Adept Validator
13
Accessories
14
Sams / SIM / Usd
14
Figure 5: Picture of Adept Validator Internal
14
Back-Up Battery
15
1-Wire Assembly (CBL0429)
15
Figure 6: 1-Wire Assembly Connection
15
Wiring and Terminations
16
Example Vehicle Wiring Diagram
16
Figure 7: Example Vehicle Wiring Diagram
16
Table 4: Cable Connection Mapping
17
Connector Termination
18
Figure 8: Adept Validator Rear Connectors
18
Figure 9: RF Connector Kit
19
Table 5: Mating Female Connector Housings 1 & 2
19
Table 6: Mating Female Crimps for Connectors 1 & 2
19
Table 7: Mating Female Connector 3
19
Circuit Breakers
20
Cable Recommendations
20
Figure 10: Assembled RF Connector
20
Table 8: Cable Recommendations
20
Power Supply Cable
21
Requirements
21
Table 9: Maximum Cable Length Recommendations
21
Hierarchy for Power Supply
22
Length Versus Size
22
Figure 11: Typical Bus Power Supply Circuit Breaker and Cable Rating
22
Current Capacity
23
Vehicle Ground Terminations
23
Vehicle Ground Termination Checks
23
Hot Plugging
23
Figure 12: Cable Current Capacity Chart
23
Table 10: Cable Length
23
Pole Mounting
24
Adept Validator Positioning
24
Figure 13: Adept Validator Positioning - Height
24
Cradle Kit
25
Figure 14: Adept Validator Preferred Pole Mounting Bracing
25
Figure 15: Assure Adept Validator Cradle Kit
25
Cradle Mounting Instructions
26
Figure 16: 3 Cradle Main Parts
26
Figure 17: Cradle Front Placement
27
Figure 18: Joining Cradle Front and Cradle Rear
27
Figure 19: Correct and Incorrect Position of Closed Cradle Arms
28
Figure 20: Adept Validator Cradle Mount Shims
28
Figure 21: Seals Position on External Cover
29
Figure 22: Adept Validator Cradle Mount Cover
29
Validator Mounting Instructions
30
Figure 23: Rubber Boot Installation
30
Figure 24: Adept Validator Cable Connections
30
Figure 25: Adept Validator Mounting on Cradle
31
Figure 26: Device Locking
31
Validator Demounting Instructions
32
Figure 27: Device Unlocking
32
Figure 28: Adept Validator Removal
32
Cradle Demounting Instructions
33
Figure 29: Cable Disconnection
33
Figure 30: Rubber Boot Removal
33
Figure 31: External Cover Removal
34
Figure 32: Opening Cradle Arms
34
Figure 33: Cradle Front and Rear Separation
35
Figure 34: Cradle Front Removal
35
Cradle Covering
36
Figure 35: Cradle Covering
36
Figure 36: Cradle Cover Locking
36
Appendix A Cut-Out for Surface Mount Adept Validator
37
Figure 37: Cut-Out for Surface Mount Adept Validator
37
Appendix B Dimensions and Weight
38
Figure 38: Dimensions and Weight
38
Appendix C Pole Cut-Out
39
Figure 39: Pole Cut-Out
39
