DPU-00084

Revision 2.3

Page 32 of 39

6.5 Validator Demounting Instructions

Caution: The unit connectors present a low risk of accidental short circuit or electric shock if the unit is

removed when powered, hence it is recommended the power is turned off prior to disconnection.

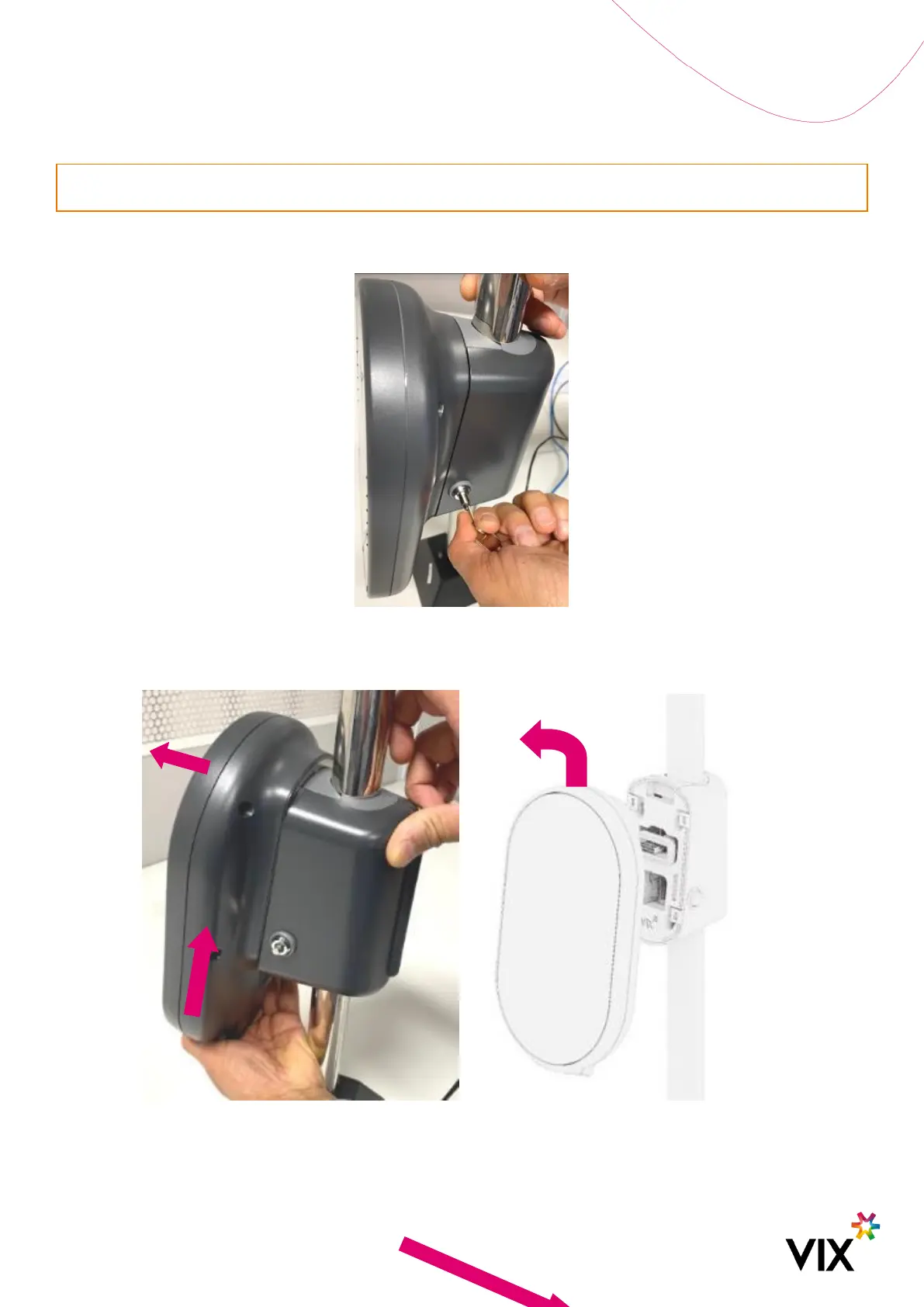

1. Unlock the cradle lock by pushing in the key slightly and rotating anti-clockwise or clockwise until the lock

button bounces out.

Figure 27: Device Unlocking

2. Push the device upwards and then slowly pull forward.

Figure 28: Adept Validator Removal

3. Press the locking clips on the connectors and carefully disconnect the cables.
