Vix Assure Adept Validator - Cradle Covering; Figure 35: Cradle Covering; Figure 36: Cradle Cover Locking

To Next Page

To Previous Page

DPU-00084

Revision 2.3

Page 36 of 39

6.7 Cradle Covering

In the case where the installed cradle is not being used, i.e. no validator is mounted on it, a cradle cover should be

used to provide ingress protection to the cradle and cables.

The cradle cover could be obtained from VIX with the part number being PROD1000-x.

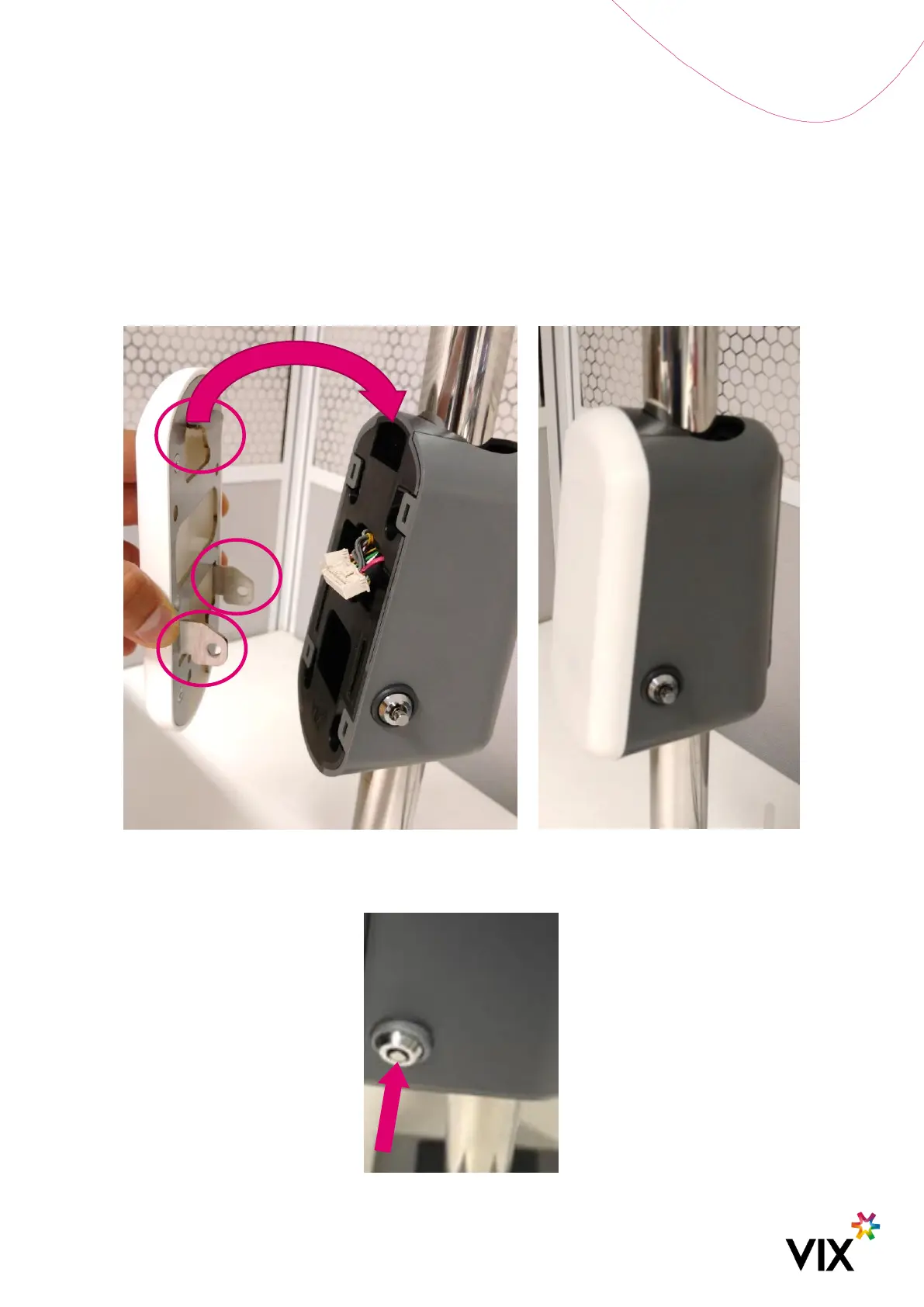

1. Cover the cradle by aligning the three locating plates, pushing forward, then pushing down to clip in as

shown below.

Figure 35: Cradle Covering

2. Press the lock button to secure the cover in place on the cradle.

Figure 36: Cradle Cover Locking
