Vix Assure Adept Validator User Manual

39 pages

To Next Page

To Previous Page

DPU-00084

Revision 2.3

Page 34 of 39

Figure 31: External Cover Removal

3. Open both cradle mount flaps.

Figure 32: Opening Cradle Arms

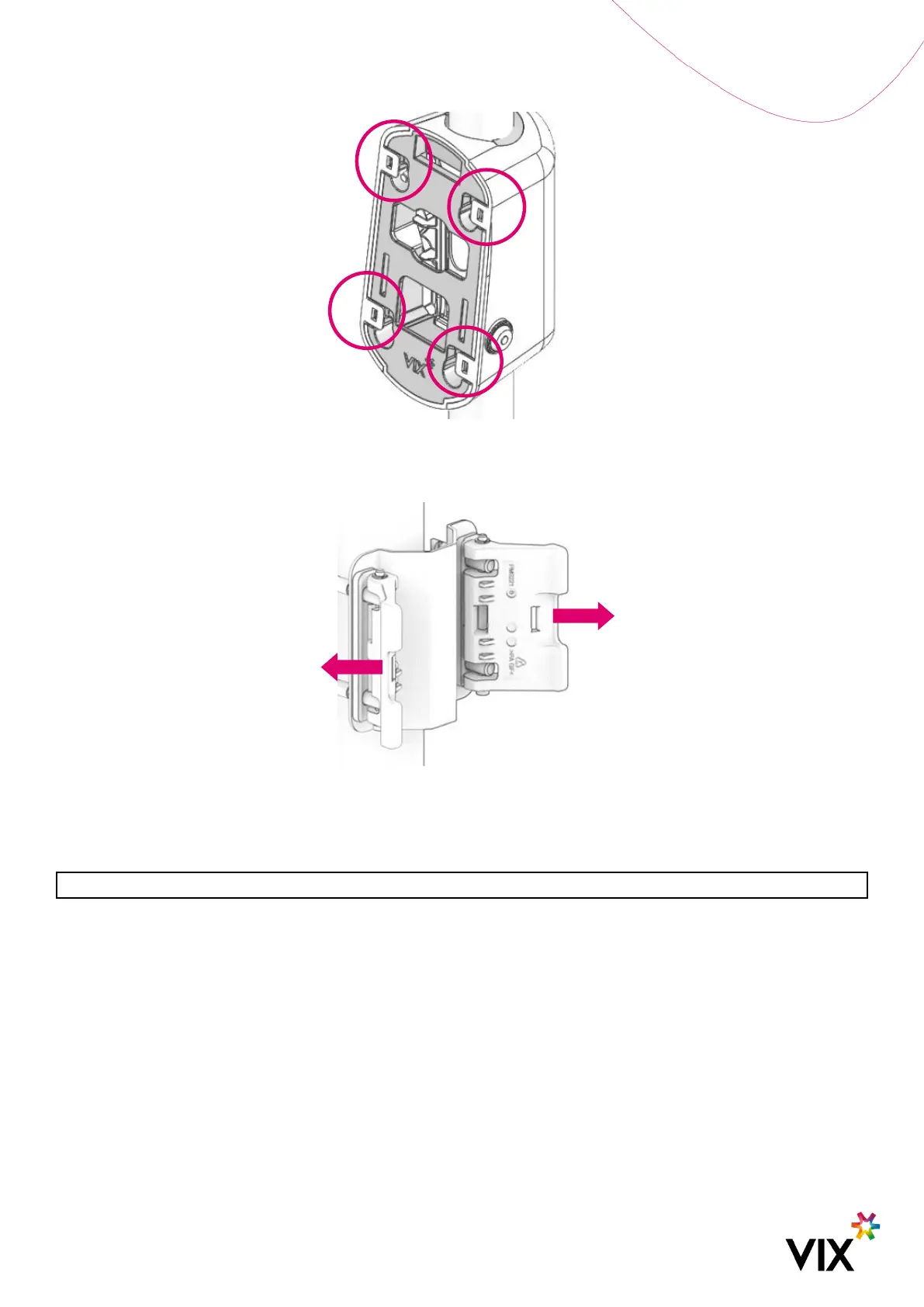

4. Remove the cradle rear from the cradle front by pressing the indicated metal part (on both sides) to release

the 4 pins.

Note: One may prefer to do this step on one side at a time.
