SOFTWARE
Page 60 © Voltech 2010 PM1000+ Power Analyzer User Manual

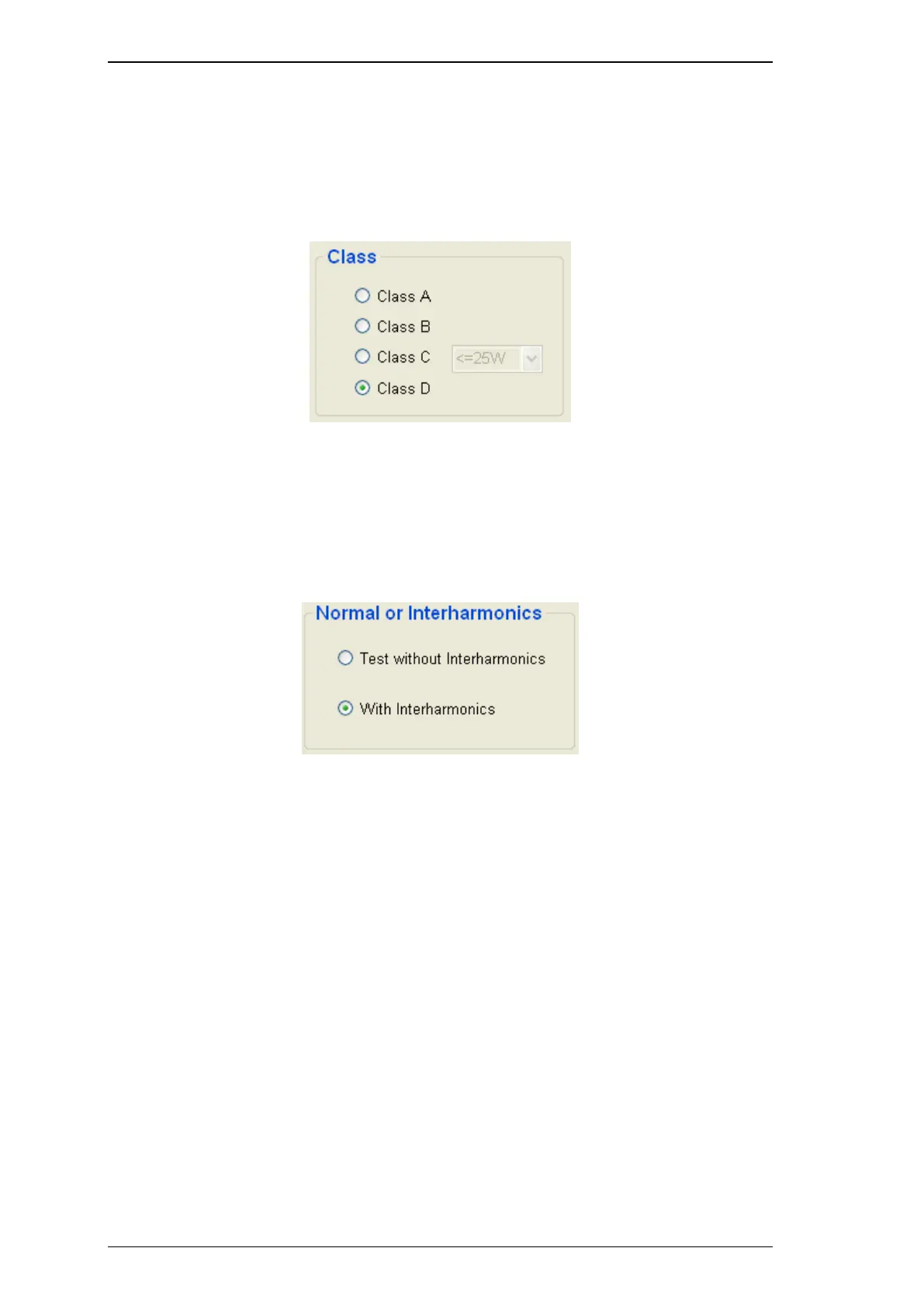

Class
This section determines the class of the UUT. Please refer to Voltech Application Note
104 for information on determining the class of the UUT.
Class Selection
Normal or Inter-harmonics
Select normal if you would like to test without inter-harmonics or select Inter-harmonics
to test with inter-harmonics. We will leave inter-harmonics selected for this test.
Select Normal or Inter-harmonics
Test Parameters
Test parameters must also be entered. Depending on the class selected, different
parameters are enabled. The on-line help details when each parameter is required and
what is meant by the parameter. The on-line help can be accessed by pressing F1.
