Volvo Penta IPS - Propeller Assembly

Assembly
1 Apply water-resistant grease, P/N 828250 (alt.
21347121) to the splines and threads on both pro-
peller shafts.
2
Install the forward propeller until it bottoms. Attach
the propeller nut with a cranking clockwise motion
until it bottoms. Adjust the position with a reversed
crank until the holes for the screws are lining.
3 Mount the six socket cap screws. Torque 24-28 Nm
(17.7–20.7 ft.lb.).
4 Install the forward propeller until it bottoms. Attach
the propeller nut with a cranking clockwise motion
until it bottoms. Adjust the position with a reversed
crank until the holes for the screws are lining.
5 Mount the six socket cap screws. Torque 24-28 Nm
(17.7–20.7 ft.lb.).
6 Push the spinner into place by hand. Install the
center screw with Volvo Penta locking fluid
1161053 alternative Loctite 242. Pull the center
screw, torque 24–28 Nm (17.7–20.7 ft.lb.).

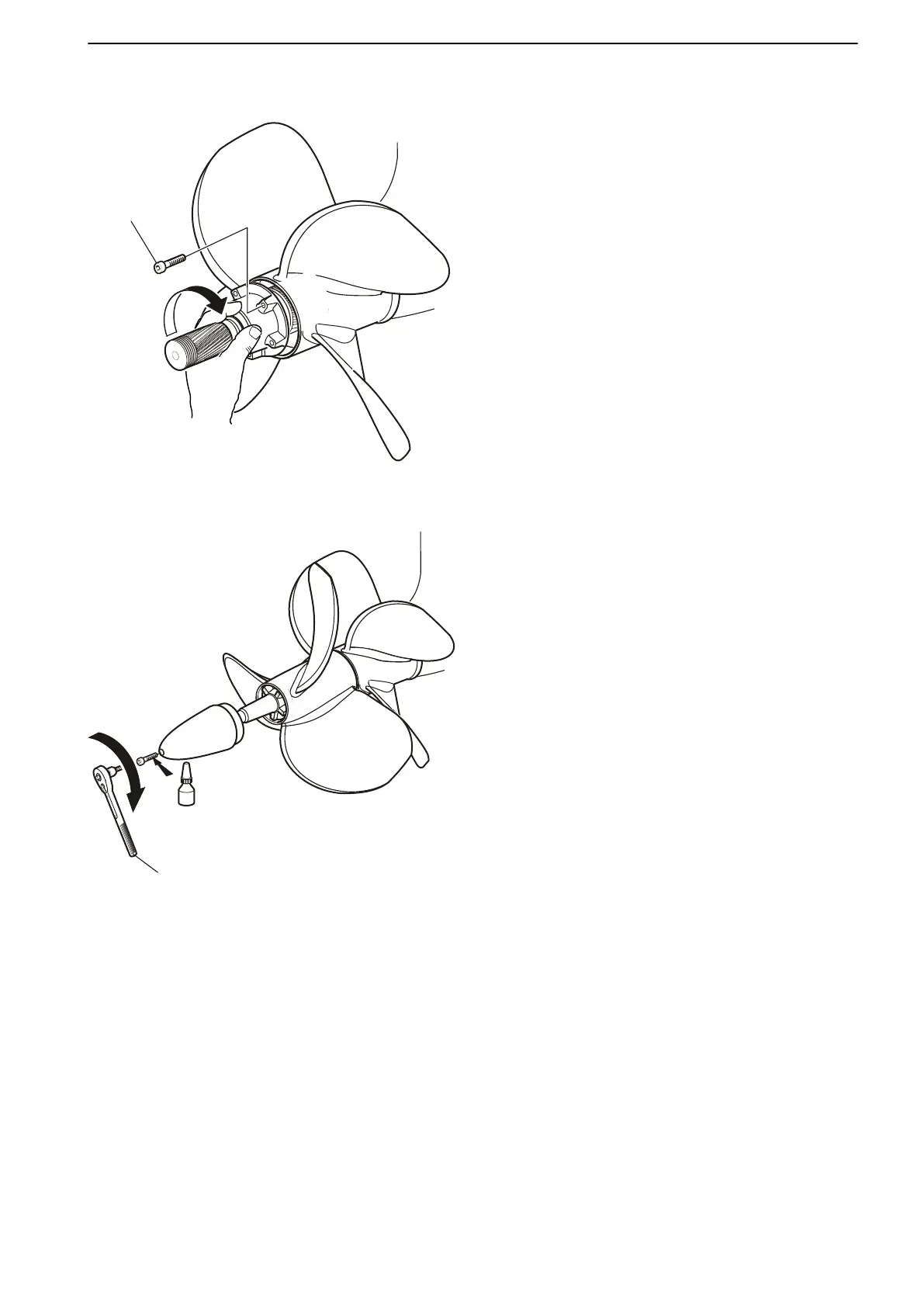

24-28 Nm
P0011228
Loctite 242
24-28 Nm
P0011229
