NOTES:
Use only the power adapter supplied with this product. To order a replacement power adapter,
visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, please dial
1 (800) 267-7377.
If you are installing less than four telephone line cords to the console, plug the telephone line
cords in ascending order starting from the L1/2 jack. Avoid having unoccupied telephone jack
between other occupied telephone jacks.
•
•
One end of the coiled telephone line cord has already been plugged into the
handset. Make sure it is plugged in firmly. Plug the other end of the coiled
handset cord into the left side of the console.
Open the line jack covers and plug one end of the telephone line cords into
the telephone line jacks of the console.
Plug the other end of the telephone line cords into the single-line telephone
wall jacks, as shown above.
Insert the connector of the power adapter to the power jack on the back of
the console.
Connect the plug head of the power adapter to the power outlet that is not
controlled by a wall switch.
Once the installation is successful, you can make and receive calls on the
console. Now, you can also register your cordless devices or skip to page 14 to
configure your console.
1.
2.
3.
4.
5.

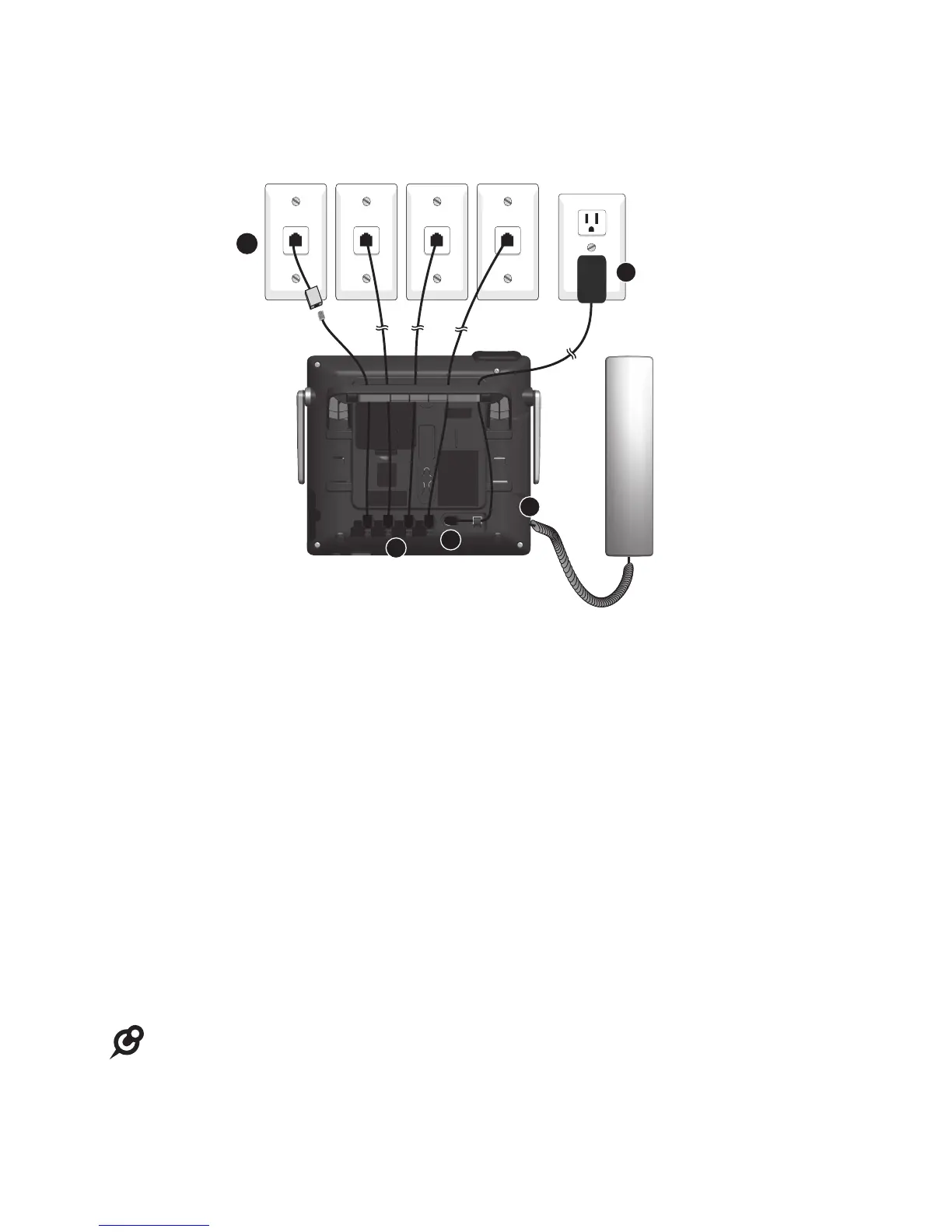

Option 1: If you have four single-line wall jacks, install your console, as shown
below.
1
2
3
4
5
Line 1
Line 3Line 2 Line 4
Getting started
Console installation
To Next Page
