VTech CM18445 - Console Installation

3

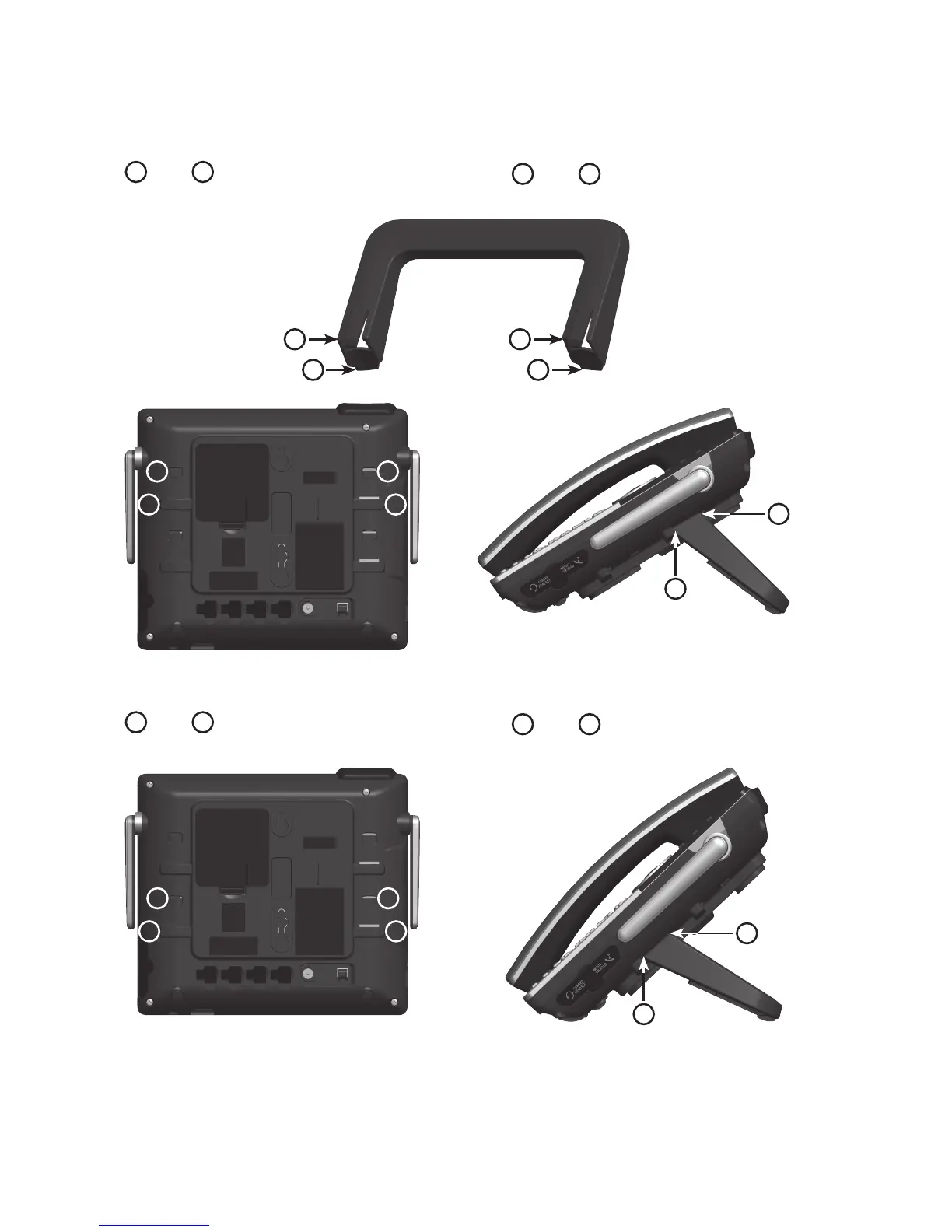

Install the mounting bracket for tabletop use.
Low tabletop position: Insert the fixed tabs of the mounting bracket into slots
A
and
B
. Press the flexible tabs into slots
C
and
D
until they click into place.
1.
D
Low tabletop position
High tabletop position: Insert the fixed tabs of the mounting bracket into slots
A
and
B
. Press the flexible tabs into slots
C
and
D
until they click into place.
High tabletop position
A B
2. Connect the telephone line cord(s) and the power cord to the console.
See the illustration on the next page to connect to four single-line wall jacks;
or see page 5 to connect to two 2-line wall jacks.
C D
B
D C
B A
D C
B A
D
B
Getting started
Console installation
