VTech CS6114 User Manual

4
Getting started
Battery installation

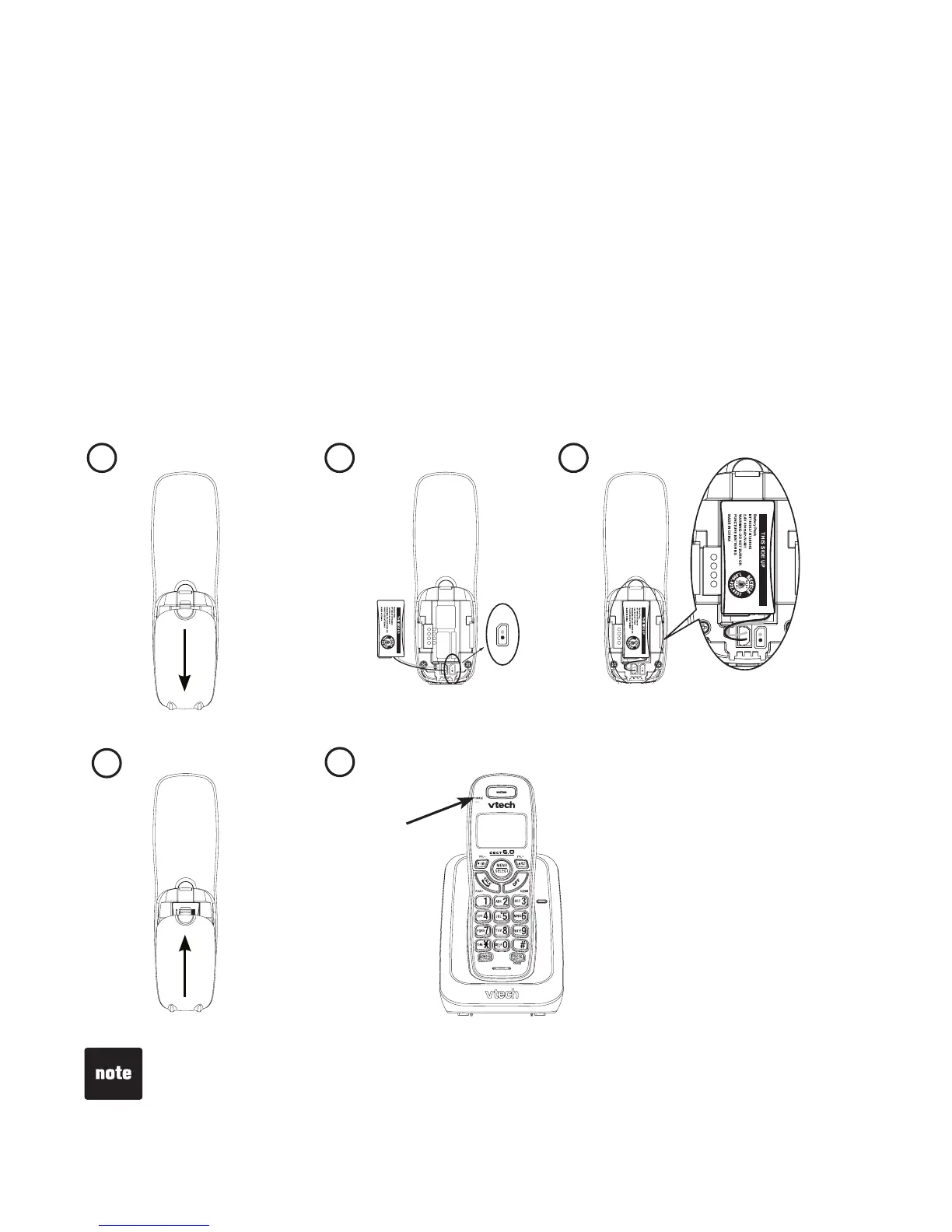

Install the battery as shown below.
If the battery compartment cover is on the handset, press on the indentation
and slide the cover down to remove.
Plug the battery connector securely into the socket inside the handset
battery compartment, matching the color-coded label.
Place the battery with the label THIS SIDE UP facing up and the wires
inside the battery compartment.
#NKIPVJGEQXGTƀCVCICKPUVVJGDCVVGT[EQORCTVOGPVVJGPUNKFGKVVQYCTFU
the center of the handset until it clicks into place.
Charge the handset by placing it in the telephone base. The CHARGE light
remains on whenever the handset is charging in the telephone base.
1.
2.
3.
4.
5.
If the handset will not be used for a long period of time, disconnect and
remove the battery to prevent any possible leakage.
To purchase a replacement battery, visit our website at www.vtechphones.com
or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or dial
1 (800) 267-7377.
•
•
1 2 3
4
5
Red
Wire
Black
Wire
CHARGE
light

VTech CS6114 Specifications

Frequency

transmit frequency handset	1921.536-1928.448 MHz
transmit frequency telephone base	1921.536-1928.448 MHz

Power

power requirements handset	2.4V 400mAh Ni-MH battery
power requirements telephone base	6V AC @ 300mA
power requirements charger	6V AC @ 300 mA

Memory

handset directory	30 memory locations; up to 30 digits and 15 characters
handset call log	30 memory locations; up to 24 digits and 15 characters

Weight and Dimensions

size handset	6.50 X 2.0 X 1.26 in (165.0 X 51.0 X 32.0 mm)
size telephone base	3.55 X 3.44 X 4.67 in (90.2 X 87.5 X 118.5 mm)
size charger	2.91 X 3.19 X 1.85 in (74.0 X 81.0 X 47.0 mm)
weight handset	4.59oz (130.0g)
weight telephone base	4.32oz (122.6g)
weight charger	1.76oz (50.0g)
