IVTM
3
System Description

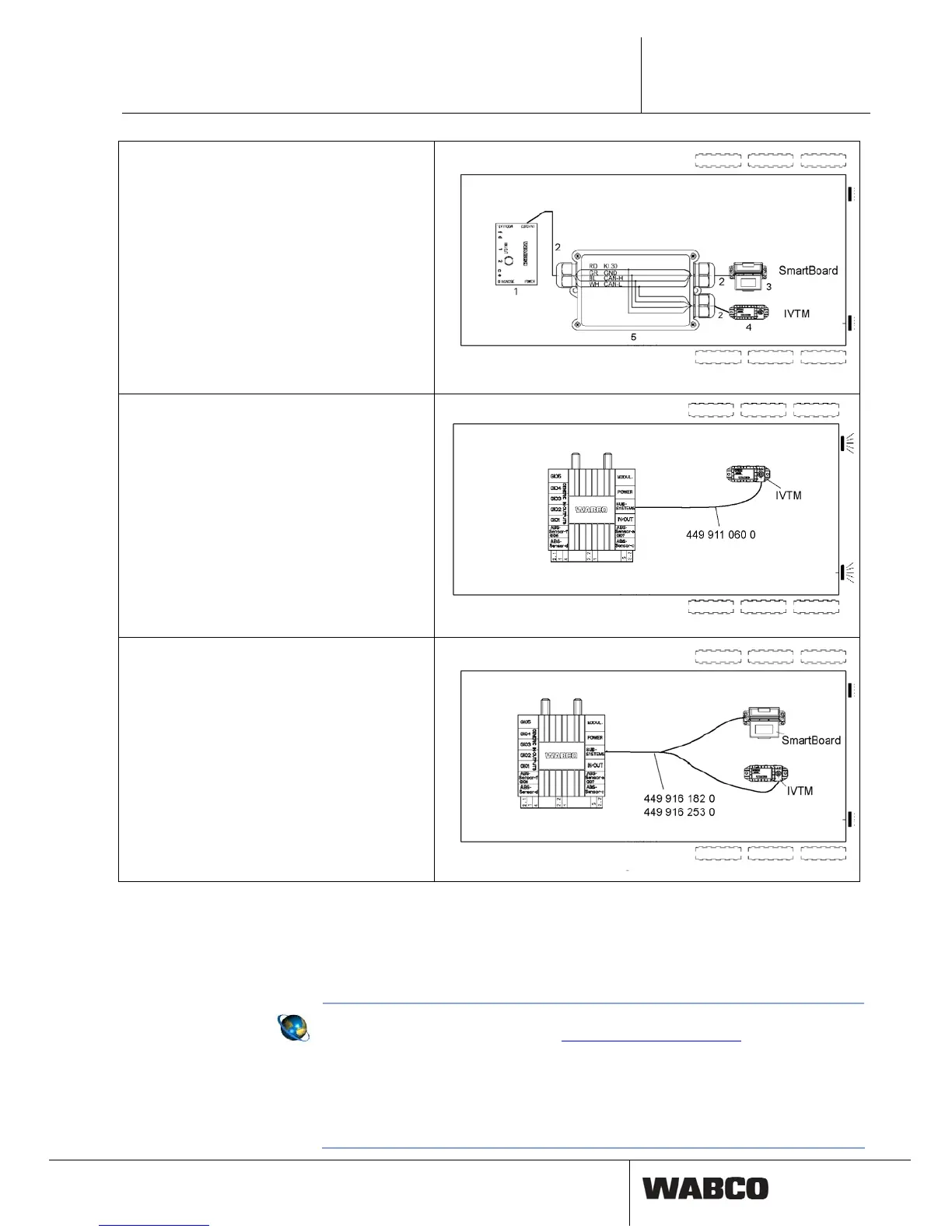

Wiring diagram 841 801 913 0:
Trailer EBS D and SmartBoard
(from year of manufacture 2004)
The SmartBoard and IVTM are connected to the
Trailer EBS D modulator on port IN/OUT2. CAN 2
must be activated (activation via diagnostic soft-
ware).
1 Trailer EBS D Modulator 480 102 014 0
2 Cable family 449 377 ... 0
3 SmartBoard 446 192 110. 0
4 IVTM
5 Distributor housing
Wiring diagram 841 802 155 0
Trailer EBS-E
IVTM is connected to sub-systems using cable
(449 913 ... .).
Wiring diagram 841 802 155 0
TEBS E with SmartBoard
IVTM and SmartBoard are connected to sub-
systems using cable (449 916 ... .).
Table: 3-2: Components for trailers
3.5 Certificates
Certificates for mounting and additional mounting of IVTM are available, which sig-
nificantly facilitate approval of vehicle registration papers.
The certificates are not part of this document but can be retrieved from the WABCO
online product database INFORM at http://www.wabco-auto.com
. To retrieve them,
enter the search term in the "Index" input field.
Following certificates are stored there:
• Expertise TÜH ATC TB 2002-108.00
• Part certificate of TÜH ATC - TB 2003-023.00
• Type approval 94/9/EG CE 0032, TÜV03 ATEXxxxx
• Operating range: εx II 2G EEx ib IIC T4
