IVTM Components
WABCO
number
Hole, wheel
bolt
Bolt circle
Ø
Angle Figure Application
Towing vehicle: Front axle, load a 960 731 061 0 32 mm 335 mm 33° xle
Twin tires, Super-Single 960 731 073 0 26 mm 285,75 mm 70°
Towing vehicle: Front axle, load axle 960 731 075 0 26 mm 285,75 mm 33°
Twin tires, Super-Single 960 731 081 0 26 mm 225 mm 70°
Counterweight for L-shape wheel module 960 730 822 2
960 730 828 2
26 mm
32 mm
335 mm 0°
Counterweight independent wheels 960 730 820 4 26 mm 335 mm 0°
960 730 825 4 32 mm

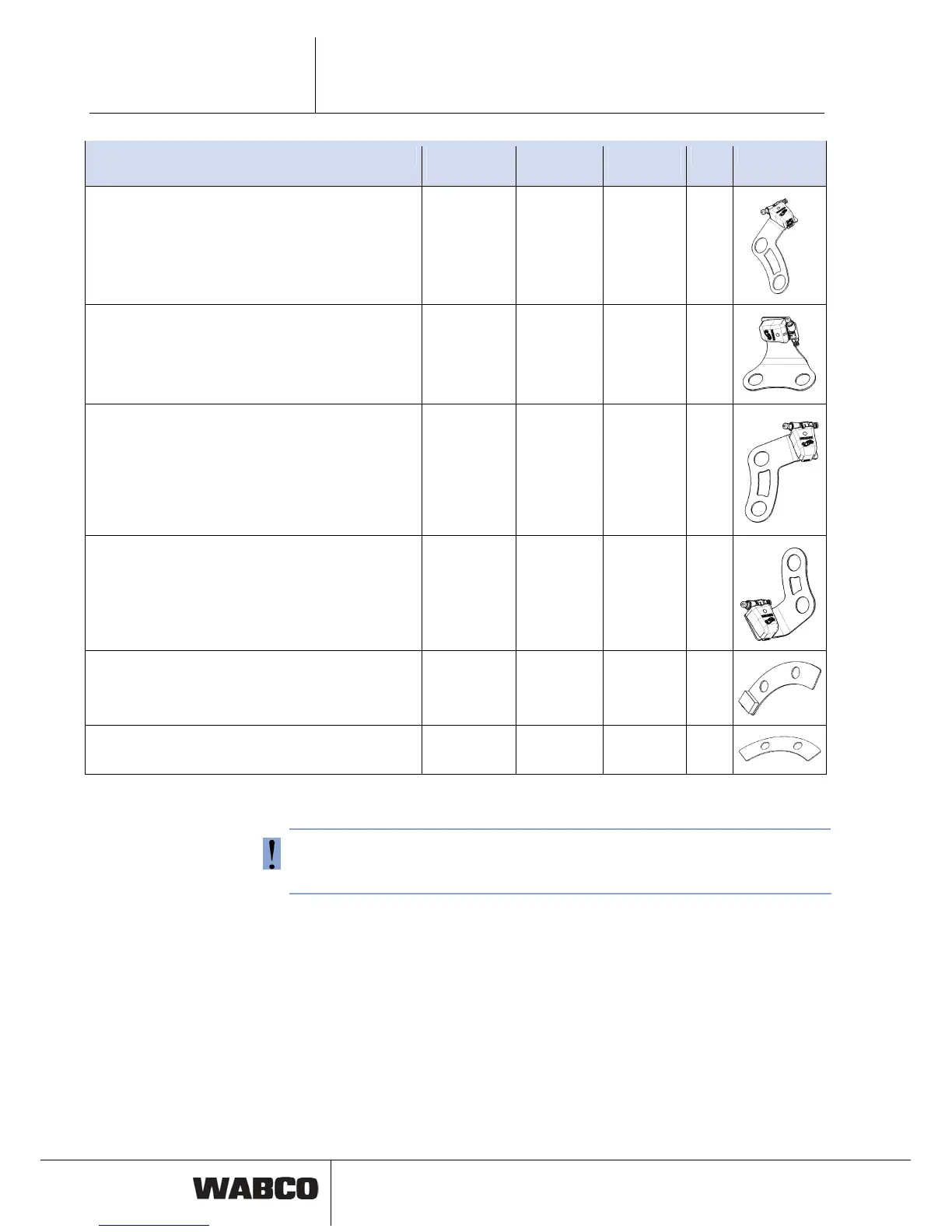

Table: 4-1: Wheel modules and counterweights
With twin wheels and Super Single rims, problems may occur with the radio trans-
mission due to the immersion depth. To ensure the quality of the reception, wheel
dules with the T-s 960 7 or 9 731 041 0). mo hape should be used ( 31 031 0 60
