TEBS E
6
GIO functions
109
Components

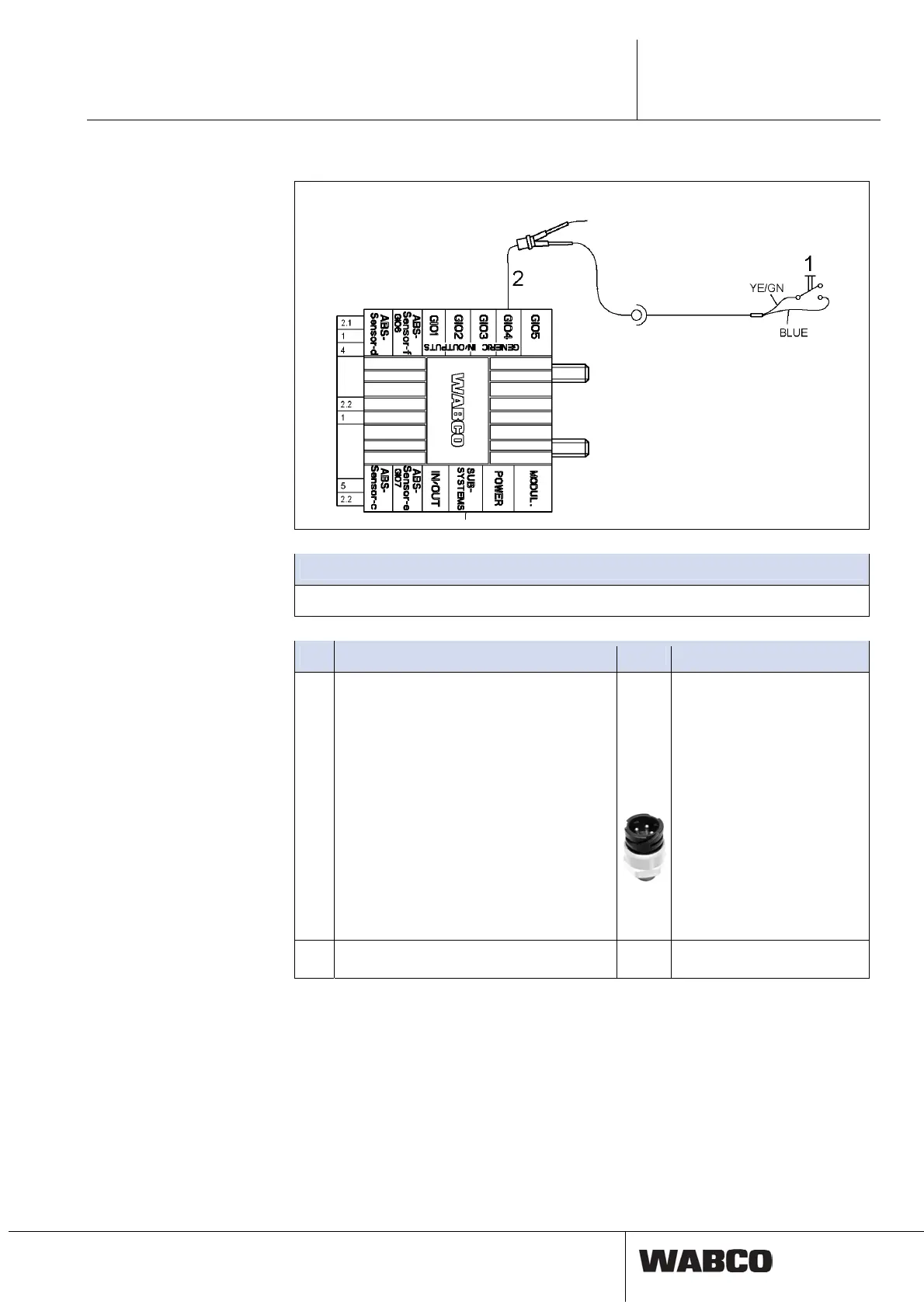

Extract from diagram 841 802 274 0
Legend
YE
Yellow
GN
Green
BL
Blue
Item Component Figure Part number
1 Proximity switch (tested and recommended
by WABCO):
Telemecanique XS7C1A1DAM8
Schönbuch Electronic IO25CT 302408
Balluff BES M30MF-USC15B-BP03
Alternatives:
Not part of WABCO's scope
of supply
Pressure sensor 441 044 101 0
441 044 102 0
Mechanical (roller) switch Not part of WABCO's scope
of supply
2 GIO 'Y' distributor 449 629 ... 0
Parameter setting
The function is configured via tab 6, Brake functions.
The GIO slots to use are defined in tab 11, connector.
If SafeStart is to act on the spring chambers with a pulse-controlled lifting axle
valve, the vehicle type Road tanker must be selected in tab 6, Braking functions for
the SafeStart function.
