Installation notes
for vehicle installation and retrofitting
145
8.3 Installation in vehicle
Before you commence the installation, it is essential that you note the safety in-
structions on the subject of ESD, see chapter 3 ‘Safety information’, page 10.
Installation on frame
– Install the modulator according to the outline drawing.
– Make sure that there is a conducting ground connection between the modulator
and the vehicle frame (resistance must be less than 10 Ohm). The same ap-
plies to the connection between an EBS relay valve and the frame.
Outline drawing for TEBS E Modulator
Open the WABCO website http://www.wabco-auto.com
.
Here click on Product catalogue INFORM.
Enter the part number of the TEBS E Modulator in the Product Number field.
Click on the Start button.
Click the Publications radio button.
The installation position can be in the driving direction or against the driving direc-
tion (stud bolts face driving direction).
– Define the installation position in the parameters via the TEBS E Diagnostic
Software.
The silencers must be open towards the atmosphere and always point perpen-
dicular to the floor (see below), see chapter 8.3.1 ‘RSS installation regulation’,
page 146.

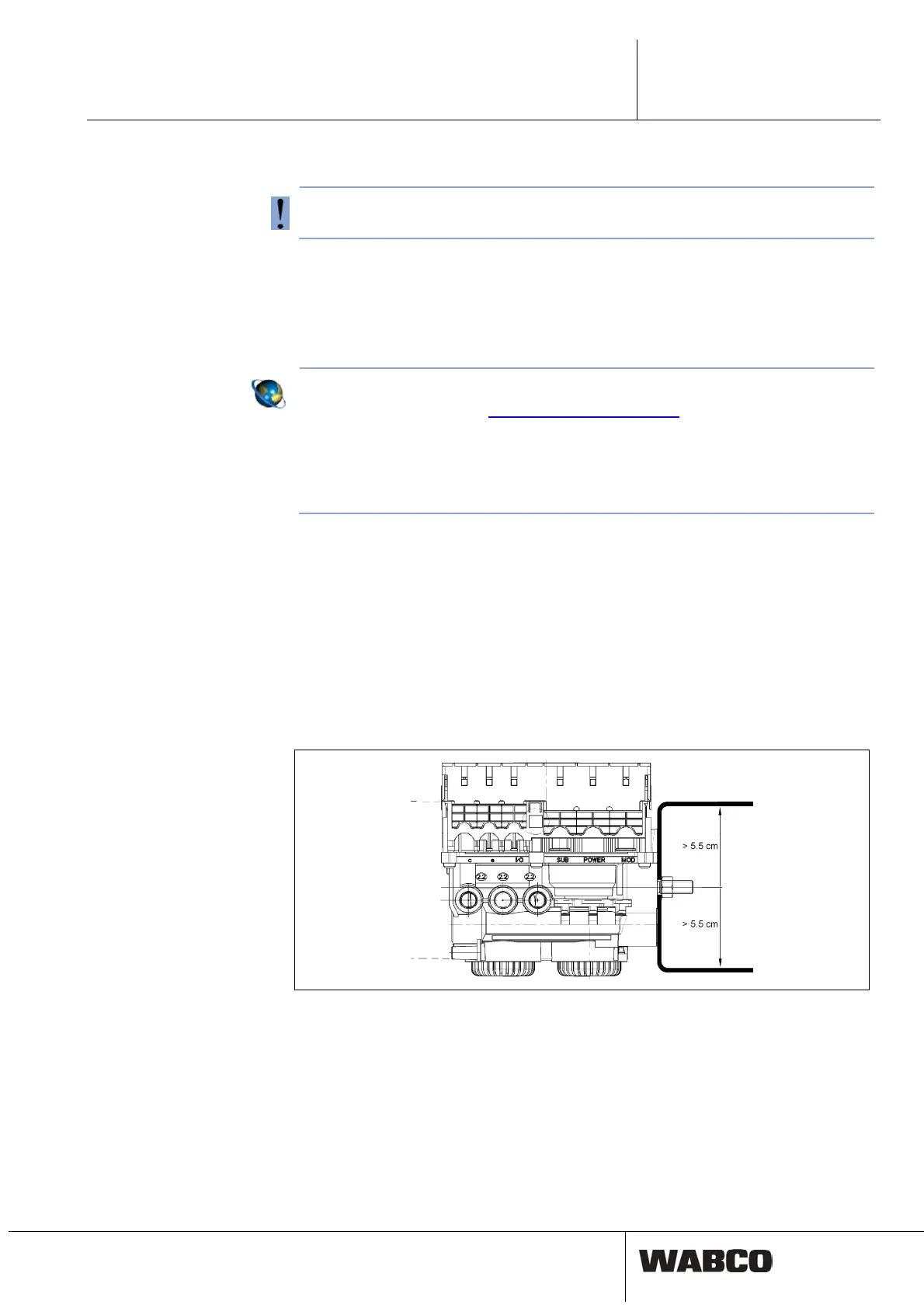

Fastening o
n cross member
The cross-member must be connected to the two longitudinal beams of the vehicle
mass in a friction locked manner.
– Mount the modulator on a sufficiently sized U-section, angle section, or a suit-
able reinforced member that is at least 4 mm thick (applies to steel sections).
The height of the mount must be greater than the flange-surface of the modula-
tor so that the flange makes full contact with the mount.
Washers or spring lock washers are only permitted directly under the nut.
The tightening torque of the nuts is 85 Nm.
– Note the installation guidelines for RSS as well, see chapter 8.3.1 ‘RSS installa-
tion regulation’, page 146.
