GIO functions
116
If the forklift is no longer attached, the function must be deactivated. The presence
of the forklift can then be sensed using a roller switch and the ‘Forced Lowering’
function thereby controlled.
Components

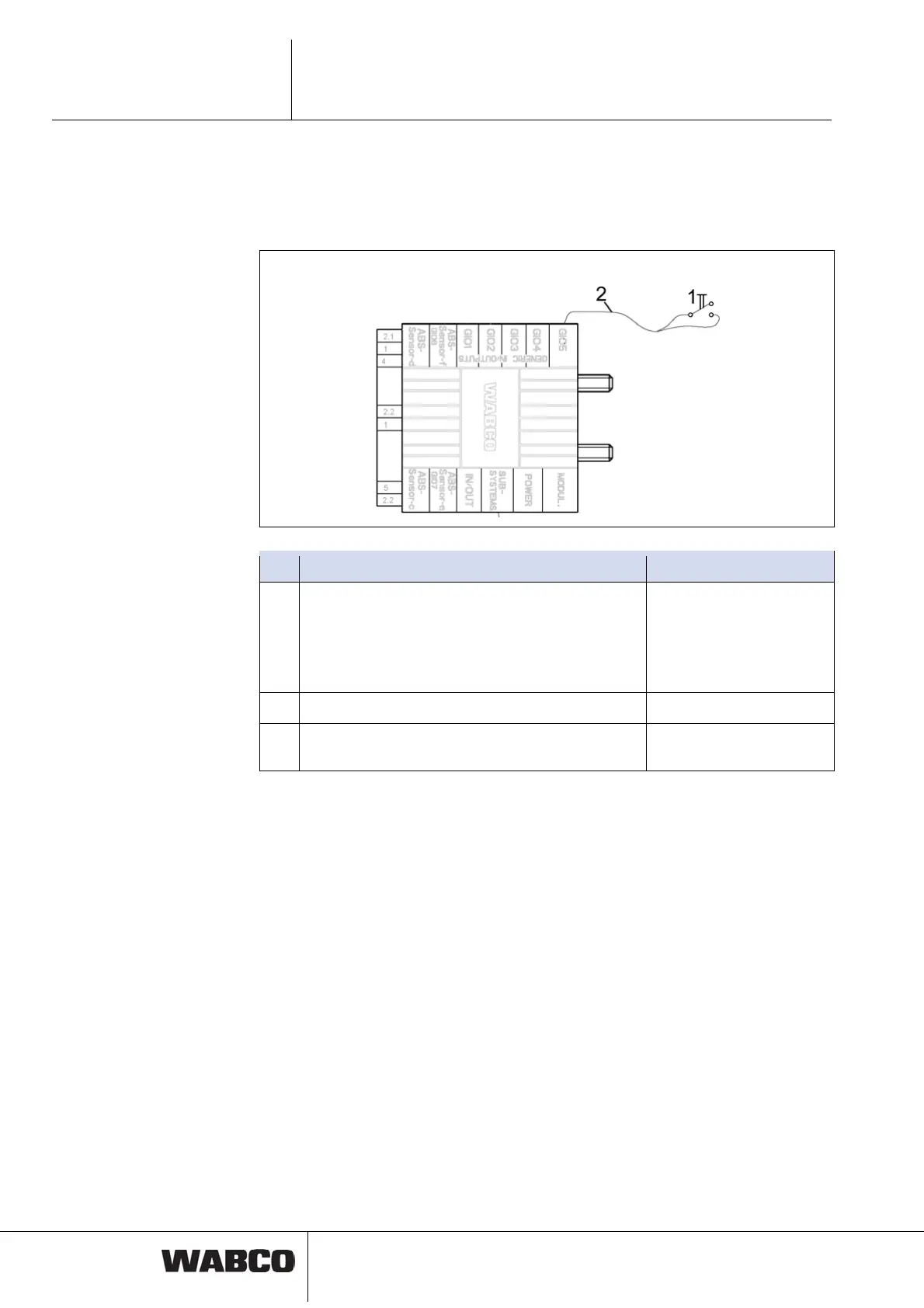

Extract from diagram 841 802 292 0
Item Component Part number
1 WABCO has tested the following inductive sensors as
proximity switches:
Telemecanique XS7C1A1DAM8
Schönbuch Electronic IO25CT 302408
Balluff BES M30MF-USC15B-BP03
Not part of WABCO's scope
of supply
2 Cable Proximity switch 449 ... ... 0
Mechanical (roller) switch (optional) Not part of WABCO's scope
of supply
Parameter setting
The function is activated via tab 5, Lifting axle control.
The GIO slots to use are defined in tab 11, connector.
