GIO functions
121
An ODR event is generated for the following events:
• Immobilizer status changes
• Incorrect PIN entered
• Moving of vehicle despite immobilizer
• Emergency release function operated
Power supply
To activate/deactivate the immobilizer, the trailer must be supplied with power. This
can be achieved in two ways.
• Switch on ignition (supply via terminal 15)
• ECU stand-by time (supply via terminal 30): A time parameter must be defined
in the parameter settings for this purpose.
Connecting the components

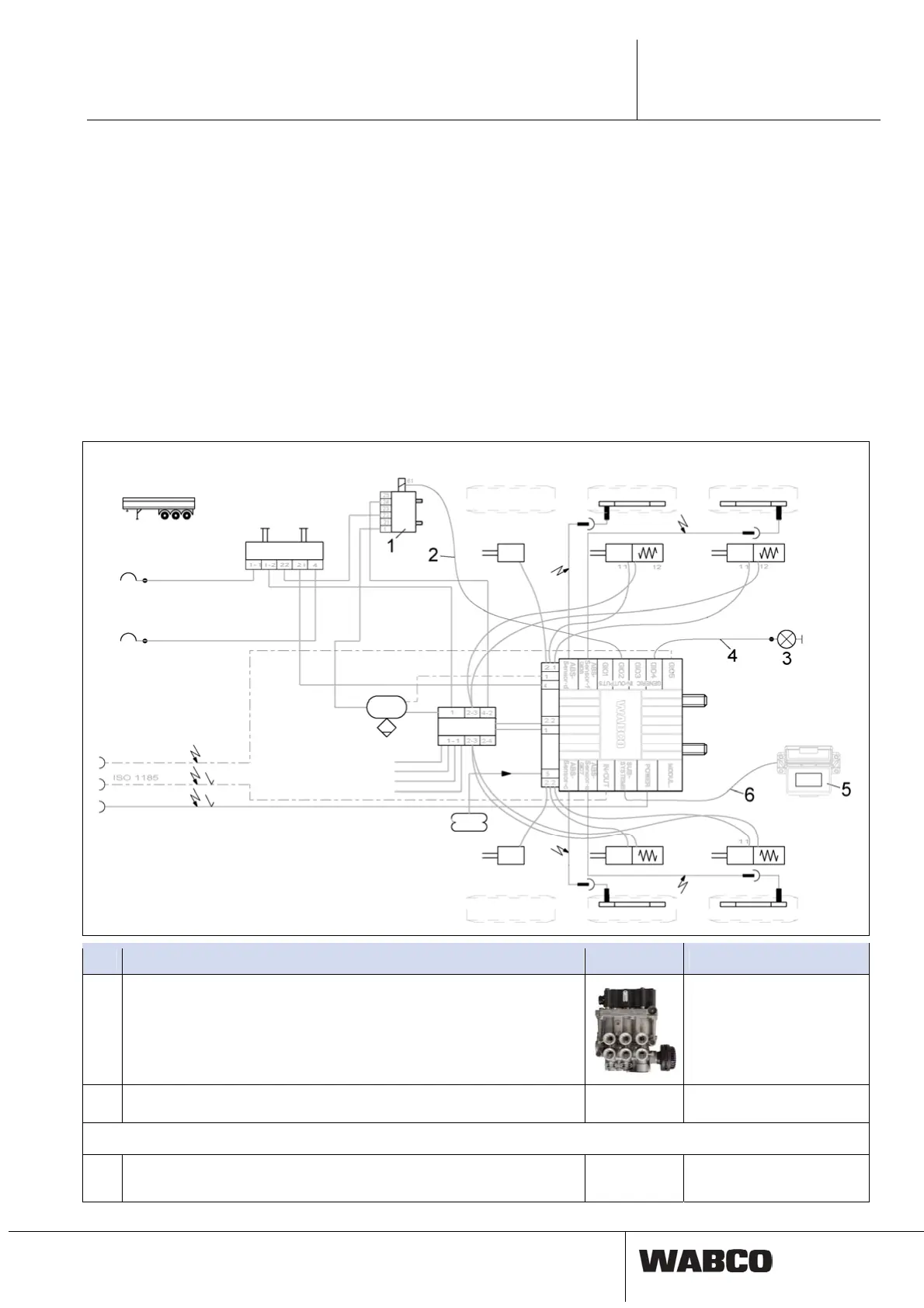

Extract from diagram 841 701 227 0 3-axle semitrailer
Item Component Figure Part number
1 Lifting axle valve (LACV-IC)
Connection also possible on GIO1, 2 or 3.
463 084 100 0
2 Cable for lifting axle valve
449 445 ... 0
The following components can be used for indication and operation:
3 Warning lamp / warning horn (optional)
Not part of WABCO's scope
of supply
