Activation
TailGUARD is activated by shifting into reverse gear. The activation causes the
beeper and the amber and red LED on the Trailer Remote Control to switch on
briefly. The clearance lights on the trailer vehicle are also switched on by the TEBS
E and they flash.
An indication of the distance to an object on the towing vehicle display is possible
depending on the manufacturer.
Deactivation
The function is deactivated by:
• Speed > 12 km/h and/or supply pressure lower than 4.5 bar
• Shut-off by Trailer Remote Control
• Temporarily switch off with an external button on the GIO
• Engage reverse gear two times within 1-3 seconds
• Because of a fault (TEBS E cannot brake automatically in this case)
All deactivations are only effective until the reverse gear is engaged again. If the
system is deactivated, the clearance lights or additional lights are not actuated.
The acoustic signals are switched off and the Trailer Remote Control shows the re-
spective system status on the display. Deactivating TailGUARD is stored as an
even in the operating data recorder (ODR).
Please note that the electronic ISO 7638 connection must be plugged in for opera-
tion of the TailGUARD function.
TailGUARD can not be operated with a supply from 24N.

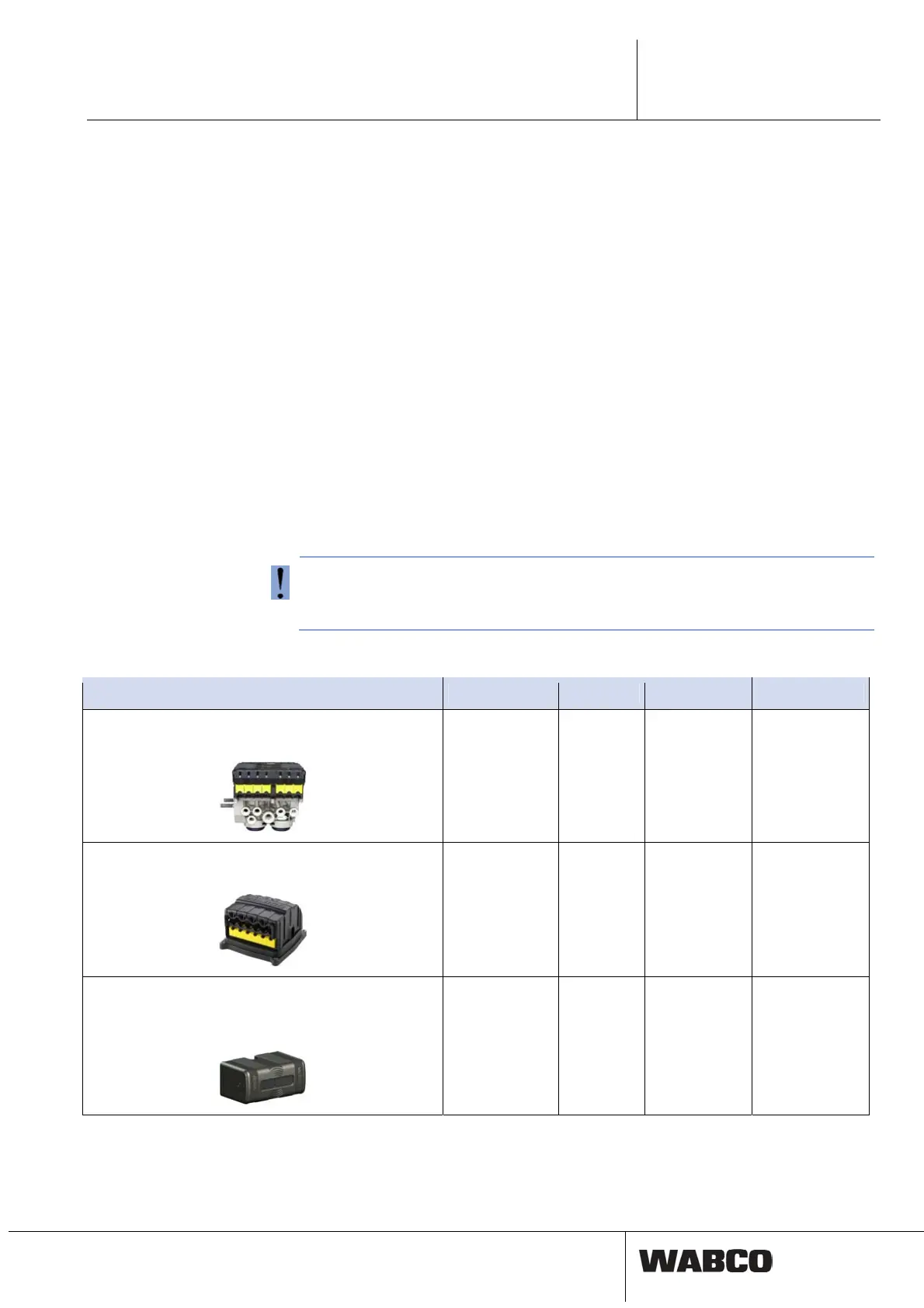

Component overview for the TailGUARD configurations (WABCO recommendation)
Components / Part number TailGUARDlight TailGUARD TailGUARD
Roof
TailGUARDMAX
TEBS E Premium Modulator
480 102 06. 0
1x 1x 1x 1x
ELEX
446 122 070 0
1x 1x 1x 1x
LIN ultrasonic sensor
0°
446 122 401 0
2x 1x 1x 2x
