TEBS E
7
External systems
135
Connecting the components

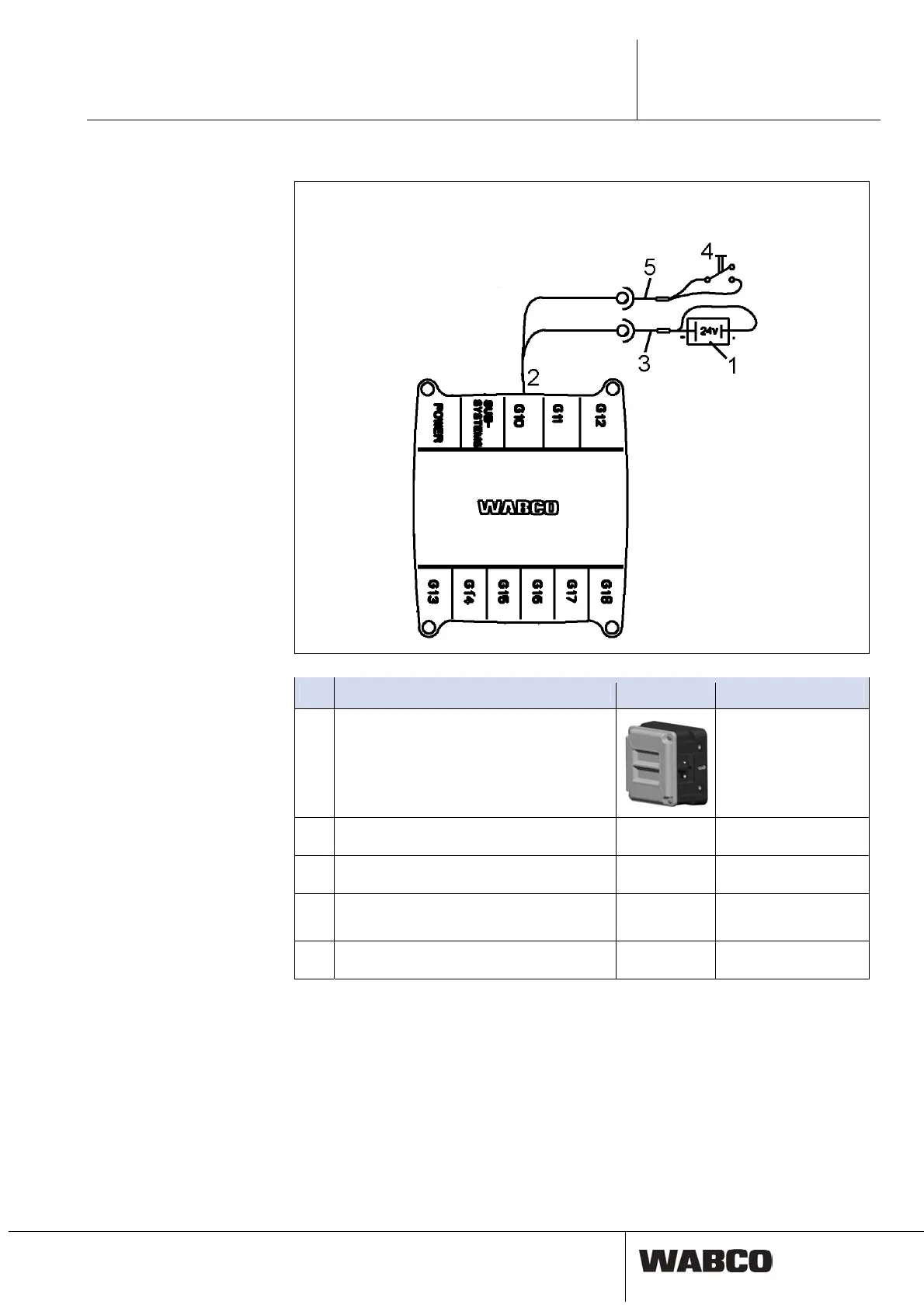

Extract from diagram 841 802 250 0
ECAS function with battery
Item Component Figure Part number
1 Battery box
Recommended: 2x Panasonic lead gel
accumulators (Series LC-R127R2PG; 12 V;
7.2 Ah
446 156 090 0
(without batteries)
2 Battery distribution cable
449 803 022 0
3 TEBS E battery cable
449 807 050 0
4 Button
Not part of WABCO's
scope of supply
5 Coupling connector with cable
449 714... 0
Parameter setting
The trailer battery is defined in tab 10, ELEX.
A stand-by time (ECU standby) is defined in tab 8, General functions.
The GIO slots to use are defined in tab 11, connector, ELEX.
