Installation notes
for vehicle installation and retrofitting
154
ELEX

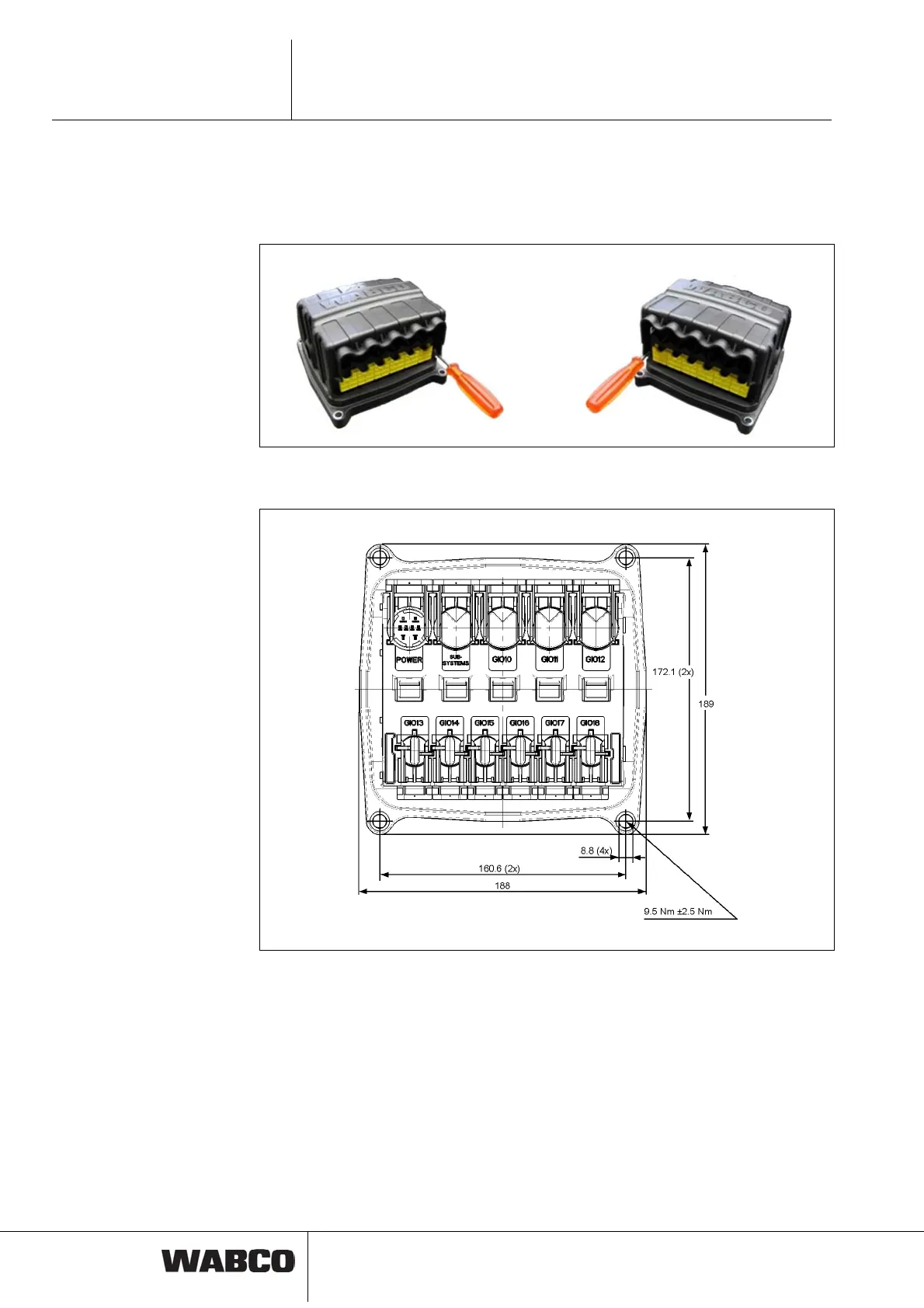

The cover of the ELEX must be removed for installing/removing the cables.
– Use a screwdriver with a minimum length of 11 cm to release the catch on the
housing to remove the cover.
1.
2.
– Mount ELEX vertically only, whereby the cable opening is to face down or to the
side.
Installation dimensions
Dimensions in mm
– Fasten the connector housing of the 8-pin plug-in connector with cable ties on
the respective bracket catch.
– When the cable has been installed, mount the cover again.
Make sure that all catches are firmly in place.
The open side must face in the direction of the 4-pin slots.
