6
TEBS E
GIO functions
76
Connecting the components

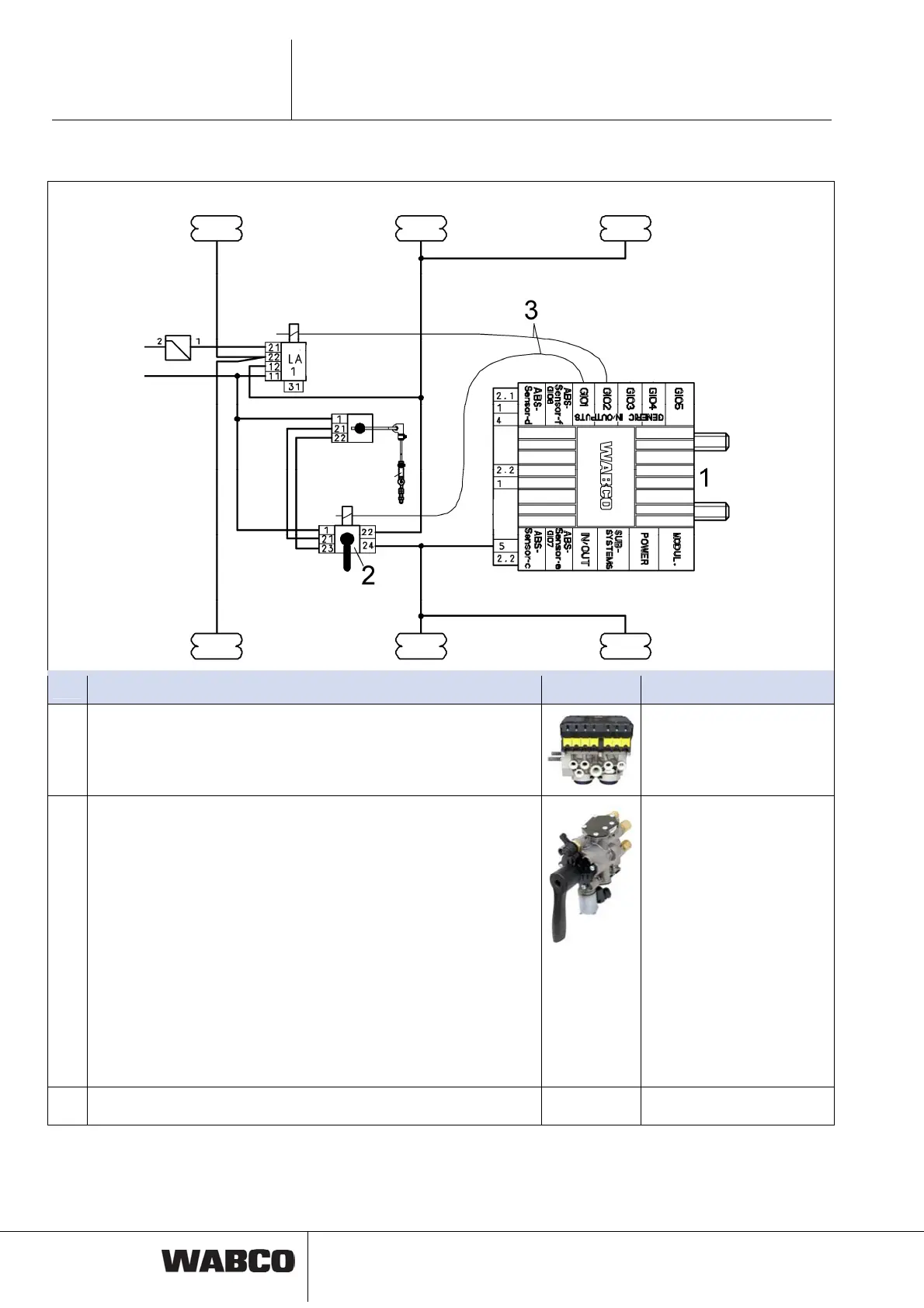

Extract from diagram 841 802 150 0
Item
Component Figure Part number
1 TEBS E Modulator (Premium/Standard) 480 102 0.. 0
2 TASC
A precise description of the device is located in the catalogue ‘TASC
Trailer Air Suspension Control - Function and Installation’, see chap-
ter 4 ‘Introduction’, page 12 => Section „Mor
e information’.
463 090 012 0 (1-circuit;
RTR, Resting in lowered
position)
463 090 020 0 (2-circuit;
RTR, Resting in lowered
position, with fittings and test
connection)
463 090 021 0 (2-circuit;
RTR, Resting in lowered
position, with fittings)
463 090 023 0 (2-circuit;
RTR, Resting in lowered
position)
463 090 123 0 (2-circuit;
RTR, dead-man's safety
system for stroke > 300 mm)
3 Standard cable for lifting axle, RTR
449 443 ... 0
Parameter setting
The setting is done via tab 4, Standard functions.
The GIO slots to use are defined in tab 11, connector.
