TEBS E
6
GIO functions
87

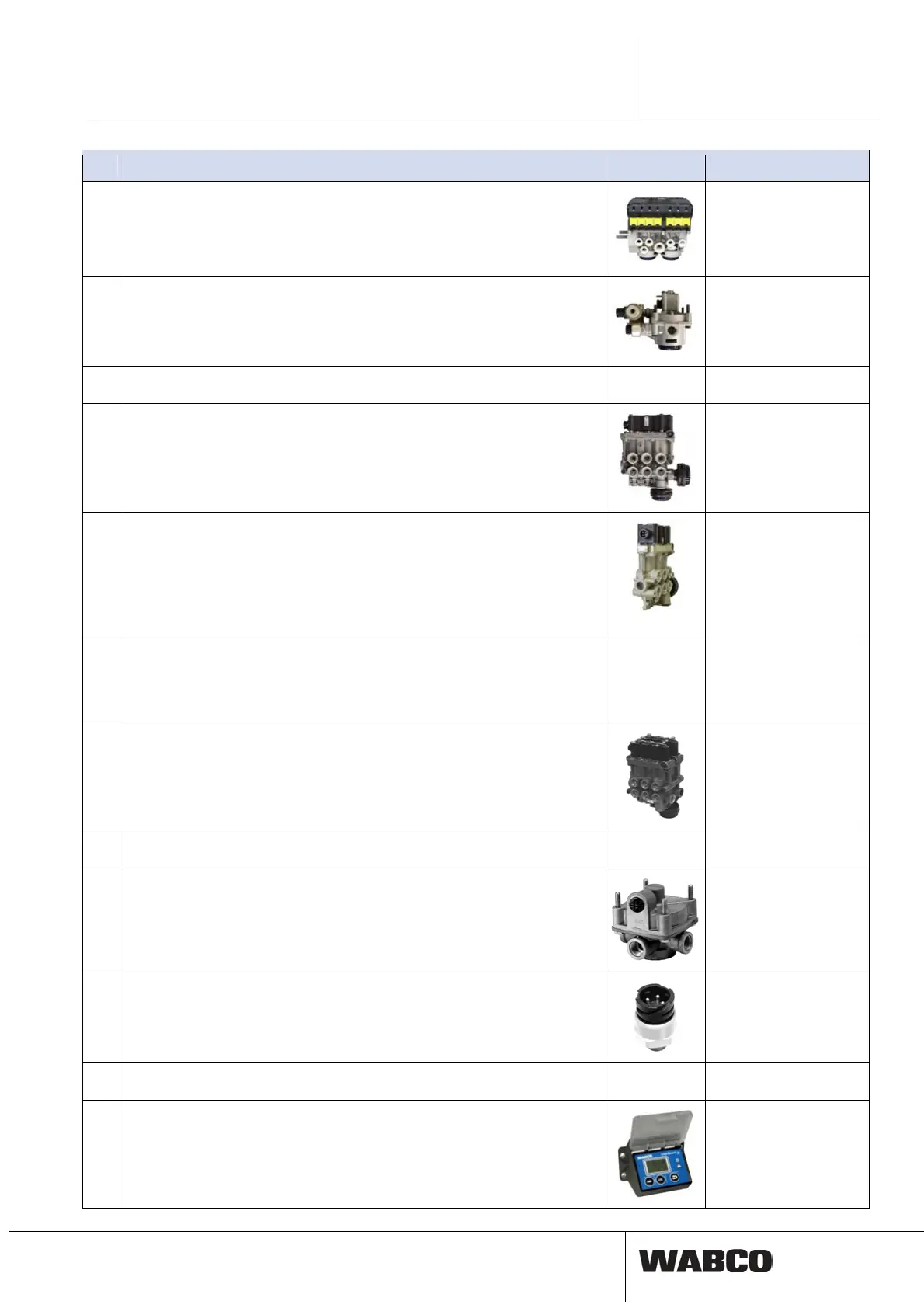

Item Component Figure Part number
1 TEBS E Modulator (Premium)
480 102 06. 0
2 EBS relay valve (third modulator)
480 207 ... 0
3 Cable for EBS relay valve
449 429 ... 0
5
(A)
ECAS solenoid valve (1-point control): double block with lifting/lowering
function and lifting axle control
472 905 114 0
5
(B)
Lifting axle valve (LACV-IC)
When using a second lifting axle for the first axle:
Up to version TEBS E2: Only the spring-returned lifting axle valve can be
used on the first axle in combination with the ECAS double block.
As of TEBS E2: An additional third pulse-controlled valve can also be in-
stalled.
463 084 100 0
6
(A)
6
(B)
Cable for ECAS solenoid valve or LACV-IC
449 761 030 0
ECAS solenoid valve
2-point control, only possible in combination with ELEX and version
TEBS E2 or higher see chapter 7.1 ‘Electronic expansion module (ELEX)’,
page 126.
472 905 111 0
7 Cable for ECAS valve/lifting axle valve
449 445 ... 0
8 Residual pressure keeper valve
Alternative to residual pressure maintenance by means of LACV-IC
475 019 ... 0
9 External bellows pressure sensor
Use only at the responsibility of the vehicle manufacturer, depending on the
vehicle construction.
441 044 ... 0
10 Cable for pressure sensor (optional)
449 812 ... 0
11 SmartBoard (optional)
446 192 110 0
