6
TEBS E GIO functions
90

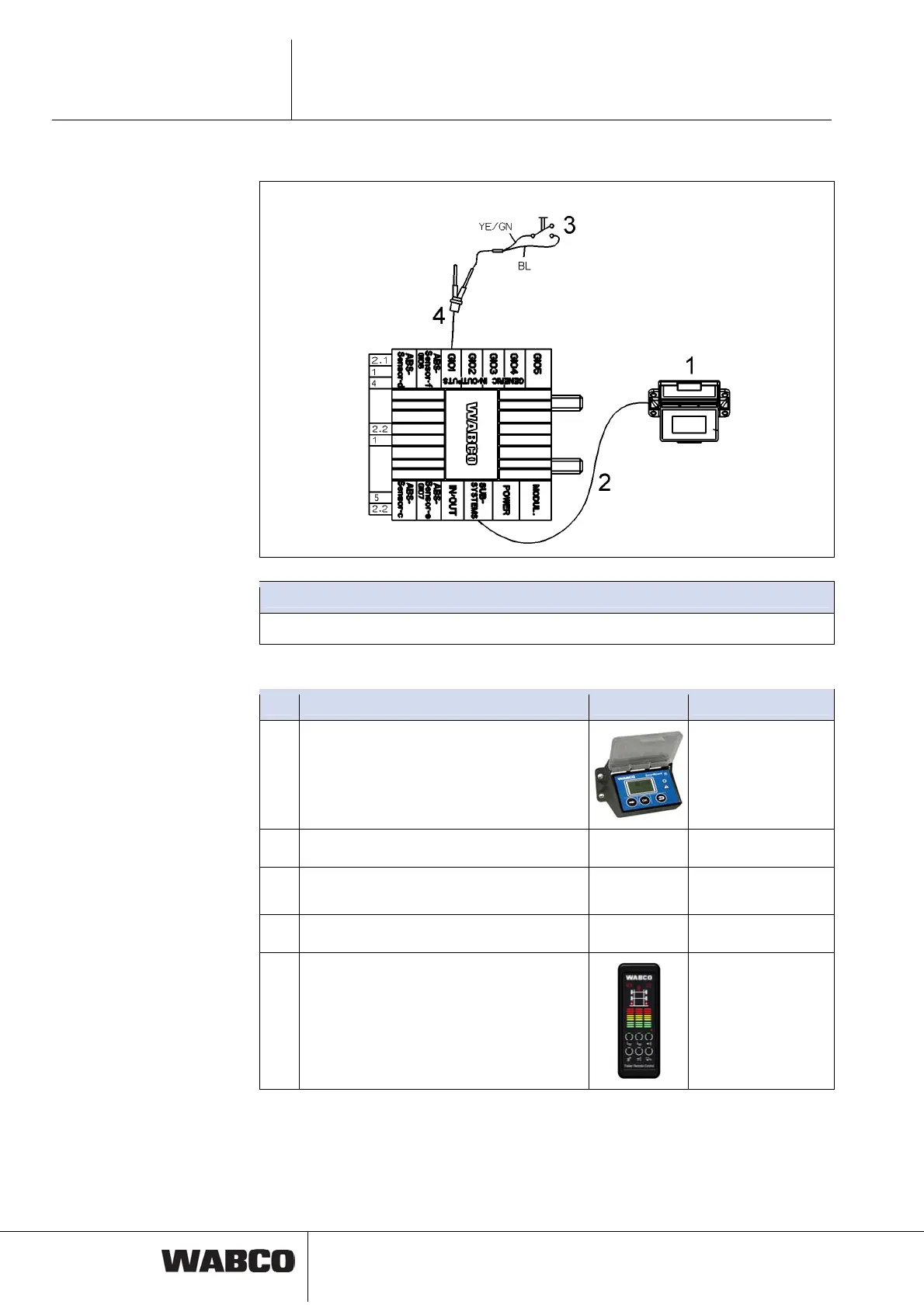

Connecting the components
Extract from diagram 841 802 157 0
Legend
YE
Yellow
GN
Green
BL
Blue
The following components can be used for indication and operation:
Item Component Figure Part number
1 SmartBoard 446 192 110 0
2 Cable for SmartBoard 449 911 ... 0
3 Button / switch (optional) Not part of WABCO's
scope of supply
4 Universal cable (optional) 449 535 ... 0
Trailer Remote Control (optional)
Only in combination with ELEX and version
TEBS E2 or higher.
Connecting cable between Trailer Remote
Control and fuse box in the truck and a
bracket are included in delivery.
446 122 080 0
Parameter setting
The settings are defined via tab 5, Lifting axle control.
The GIO slots to use are defined in tab 11, connector.
