TEBS E GIO functions
92

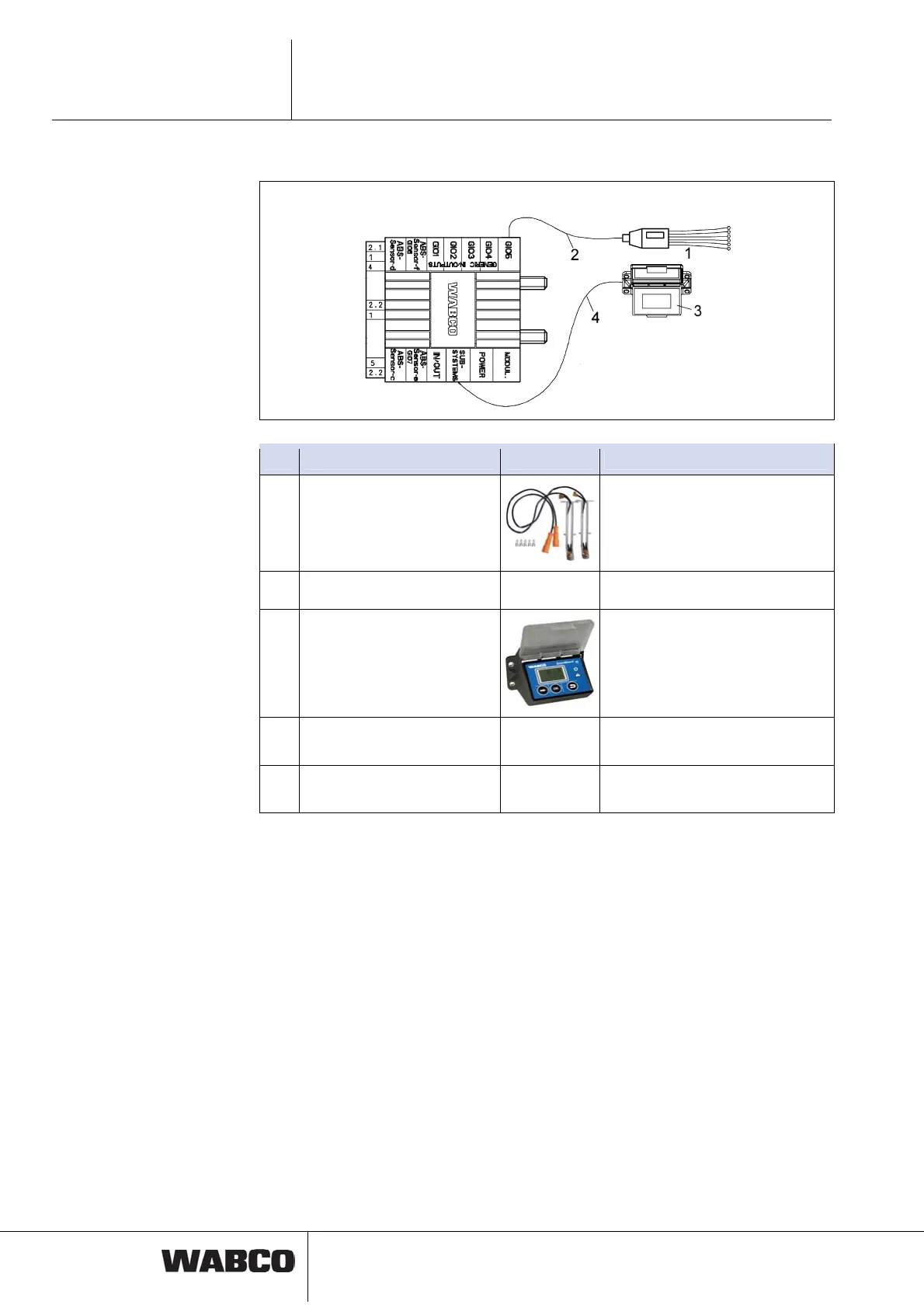

Connecting the components
Extract from diagram 841 802 157 0
Item Component Figure Part number
1 Wear indicator 480 102 92. 2 (retrofit)
2 Cable for wear indicator 449 816 ... 0
3 SmartBoard (optional) 446 192 110 0
4 Cable for SmartBoard (op-
tional)
449 911 ... 0
Warning lamp Not part of WABCO's scope of
supply
Parameter setting
The function is activated via tab 4, Standard functions.
The GIO slots to use are defined in tab 11, connector.
Connecting the lining wear indication to GIO5 can cause load peaks in certain
cases and should be avoided.
