Installation – TRAILERCAST with Battery Position
6.5.1 Incorrect Installation

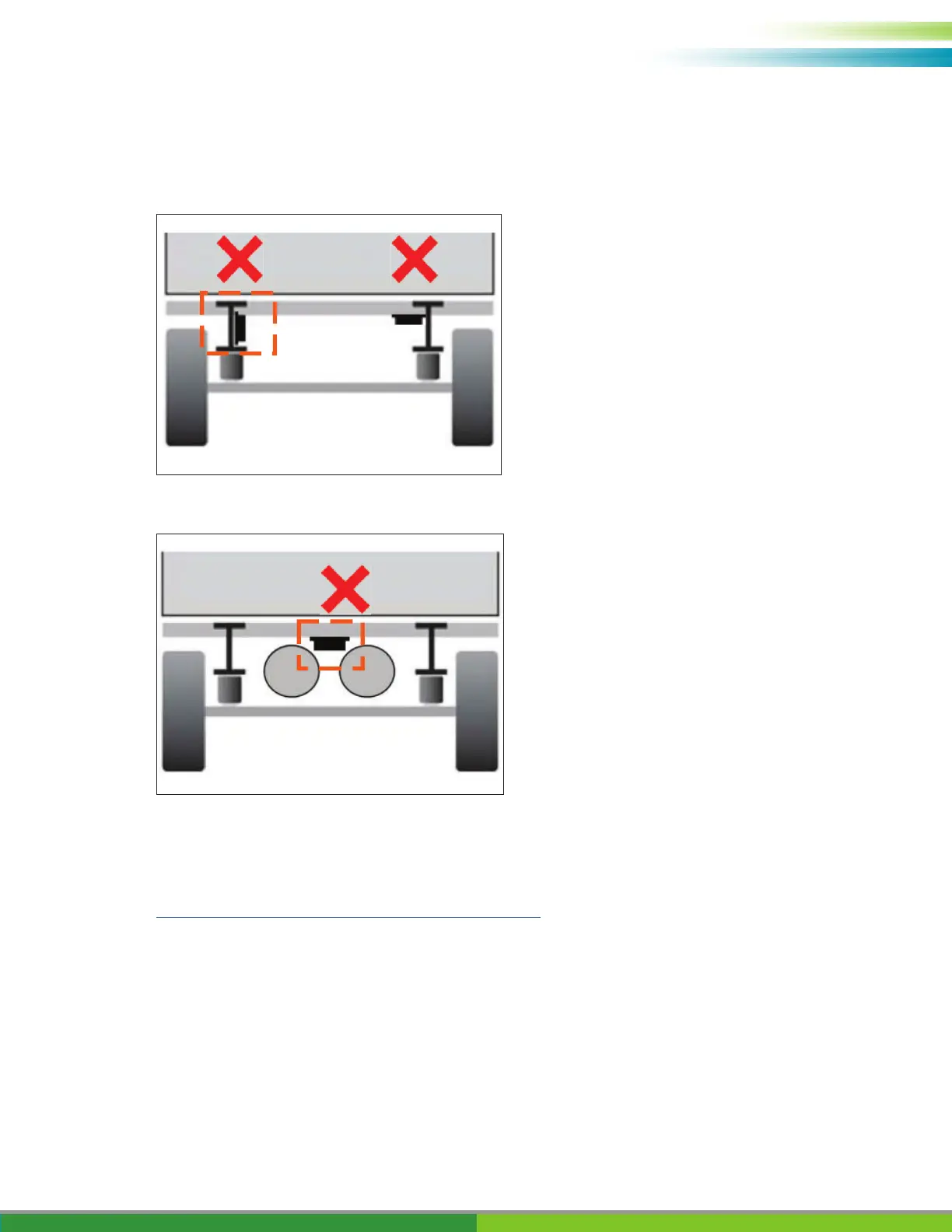

INCORRECT: Do NOT install the unit on or inside the trailer beams.
4019853a
INCORRECT: Do NOT install the unit above other components (e.g., air tanks, etc.). The unit requires a
clear view to the ground.
4019854a
6.5.2 Installation Instructions for Cables
The general installation instructions to be observed for cables and connectors can be downloaded from:
http://inform.wabco-auto.com/intl/drw/9/4490000000.pdf.
After connecting all hardware to TRAILERCAST with Battery, ZF recommends using cable ties to relieve
tension from the connectors.
