Fastening TRAILERCAST with Battery
7 Fastening TRAILERCAST with Battery
In case the installation includes a TPMS system (connecting to the internal sensors), an installation bracket
required.
Always install the TRAILERCAST with Battery unit in one of the recommended positions. (See General
recommendations for TRAILERCAST with Battery on p. 14.)
Always verify that sufficient GPS coverage is guaranteed and a good GPS position has been received
using (Section 14 Checking the Installation,
page 38). Check this for every installation!
Please observe the following recommendations:
Install the unit centered between the wheels (in the middle of the axle).
Make sure that the unit has clear view to all wheels (not obstructed by other components).
Install the unit at a max. distance of 2.3 m from the center of any of the wheels.
Install the unit at around 70 cm from the ground.
7.1 Fixing the bracket to the Trailer
Screw the bracket onto the trailer.

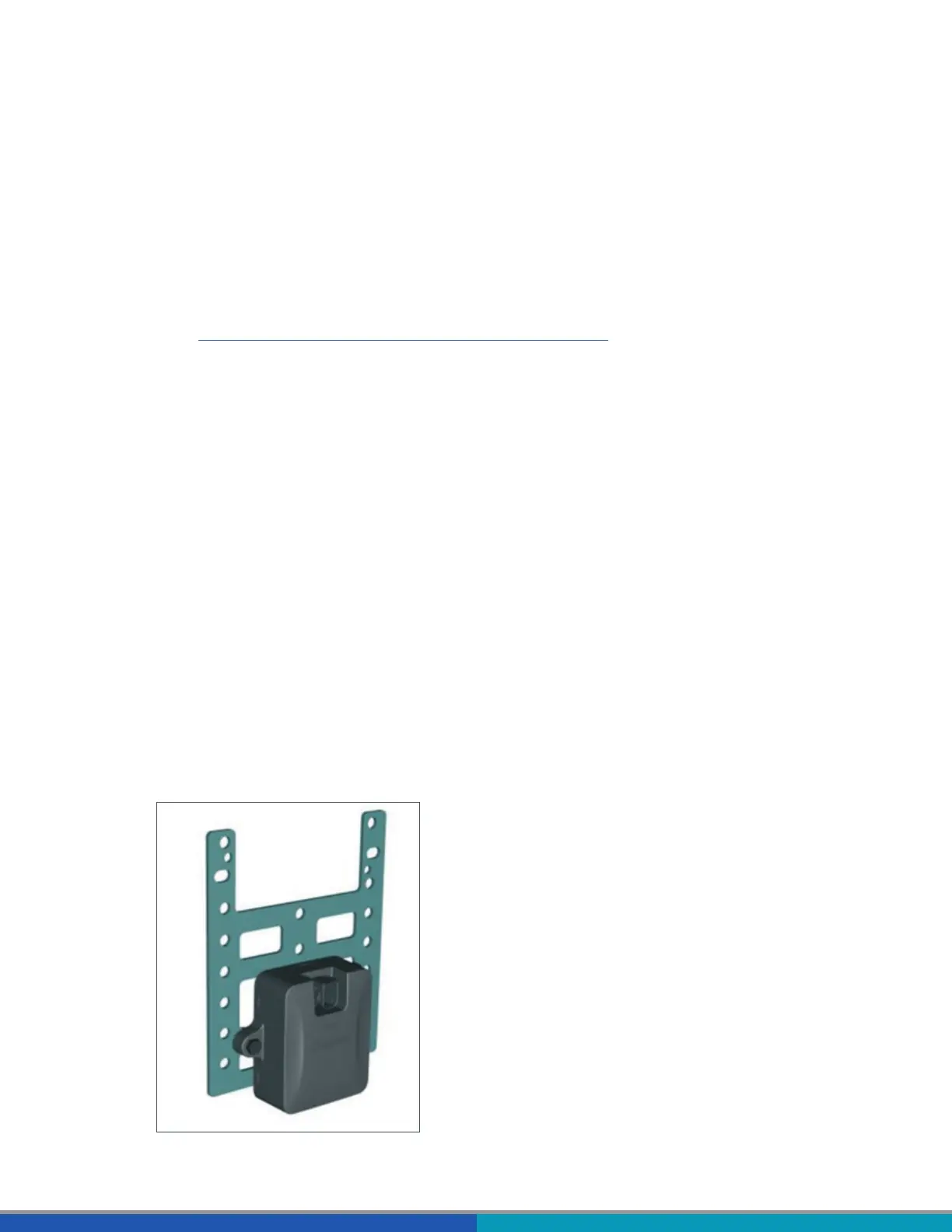

7.2 Fixing the TRAILERCAST with Battery to the Bracket
Use hexagon head M8 x 1.25. class 8.8 bolts, nuts and washers (not included) treated for the applicable
environment to mount the TRAILERCAST with Battery unit on the bracket.
Tighten with a maximum torque of 12.5 Nm.
Make sure that the unit is positioned with the connector on top, facing the underside of the trailer.
