WABCO iABS Subsystems
10 WABCO iABS Subsystems
10.1 Hardware Connection

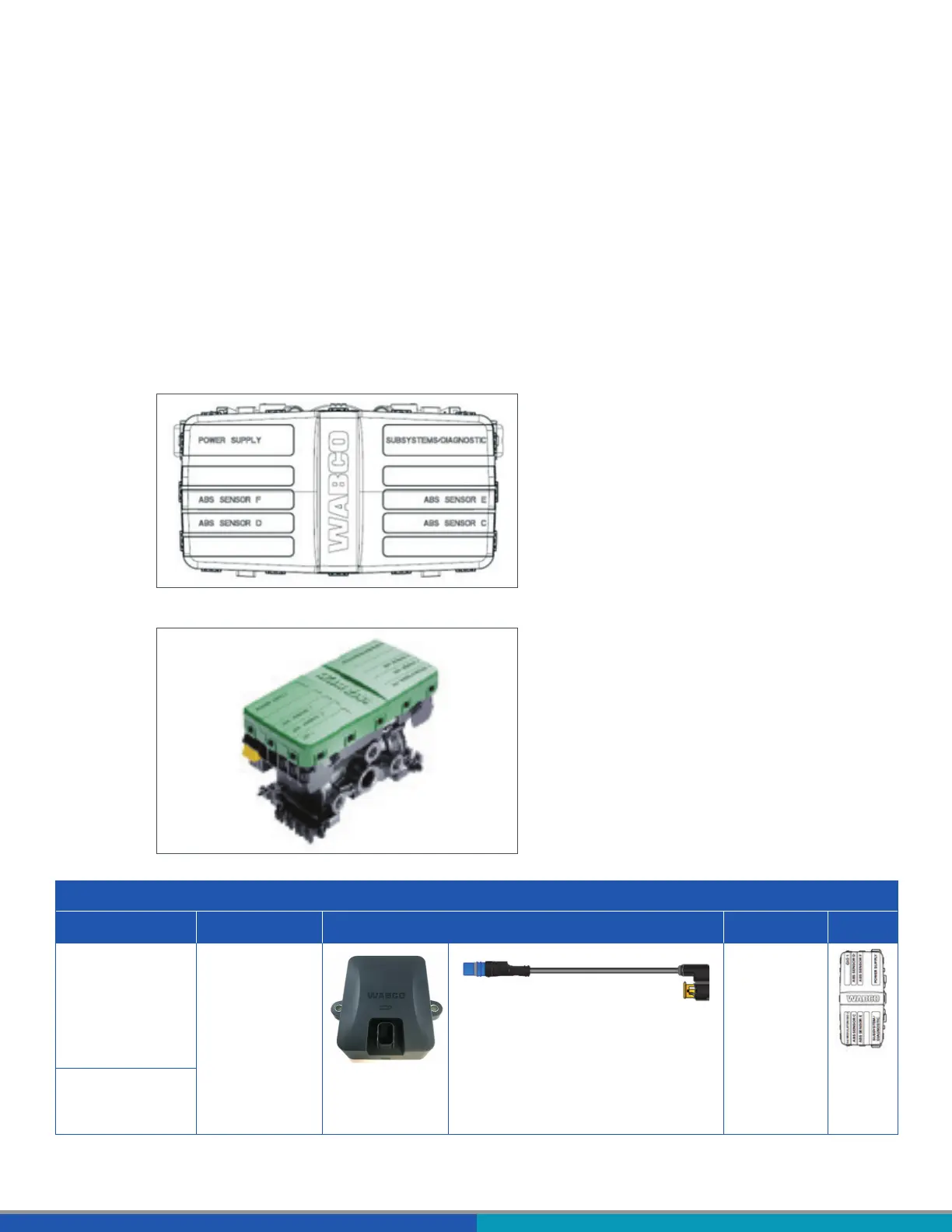

10.1.1 iABS 1M Premium/2M Standard/2M Premium
In case of a modulator 1M premium (400 500 350 0) or 2M standard (400 500 420 0/400 500 425 0) or 2M
premium (400 500 430 0), you can connect TRAILERCAST with Battery to the modulator SUBSYSTEMS
port using the iABS connection cable.
The connector on the iABS unit remains the same for all cables.
4019749a
iABS STANDARD OR iABS PREMIUM 400 500 350 0/ 480 500 420 0/ 480 500 425 0/ 480 500 430 0
Conguration Cable(s) Connections iABS port
1. iABS
Premium/
Standard
449 943 050 0
4019761a
Subsystems
4019862a
2. TRAILER-
CAST with
Battery
