34
Assembly of the Internal Sensor SMS
13.2 Preparing the Installation
See Section 13.3 Installation of the Internal Sensor, page 34, https://www.wabco-customercentre.com/
catalog/docs/8150102293.pdf.
1. Jack up the vehicle at the corresponding wheel positions.
2. Remove the wheel.
3. Use a suitable assembly device to remove the tire.
󰀩
that is required.

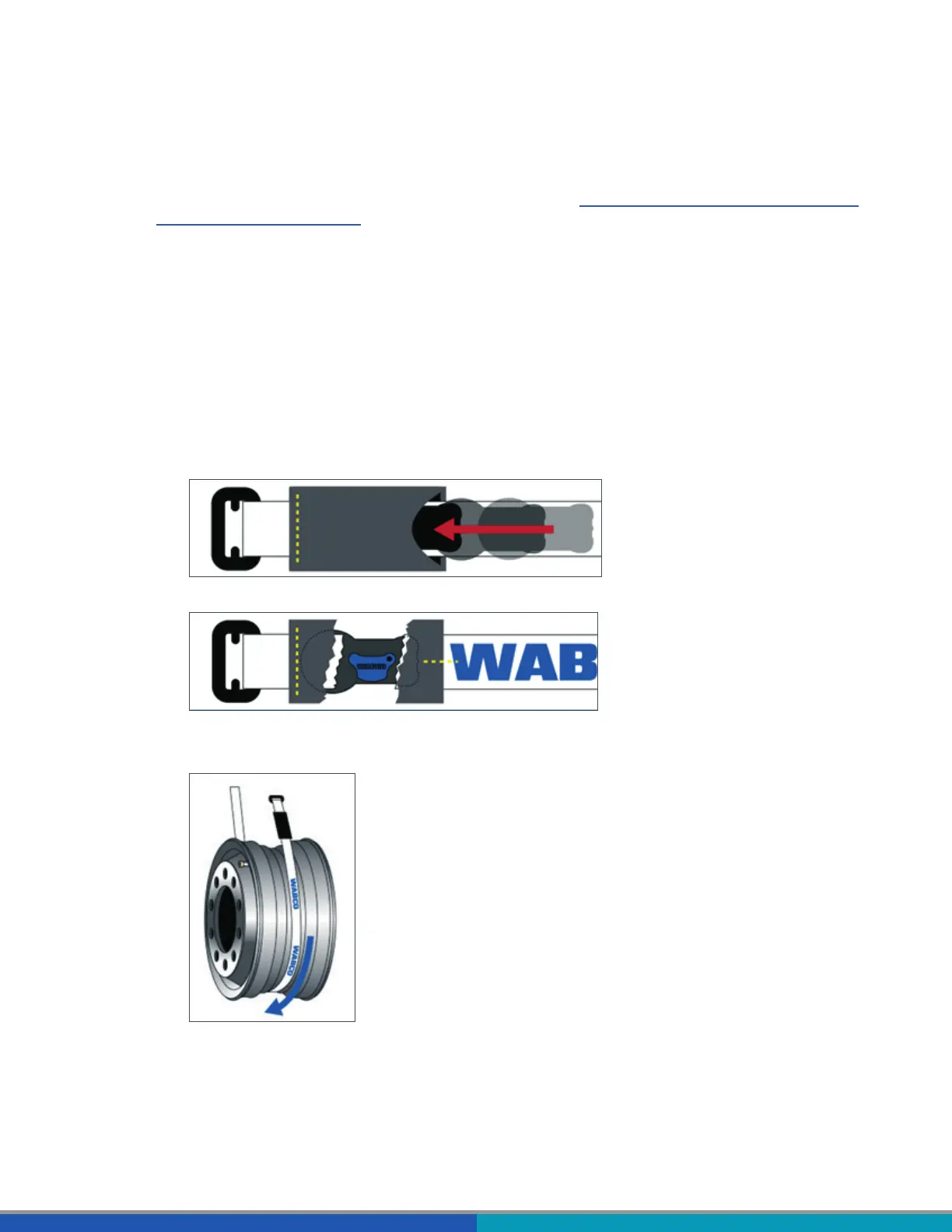

13.3 Installation of the Internal Sensor
1. 
pocket provided.
Inside (unmarked)
Outside (marked)
2. Guide the fastening strap through the center of the drop center and once around the rim.
