Installation – TRAILERCAST with Battery Position
6.5 Alternative Installation for TRAILERCAST with Battery:
Between Axle 1 and 2, Connector Upwards and to the Front of
the Trailer
In case the installation includes a TPMS system (connecting to the internal sensors), an installation

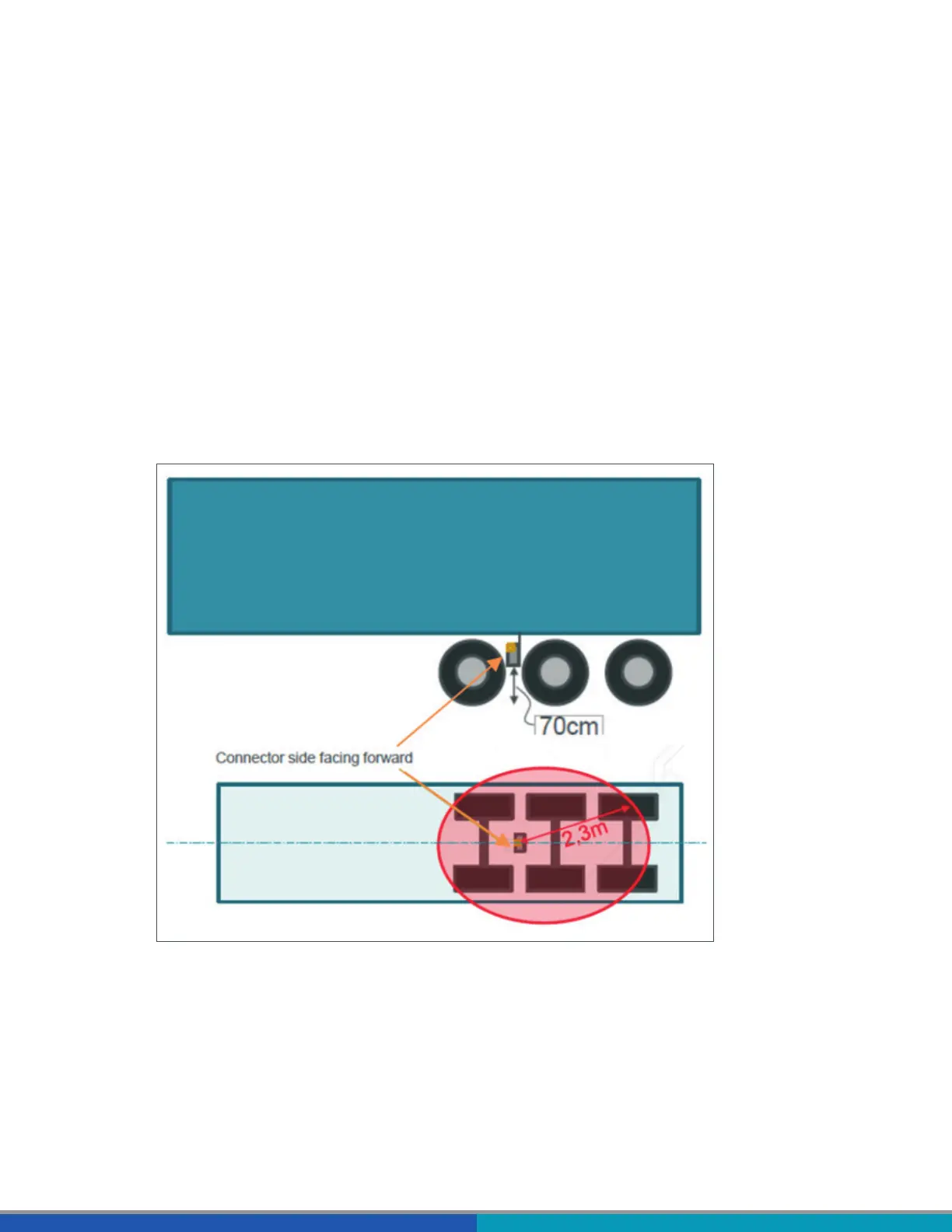

Install the unit between axle 1 and 2, with the connector facing towards front of the trailer.
Make sure that the unit is placed with the connector on the upper side.
Install the unit at around 70 cm from the ground.
Install the unit centered between the wheels (in the middle of the axle).
Install the unit at a max. distance of 2.3 m from the center of any of the wheels.
If possible, make sure that the unit has a clear view to all wheels (not obstructed by other components).
