WABCO iABS Subsystems

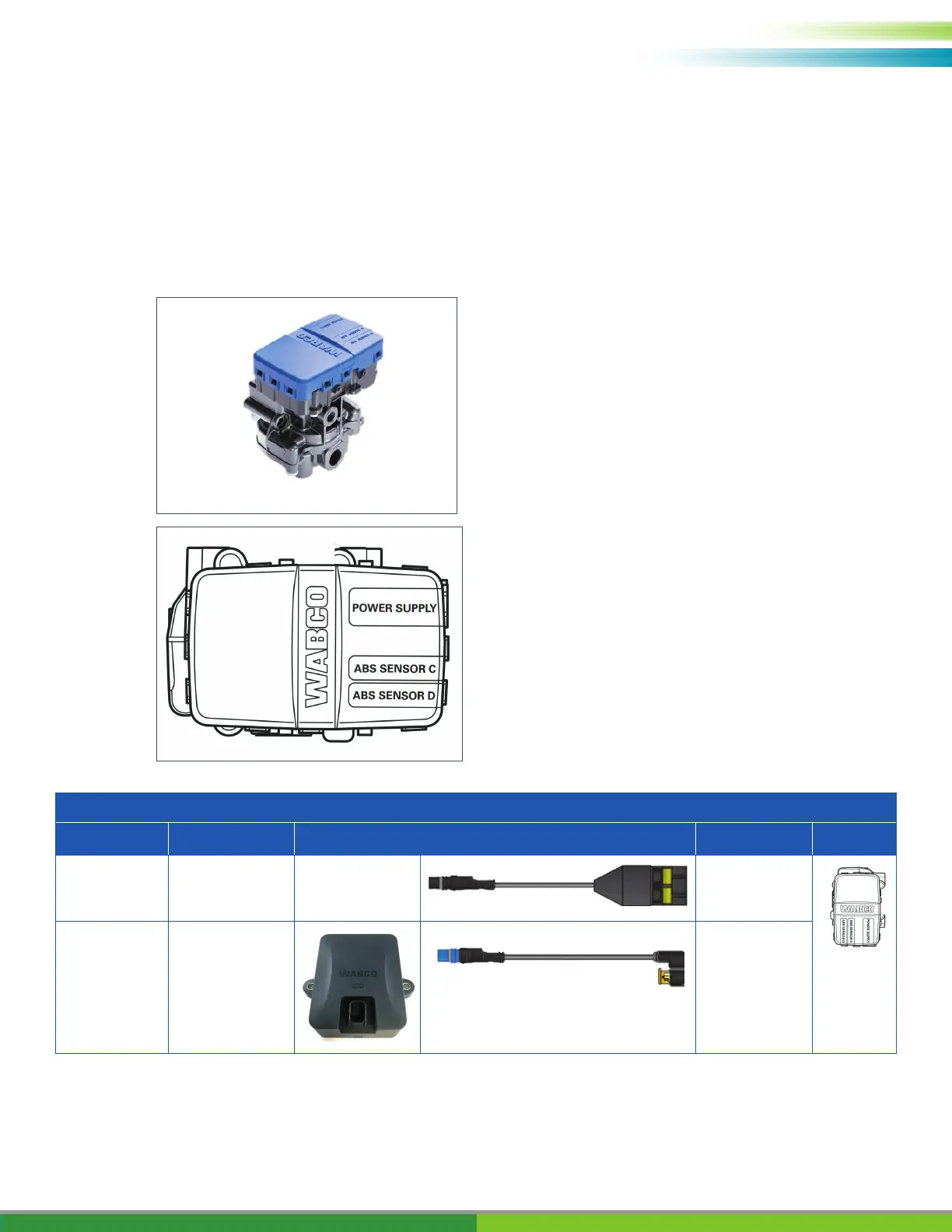

10.1.2 iABS 1M standard (400 500 320 0)
In case of a modulator 1M standard (400 500 320 0), since SUBSYSTEMS port is not available on the
modulator, a power hub cable (894 600 151 2) which includes POWER and SUBSYSTEMS ports, can be
used while connecting it to the power port of the modulator.
You can connect the TRAILERCAST with Battery to the SUBSYSTEMS port on the hub cable using the
iABS connection cable.
4019745a
iABS STANDARD OR iABS PREMIUM 400 500 320 0
Conguration Cable(s) Connections iABS port
1. iABS
Premium/
Standard
894 600 151 2
4019764a
Power Hub
Cable goes
to Power port
2. TRAILER-
CAST with
Battery
449 943 050 0
4019761a
TRAILER-
CAST cable
goes to hub
cable SUB-
SYSTEM
port
