9.28 Installing the Engine
Prerequisites Machine OFF and engine cool.
Procedure Follow the procedure below to install the engine.
1. Position the engine into the frame.
2. Reconnect the exhaust (a).
3. Apply Loctite 243 to the screws and secure the engine to the frame. Torque the screws
to 44 Nm (32 ft.lbs.).
4. Disconnect the harness (b) and the wiring (c).
5. Reconnect the choke cable (d).
6. Secure the oil drain hose (e) with new wire ties.
7. Reconnect the fuel line (f).
This procedure continues on the next page.

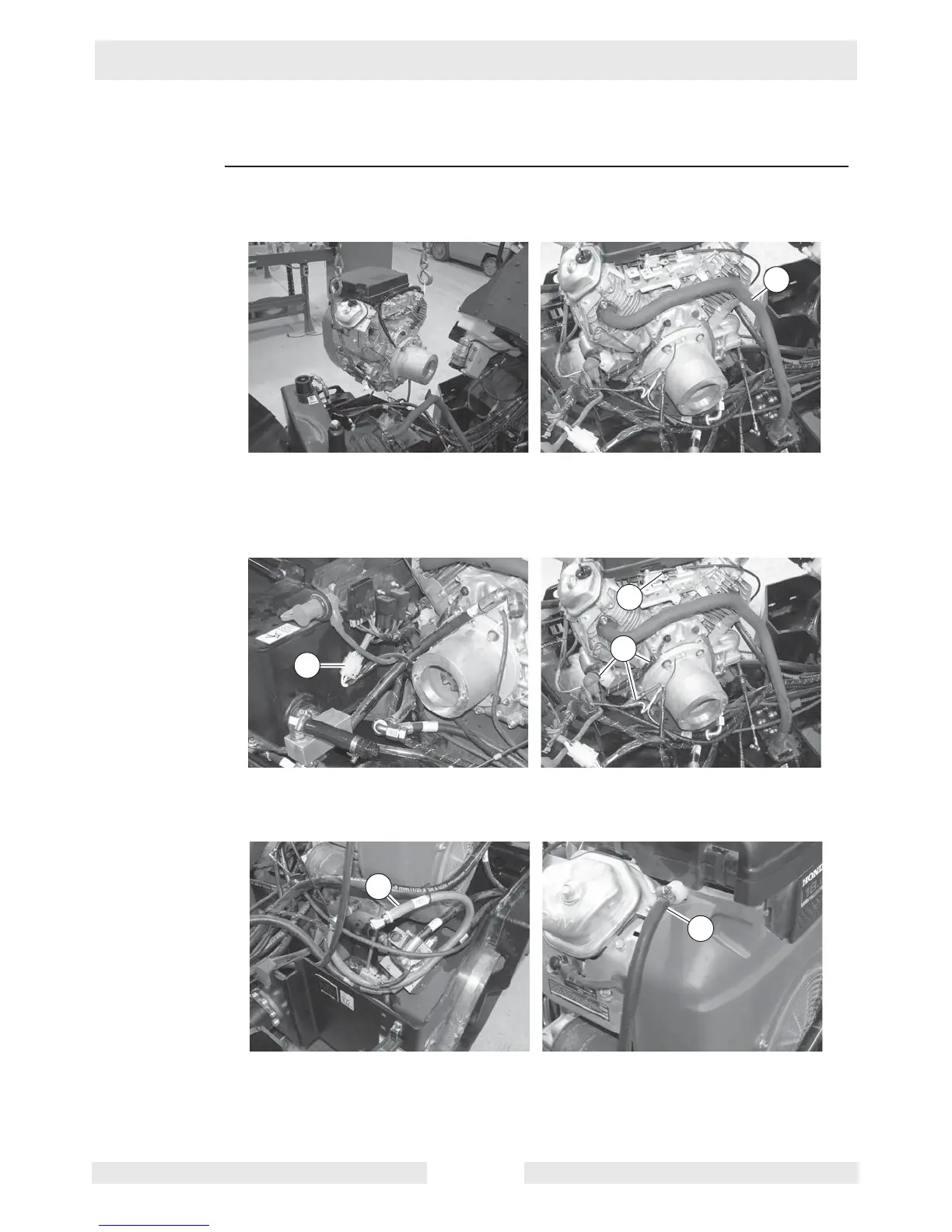

wc_gr004178
