RD 12/RD 12A Disassembly & Assembly
wc_tx000671gb.fm 97

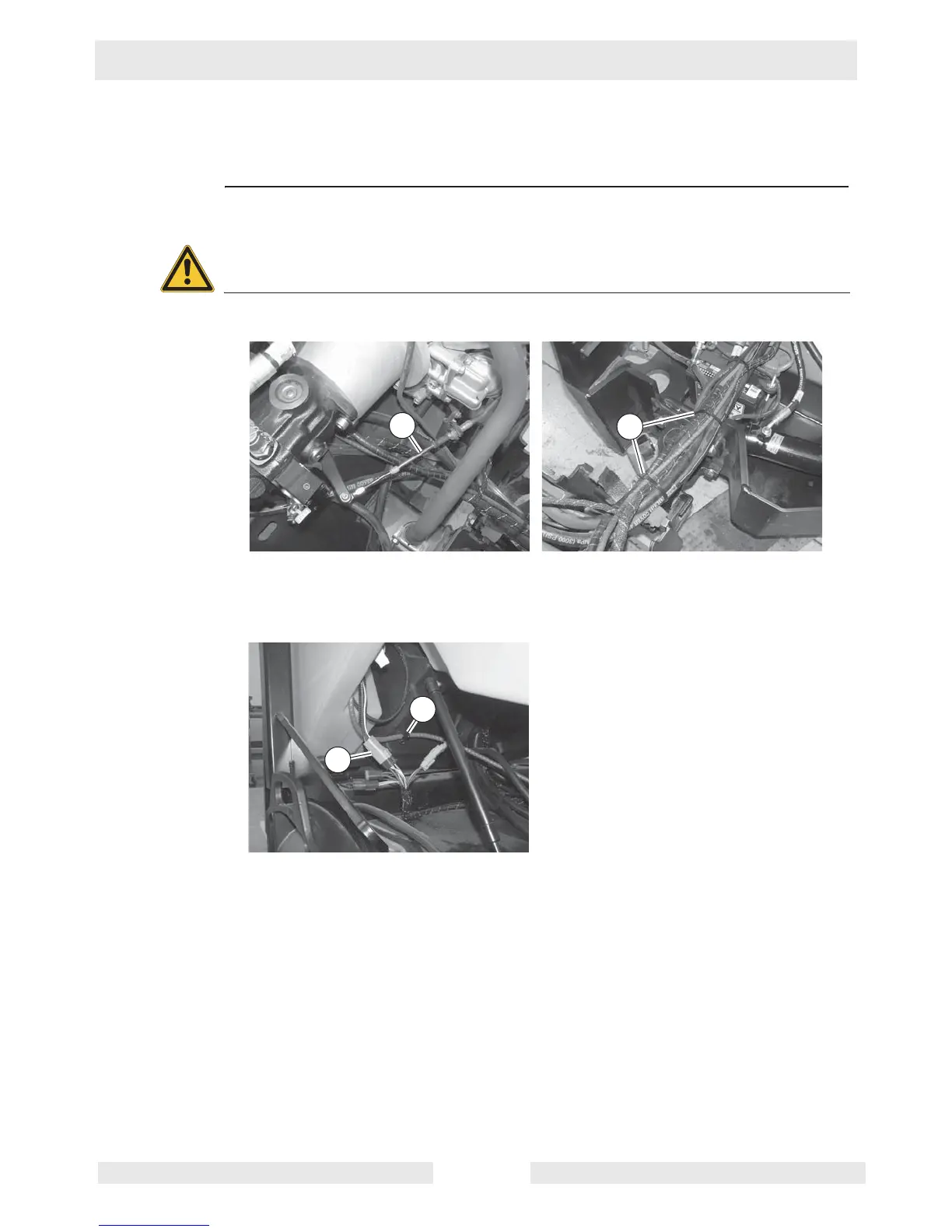

9.21 Removing the Control Cable and Control Lever
Prerequisites Machine OFF and engine cool
Seat platform in raised position
Procedure Follow the procedure below to remove the control cable and the control lever.
1. Disconnect the control cable (a) from the drive pump.
2. Cut the wire ties (b) that secure the hoses, wires, and cables. Maneuver the cable
around the engine so that it is free up to the control lever.
3. Disconnect the wiring at the connector (c).
4. Remove the cable clamp (d).
This procedure continues on the next page.
CAUTION! Burn hazard. The engine exhaust pipes are extremely hot while the
engine is running and for a period of time after the engine has shut down.
f Allow the exhaust pipes to cool before performing this procedure.
wc_gr004189
a
b
wc_gr004190
c
d
To Next Page
