Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 118
9.34 Installing the Fuel Tank
Prerequisites Platform in upright position. See section Rear Frame Access.
Procedure Follow the procedure below to install the fuel tank.

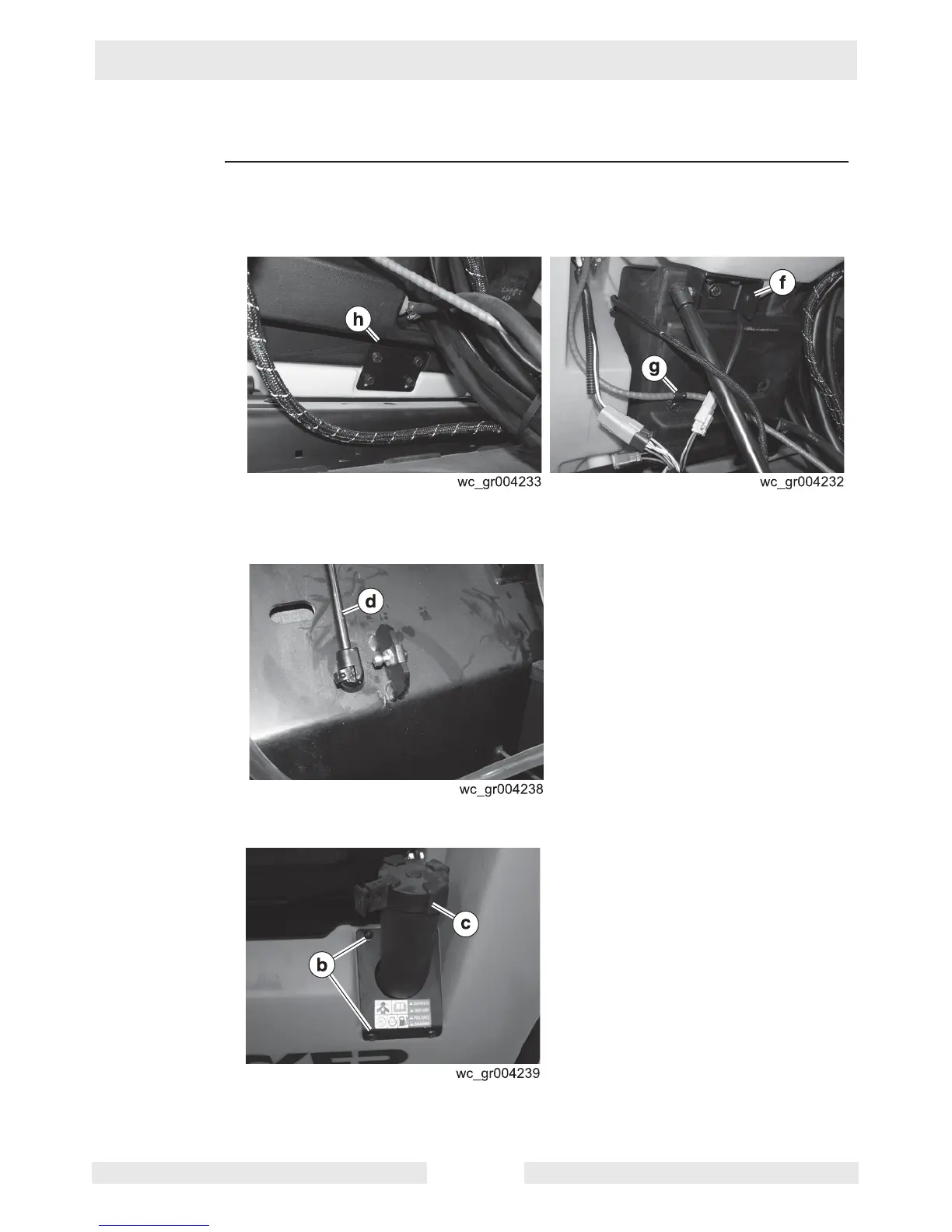

1. Route the fuel level sensor wiring (i) around the control lever side of the fuel tank. Then,
position the fuel tank into the water tank and secure it with the mounting plate (h). Con-
nect the fuel level sensor to the harness.
2. Install the gas strut brackets (f) to the water tank and the fuel tank.
3. Install the cable clip (g).
4. Connect the fuel line (i) to the fuel tank.
5. Connect the gas struts (d).
6. Install the screws (b) that secure the fuel spill guard. Then, re-install the fuel cap (c).
The procedure to install the fuel tank is now complete.
